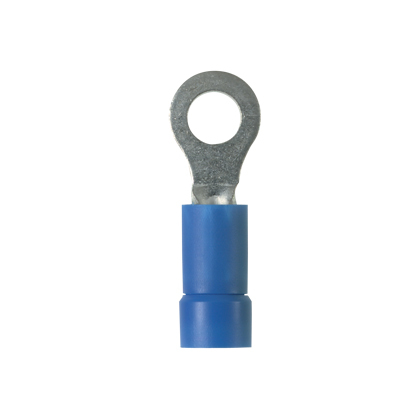

PV14-38R-L Pan-Term Type PV-R Loose Piece Ring Terminal, 14 AWG Conductor, 1.21 in L, Brazed Seam/Funnel Entry/Insulation Support/Internal Serration Barrel, Copper, Blue
- MFR:
- Panduit
- MFR #:
- PV14-38R-L
- UPC:
- 074983801268
- Item #:
- 14647
PV14-38R-L Pan-Term Type PV-R Loose Piece Ring Terminal, 14 AWG Conductor, 1.21 in L, Brazed Seam/Funnel Entry/Insulation Support/Internal Serration Barrel, Copper, Blue
- MFR #:
- PV14-38R-L
- UPC:
- 074983801268
- Item #:
- 14647
Ring Terminal, 16 14 AWG, 3/8 stud size, vinyl insulated, funnel entry, standard package.
Manuals & Documentation
| Catalog Number | PV14-38R-L |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Blue |
| Connection | Funnel Entry |
| Enclosure | Ring shape |
| Finish | Tin-Plated |
| Insulation | Vinyl |
| Material | Copper |
| Standard | UL Listed 587H E52164, CSA Certified LR31212 |
| UPC | 074983801268 |
| GTIN | 00074983801268 |
| Item Type | Ring Terminal |
| Size | 3/8" |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #14 AWG |
