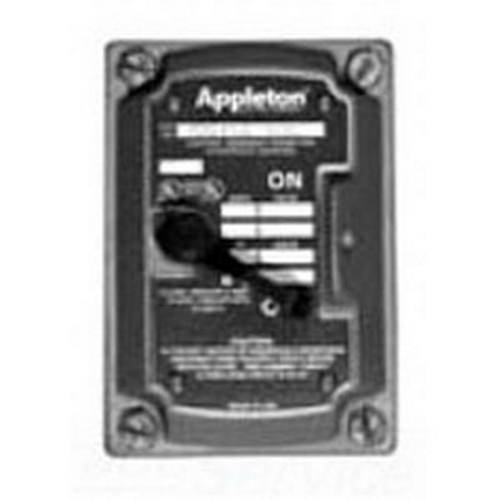

UNILETS Front Cover, Number Of Poles: 1, Material: Malleable Iron, Standard: Class I, Division 1, Groups C, D, Class I, Division 2, Group B, C, D, Class II, Division 1 And 2, Groups E, F, G, Class III, UL 894, UL 1203, UL E10523, E81751, NEMA 3, 7CD, 9EFG, For Factory Sealed Front Operated Tumbler Switches

Manuals & Documentation
Catalog Number EDSF12
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Factory Sealed Front Operated Tumbler Switches
Special Features Enclosures have external mounting lugs for ease of mounting; Smooth, rounded integral bushing in each hub protects conductor insulation; Enclosures furnished with internal ground screw; Smooth ground mating surfaces assure flame-tight joint between cover and mounting enclosure; Stainless steel hex head cap screws for attaching cover to mounting enclosure; Enclosures furnished with internal ground screw; Designed to prevent arcing of enclosed switches in ignitable atmospheres during connect and disconnect operation of lighting and light power loads; For use in classified areas where ignitable vapors, gases or highly combustible dusts are present; For installation in chemical plants, petrochemical plants, refineries, other process industries
Standard Class I, Division 1, Groups C, D, Class I, Division 2, Group B, C, D, Class II, Division 1 And 2, Groups E, F, G, Class III, UL 894, UL 1203, UL E10523, E81751, NEMA 3, 7CD, 9EFG
UPC 781381815857
GTIN 00781381815857
Item Type Front Cover
