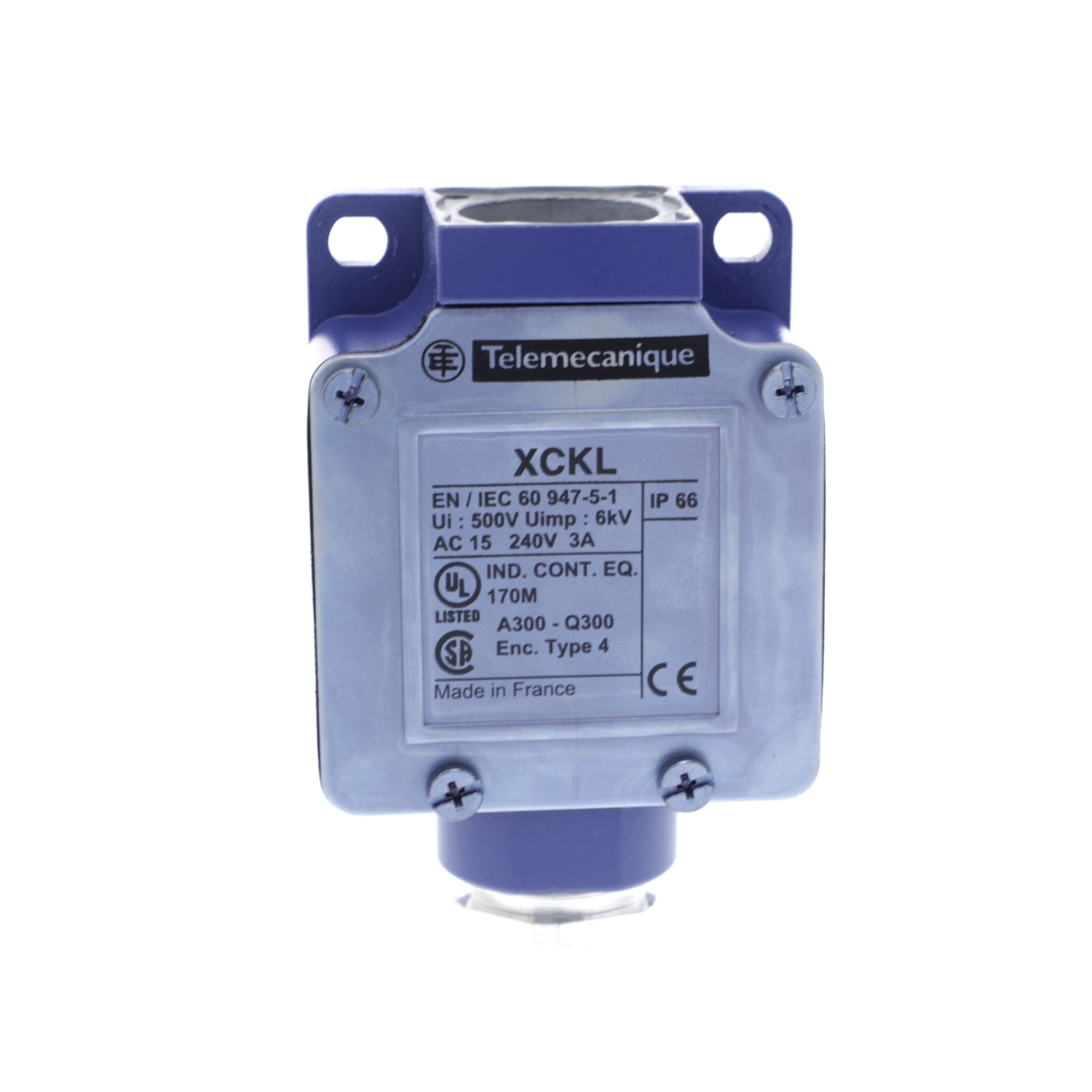

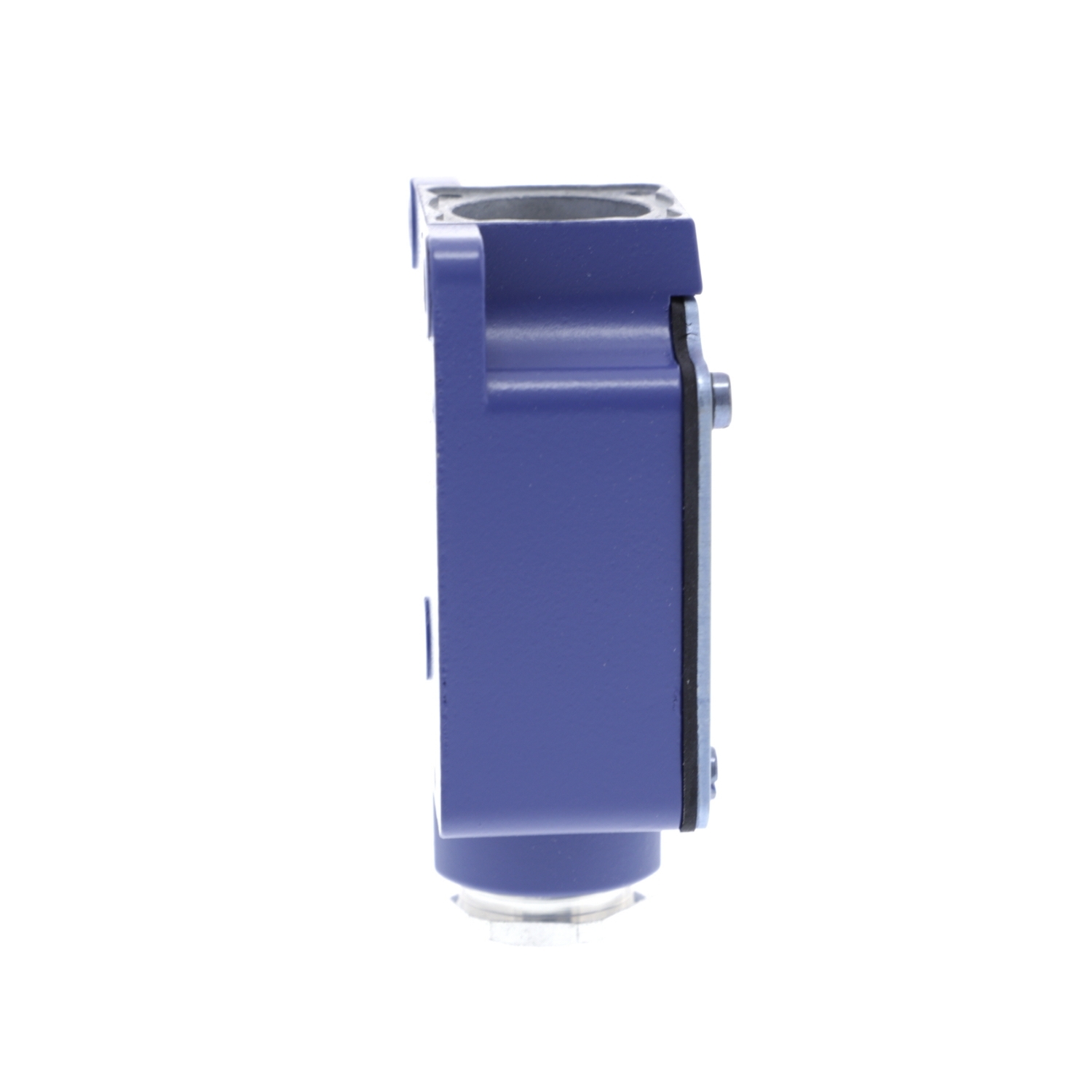

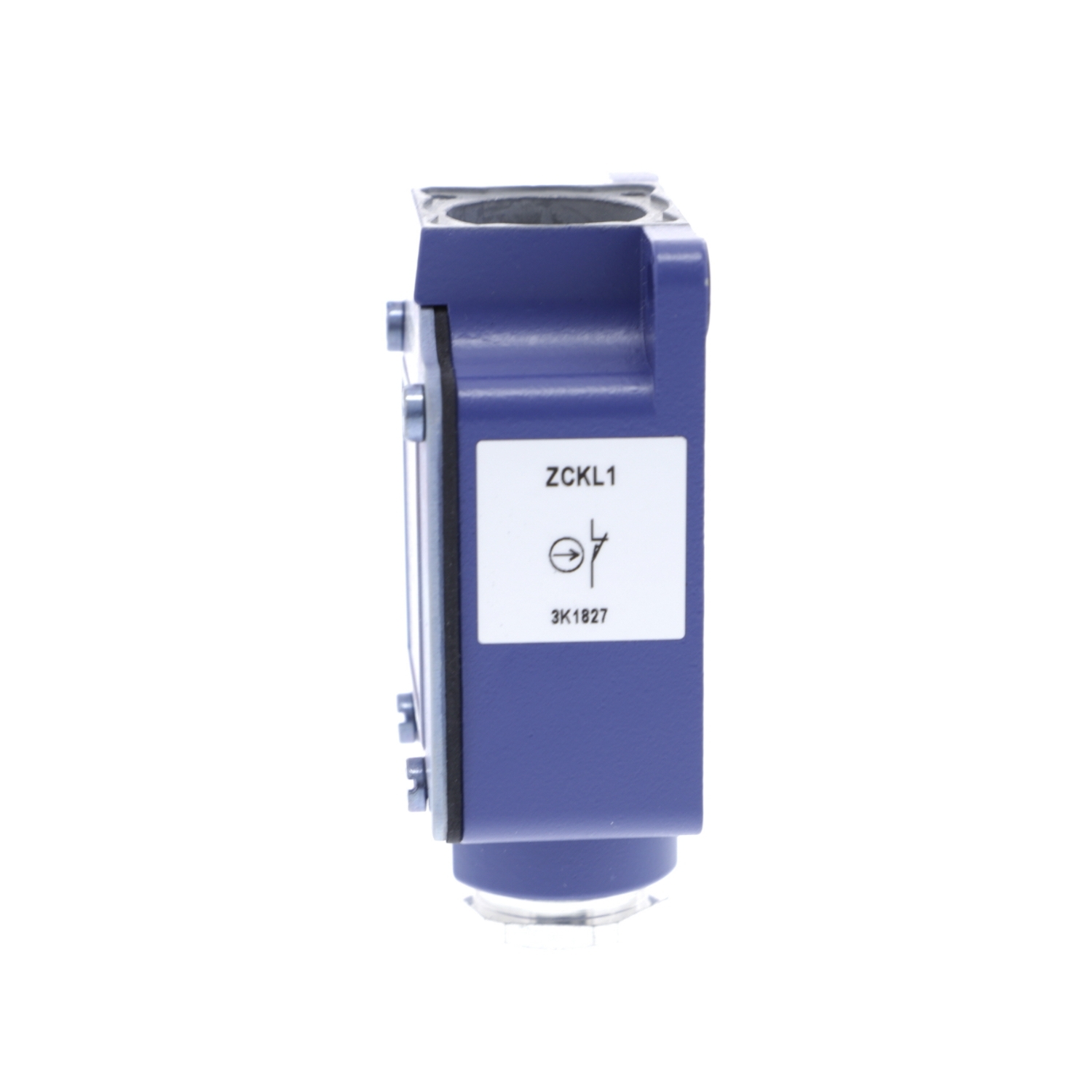

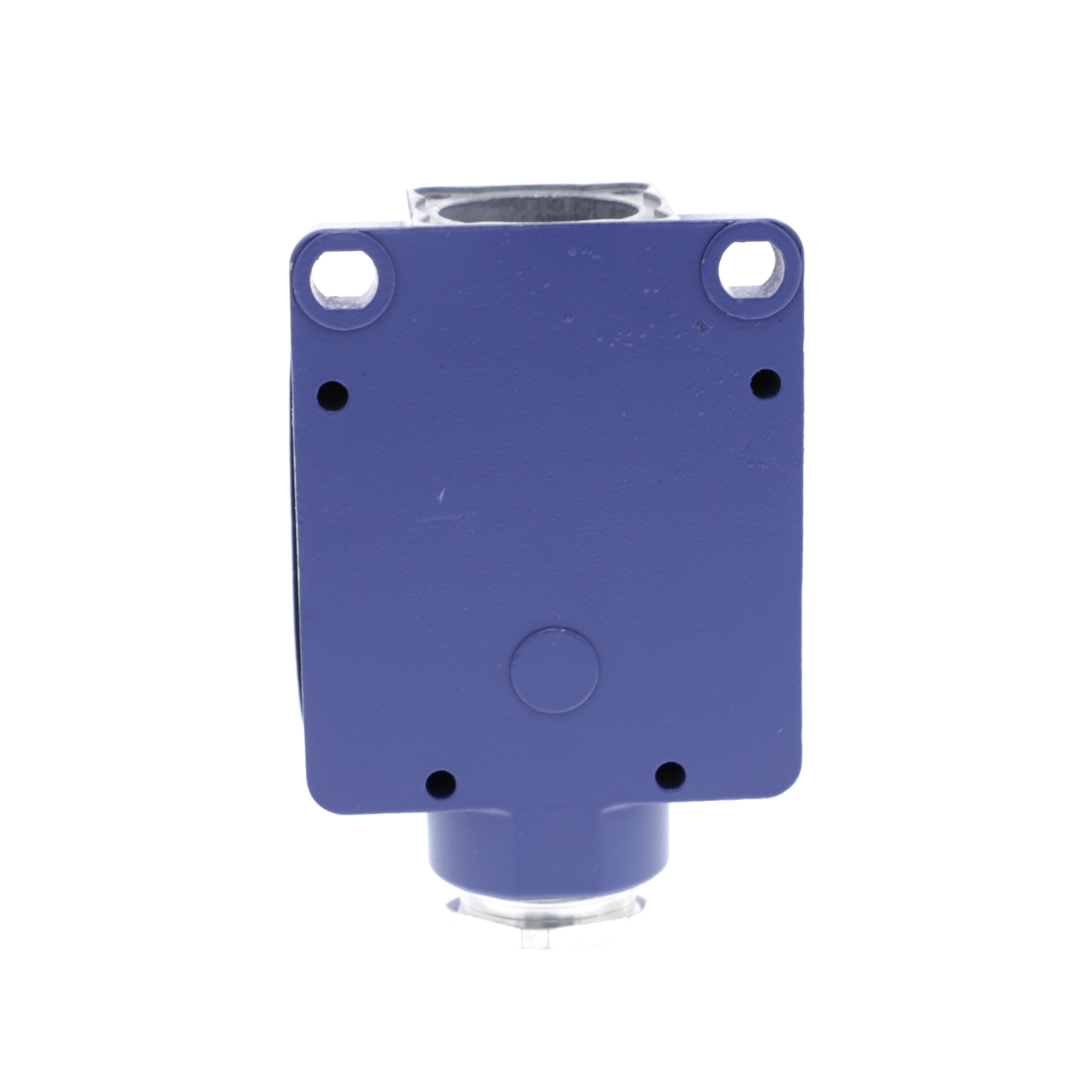

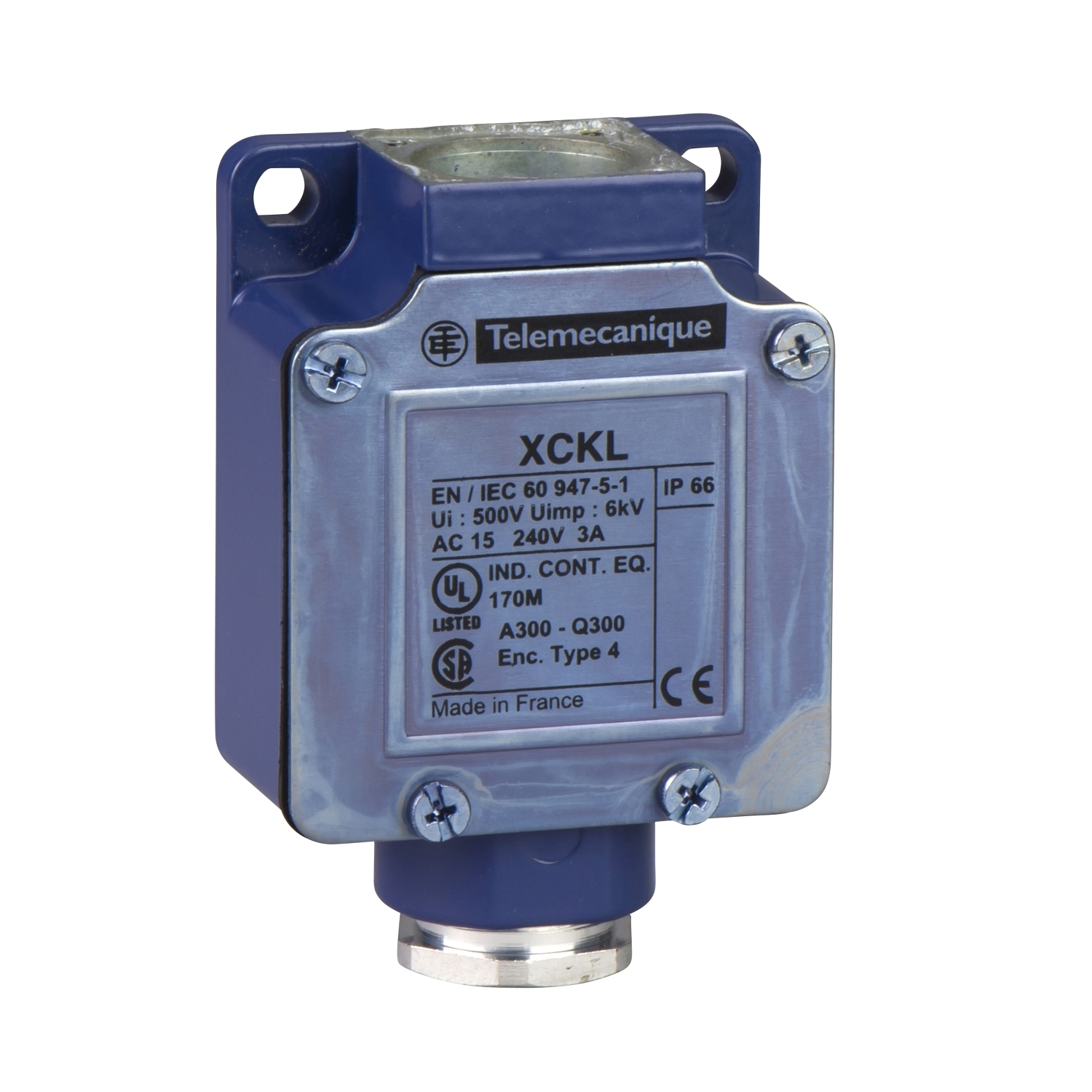

ZCKL1 OsiSense XC Fixed Standard Limit Switch Body, 1NO-1NC Contact, For Use With XCKJ and ZCKJ Limit Switch, 10 A at 500 V AC Contact, IP66 Enclosure
- MFR:
- Telemecanique Sensors
- MFR #:
- ZCKL1
- UPC:
- 785901646662
- Item #:
- 146203
ZCKL1 OsiSense XC Fixed Standard Limit Switch Body, 1NO-1NC Contact, For Use With XCKJ and ZCKJ Limit Switch, 10 A at 500 V AC Contact, IP66 Enclosure
- MFR #:
- ZCKL1
- UPC:
- 785901646662
- Item #:
- 146203
This ZCK body/contact assembly with connector has a Zamak body. It has 1 x NO + 1 x NC snap action contacts and multiple Pg 13.5 cable entries. It can be matched with any head, levers or actuator from the XCKD, XCKP and XCKT ranges.
Manuals & Documentation
| Catalog Number | ZCKL1 |
| Manufacturer | Telemecanique Sensors |
| Brand | Telemecanique |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Action | Snap action |
| Amperage Rating | 10 |
| Application | XCKL |
| Connection | Screw-clamp terminals 1 x 0.34...2 x 1.5 mm² |
| Contact Configuration | 1 NC + 1 NO |
| Enclosure | IP66 |
| Number of Poles | 2 |
| Operating Cycles | 5000000 CYCLES, DC-13 120 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 24 V, 13 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13 48 V, 9 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C |
| Special Features | FIXED |
| Standard | IK05,IP66 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=879818&lang=en-us |
| UPC | 785901646662 |
| GTIN | 03389110646665 |
| Item Type | Limit switch body |
| Size | 1.18 |
| Environmental Conditions | STANDARD ENVIRONMENT |
| Operating Temperature | -25-70 A Degrees C STANDARD ENVIRONMENT |
| Voltage Rating | 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 APPENDIX A |
