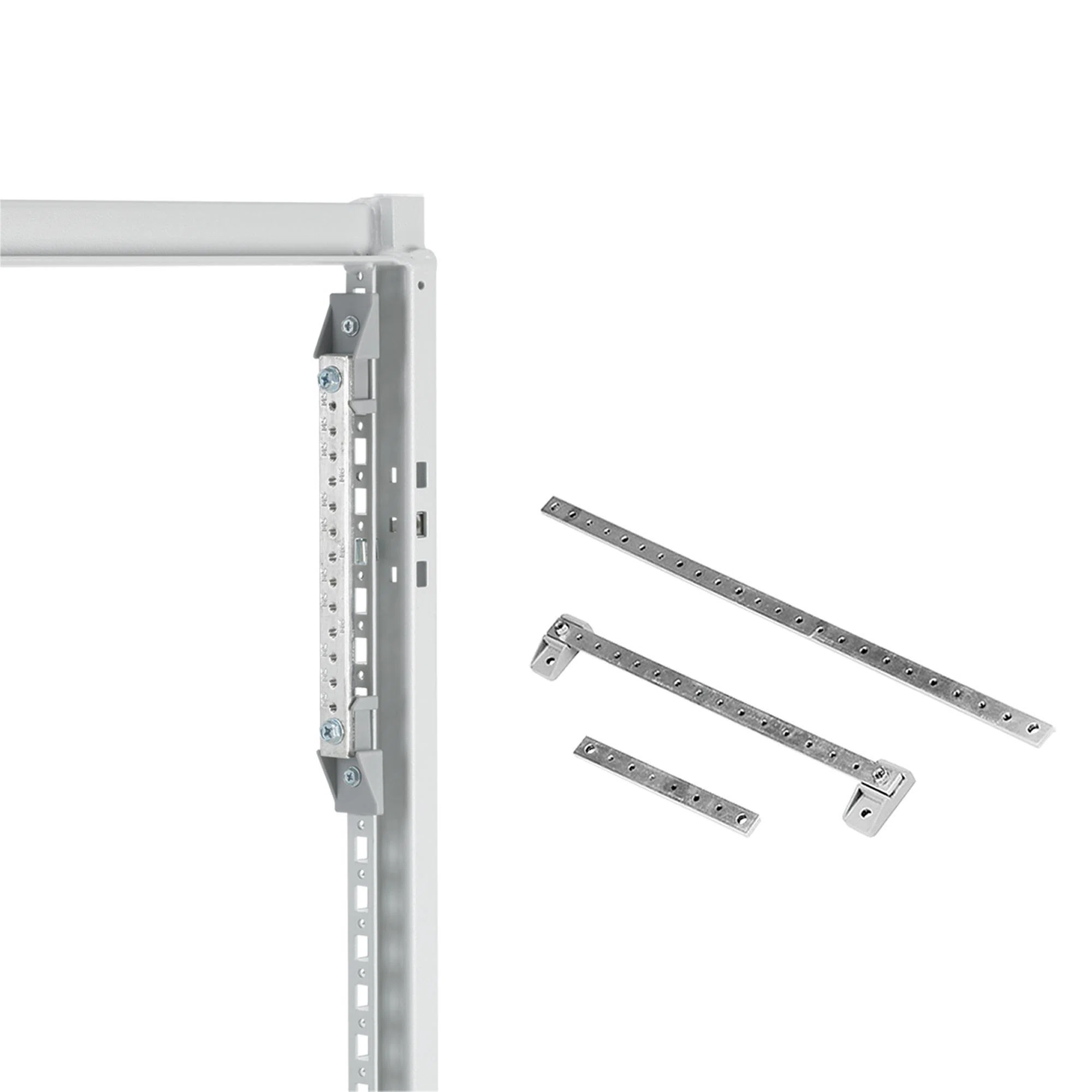

Three sizes of grounding bars and insulated mounting brackets are available. Bars are plated copper with M6 and M5 tapped holes to provide a common point for grounding equipment. Fits all enclosures if mounted vertically. See table for horizontal mounting.

Manuals & Documentation

Features

  • Bars are plated copper with M6 and M5 tapped holes; mounting bracket is insulated
  • Fits all enclosures if mounted vertically; for depth-mounting, 200mm length fits 400mm deep frame, 400mm fits 600mm, and 600mm fits 800mm
Manufacturer Part Number PGS2K
Brand nVent HOFFMAN
Manufacturer nVent
UPC 783510459796
Country Of Origin MX
Dimensions 7.87 in L
Material Copper
Alternative Part Number 8288788
Manufacturer Item Status Discontinued
Country USA/Canada
Standards Approvals UL File NO E61997
