Appleton

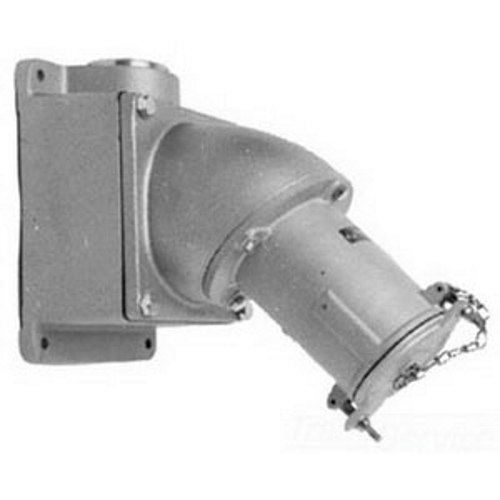

3-Phase Grounding Style 1 Reverse Service Pin and Sleeve Receptacle With AJA Mounting Box, 600/250 VAC/VDC, 200 A, 3 Poles, 3 Wires

MFR:
Appleton Electric
MFR #:
AJA20033200RS
UPC:
781381295178
Item #:
144473

Powertite Grounding Style 1 Receptacle With AJA Mounting Box, Number Of Poles: 3, Number Of Wires: 3, Wire Size: 2/0 AWG - 250 MCM, Amperage Rating: 200 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3 PH, Material: Co

Manuals & Documentation
Catalog Number AJA20033200RS
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 200
Application For AP20033E Plug
Connection Pressure Wire Terminal
Material Copperfree (4/10 Of 1 PCT Maximum) Aluminum
Mounting Surface
NEMA Rating 3, 3R, 4, 4X
Number of Poles 3
Number of Wires 3
Phase 3
Special Features For reverse service (generator applications); Grounding style: Shell only; Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus; Ideal for use on shipping docks, ports and other ship to shore applications; Suitable for use in locations where a weatherproof enclosure is required; Rough usage construction; Natural finish glass filled polyester insulating blocks; Wire recess diameter: 11/16 IN; Weatherproof spring door, raintight clamp cover
Standard UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11
UPC 781381295178
GTIN 00781381295178
Item Type Grounding Style 1 Receptacle With AJA Mounting Box
Temperature Rating -40 To 107 DEG C
Voltage Rating 600 VAC At 50 - 400 HZ, 250 VDC
Wire Size 2/0 AWG - 250 MCM
