Appleton

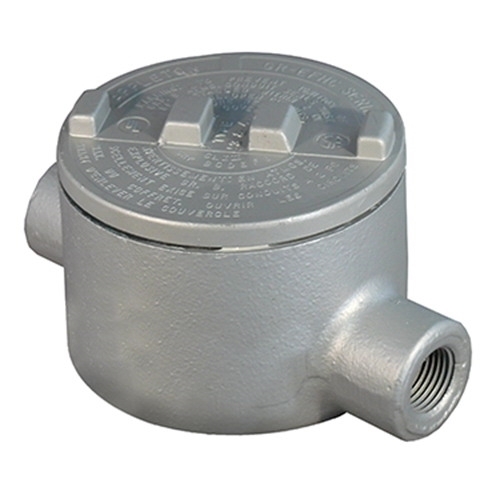

Type C Conduit Body, 1/2 inch, Malleable Iron, Triple-Coat (Zinc Electroplate/Chromate/Epoxy Powder Coat)

MFR:
Appleton Electric
MFR #:
GRC50
UPC:
781381436601
Item #:
143989

UNILETS Outlet Box, Number Of Outlet: 2, Material: Malleable Iron, Size: 1/2 IN, Cable Entry: (2) 1/2 IN GRC Hub, Cubic Capacity: 18 CU-IN, Knockouts: No, Cover Opening: 3.38 IN, Form Number: 1, Height: 3-3/4 IN, Width: 3-3/4 IN, Depth: 2-1

Manuals & Documentation

Features

  • Protects conductor insulation
  • Corrosion-resistant
  • Covers have pry notches for bar or wrench
Catalog Number GRC50
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Threaded Metal Conduit
Cable Entry (2) 1/2 IN GRC Hub
Cubic Capacity 18 CU IN
Knockouts No
Material Malleable Iron
Special Features Explosionproof, dust-ignitionproof; Malleable iron bodies have high tensile strength, ductility and provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with copperfree (4/10 of 1 PCT maximum) aluminum cover; Function as sealing fittings when used with sealing covers; Internally threaded body with externally threaded cover; Covers have pry notches for bar or wrench; Accommodate sealing, dome, hub and union hub covers and canopies; Standard O-rings provide raintight fit NEMA 3, 4; Internal ground screw standard; Smooth rounded integral bushing in hub box protects conductor insulation; Complies with a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance
Standard Class 1, Zone 1 And 2 IIA And IIB, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 013017 Certified, Class I, Division 1 And 2, Groups B, C, D Class II, Division 1 And 2, Groups E, F, G Class III
RoHS Indicator Contact Manufacturer
UPC 781381436601
GTIN 00781381436601
Item Type Outlet Box
Length 5.0000
Length UOM Inch
Width 5.2000
Width UOM Inch
Height 4.4000
Height UOM Inch
Weight 2.800
Weight UOM Pounds
Size 1/2
