Appleton

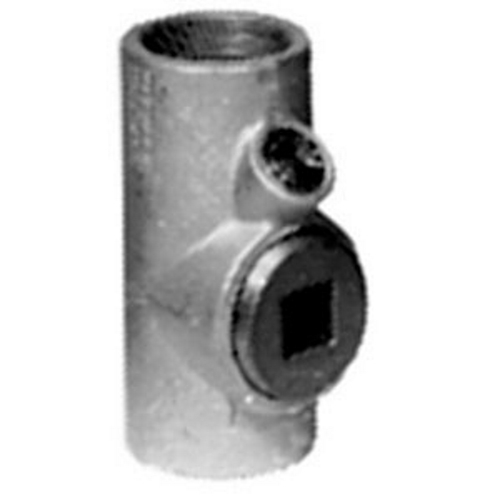

Conduit Sealing Fitting, Dust-Ignitionproof Explosionproof Raintight, Series: EY Series, 1 in, For Use With: IMC/Threaded Rigid Metallic Conduit, Malleable Iron, Triple Coated, 5.06 in L x 2.19 in W

MFR:
Appleton Electric
MFR #:
EYSEF100
UPC:
781381694308
Item #:
143935

UNILETS EY Series 40 PCT Expanded Fill Vertical And Horizontal Conduit Sealing Fitting, Size: 1 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Connection: Female Threaded, Turning R

Manuals & Documentation

Features

  • Explosion proof, dust-ignition proof and raintight
  • Smooth, rounded integral bushing in each hub
  • Accurately tapped, tapered threads for tight
  • Allow up to 40% conduit fill in compliance with the National Electrical Code (NEC)
Catalog Number EYSEF100
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Threaded Rigid Metal Conduit and IMC
Connection Female Threaded
Finish Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat)
Material Malleable Iron
Special Features For preventing passage of gases, vapors or flames from one portion of conduit system to another; Required in Class I, Division 1 and 2 locations within 18 IN of enclosures containing apparatus that may cause arcs, sparks or high temperatures; Required in Class I, Division 1 and 2 locations where 2 IN or larger conduit enters enclosure, fitting housing terminals, splices or taps; Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location; Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 IN or less conduit, seal must be located within 18 IN of either enclosure; Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in Class I, Division 2 locations; Explosionproof, dust-ignitionproof, raintight; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; A
Standard UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class I, Groups B, C, D; Class II, Groups E, F, G; And Class III
RoHS Indicator No
UPC 781381694308
GTIN 00781381694308
Item Type EY Series 40 PCT Expanded Fill Vertical And Horizontal Conduit Sealing Fitting
Length 6.5000
Length UOM Inch
Width 4.7000
Width UOM Inch
Height 3.1000
Height UOM Inch
Weight 2.930
Weight UOM Pounds
Size 1
