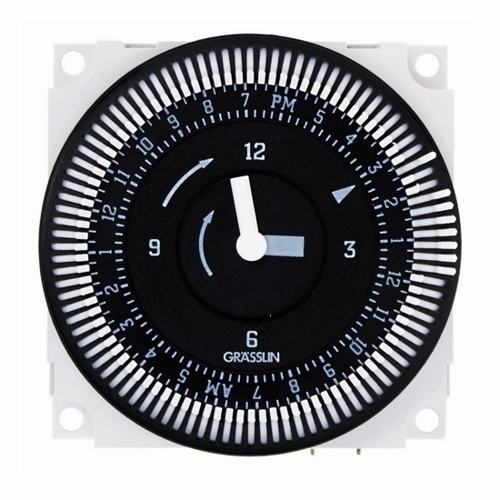

FM1STUZ-120U FM1, 15 min to 24 hr Setting, 120 V AC, 1 hp, 1CO 1 Form C SPDT Contact, 1 Poles
- MFR:
- Intermatic
- MFR #:
- FM1STUZ-120U
- UPC:
- 078275152816
- Item #:
- 14185
FM1STUZ-120U FM1, 15 min to 24 hr Setting, 120 V AC, 1 hp, 1CO 1 Form C SPDT Contact, 1 Poles
- MFR #:
- FM1STUZ-120U
- UPC:
- 078275152816
- Item #:
- 14185
The FM1 series timer modules are designed to be integrated inside of a machine control panel, circuit board, or other equipment. They are a simple and low cost alternative for applications that do not require more than 21 A or 2 HP, 240 VAC. The FM1 is designed for 24-hour or 7-day control or overriding a functional typical state of a heating, ventilation, refrigeration, lighting, security, or pump system. The FM1 series is ideal for 12, 24 VAC/VDC,120 or 208/240VAC single-phase general applications.
Manuals & Documentation
| Catalog Number | FM1STUZ-120U |
| Manufacturer | Intermatic |
| Brand | Intermatic |
| Country of Origin | Mexico |
| Made in USA | No |
| Action | SPDT |
| Application | HVACR, Lighting, Security, Circulating Pumps, Spas, OEM Applications |
| Connection | 1/4 IN Quick Connect |
| Contact Configuration | 1 NO/1 NC |
| Contact Rating | 21 AMP @ 120 - 250 VAC |
| Mounting | Panel Mount |
| Number of Poles | 1 |
| Special Features | Features: Noise Immune - Ideal for Robust Applications, True Clock Face Easy-to-Set, Compact Size |
| Standard | CE Certified, HVACR, cULus Recognized #10694, cCSAus Certified LR3730 |
| UPC | 078275152816 |
| GTIN | 00078275152816 |
| Item Type | Synchronous Electromechanical |
| Size | 2.36 HEIGHT X 2.36 WIDTH X 1.25 DEPTH IN, 60 HEIGHT X 60 WIDTH X 32 DEPTH MM |
| Operating Temperature | -40 to +185 DEG F, -40 to +85 DEG C |
| Timing Range | 15 MIN - 24 HR |
| Voltage Rating | 120 |
| Wattage | 1350 W |
