Square D

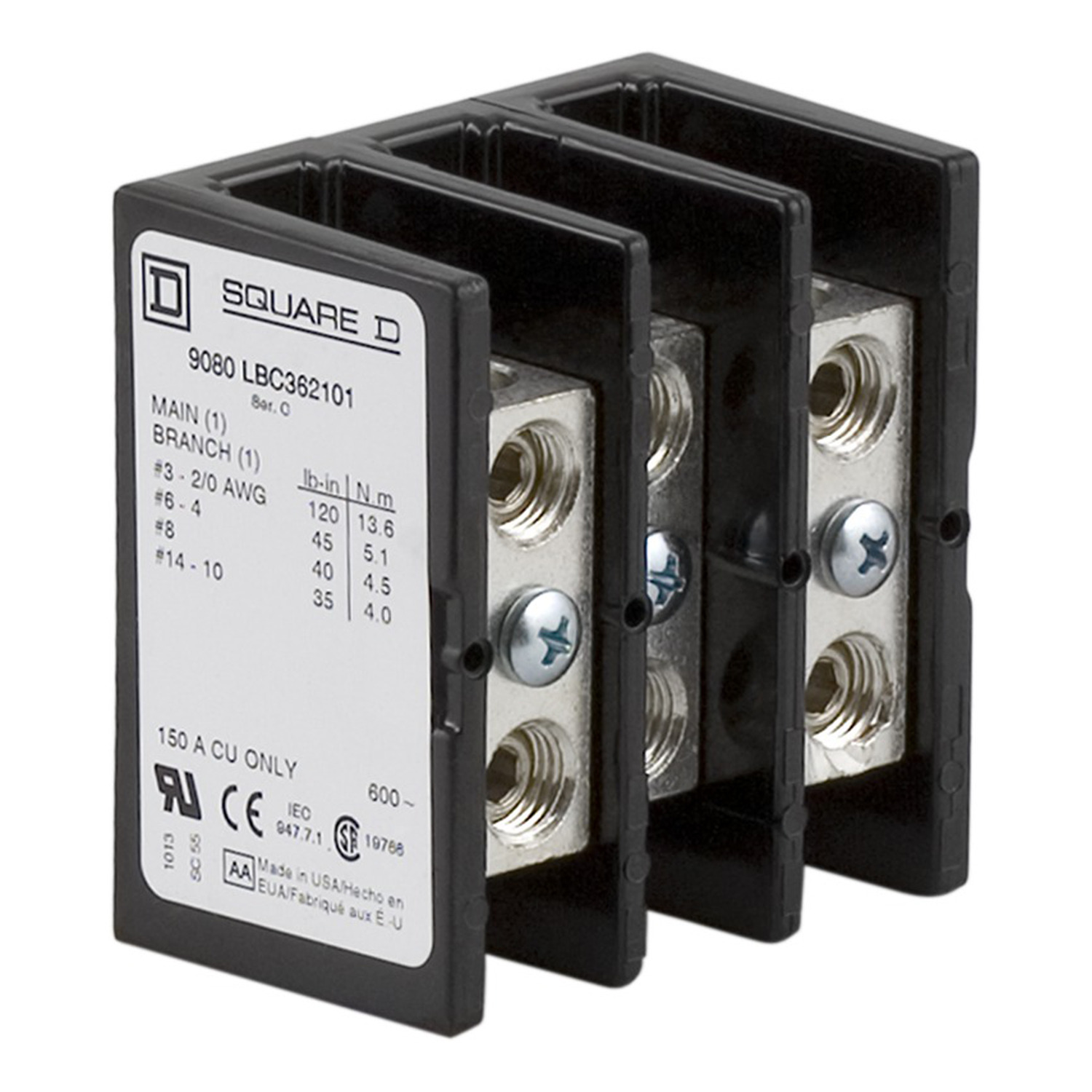

9080LBC362101 Linergy Multi-Pole Power Distribution Block, 600 V AC/DC, 150 A, 3 Poles, 18 to 1/0 AWG Al/Cu Wire, Phenolic

MFR:
Schneider Electric
MFR #:
9080LBC362101
UPC:
785901097655
Item #:
141653

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This three pole block has one lug opening on the line (main) side and one lug opening on the load (branch) side. The line side lug is rated to accept one #18 to 1/0 copper wire. The load side lug is rated to accept one #18 to 1/0 copper wire. The lugs are made of copper. The lugs are rated for 150 amperes with copper wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Manuals & Documentation
Catalog Number 9080LBC362101
Manufacturer Schneider Electric
Brand Square D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Connection Tin plated copper lugs;Line lug 50 lbf.in AWG 6...AWG 1/0 copper;line lug 40 lbf.in AWG 8 copper;line lug 35 lbf.in AWG 14...AWG 10 copper;load lug 50 lbf.in AWG 6...AWG 1/0 copper;load lug 40 lbf.in AWG 8 copper;load lug 35 lbf.in AWG 14...AWG 10 copper
Material Phenolic: block
Mounting Surface
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=373033&lang=en-us
UPC 785901097655
GTIN 00785901097655
Item Type Power Distribution Block;9080LB23
Width 2.75
Width UOM Inch
Height 2.88
Height UOM Inch
Depth 1.78 IN
