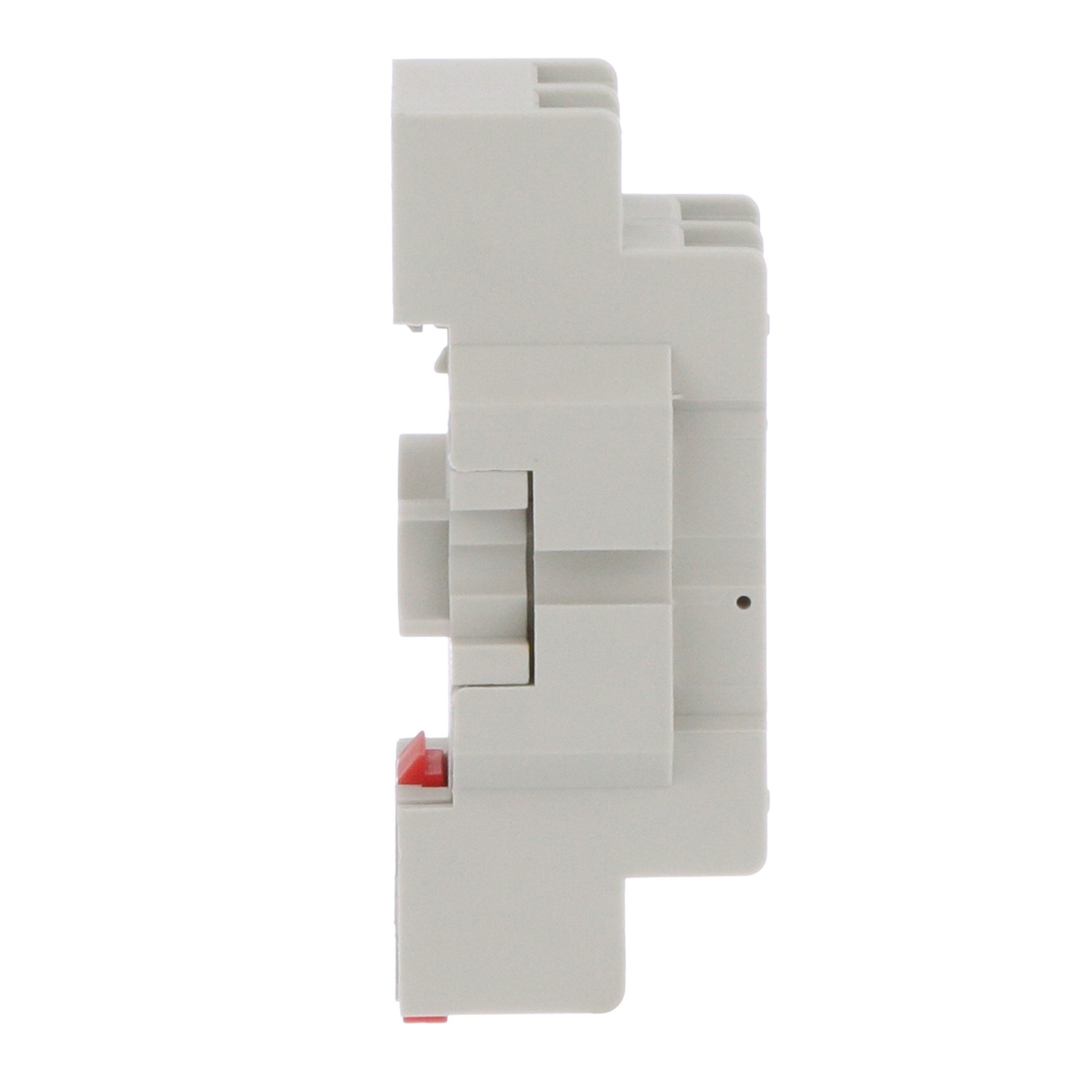

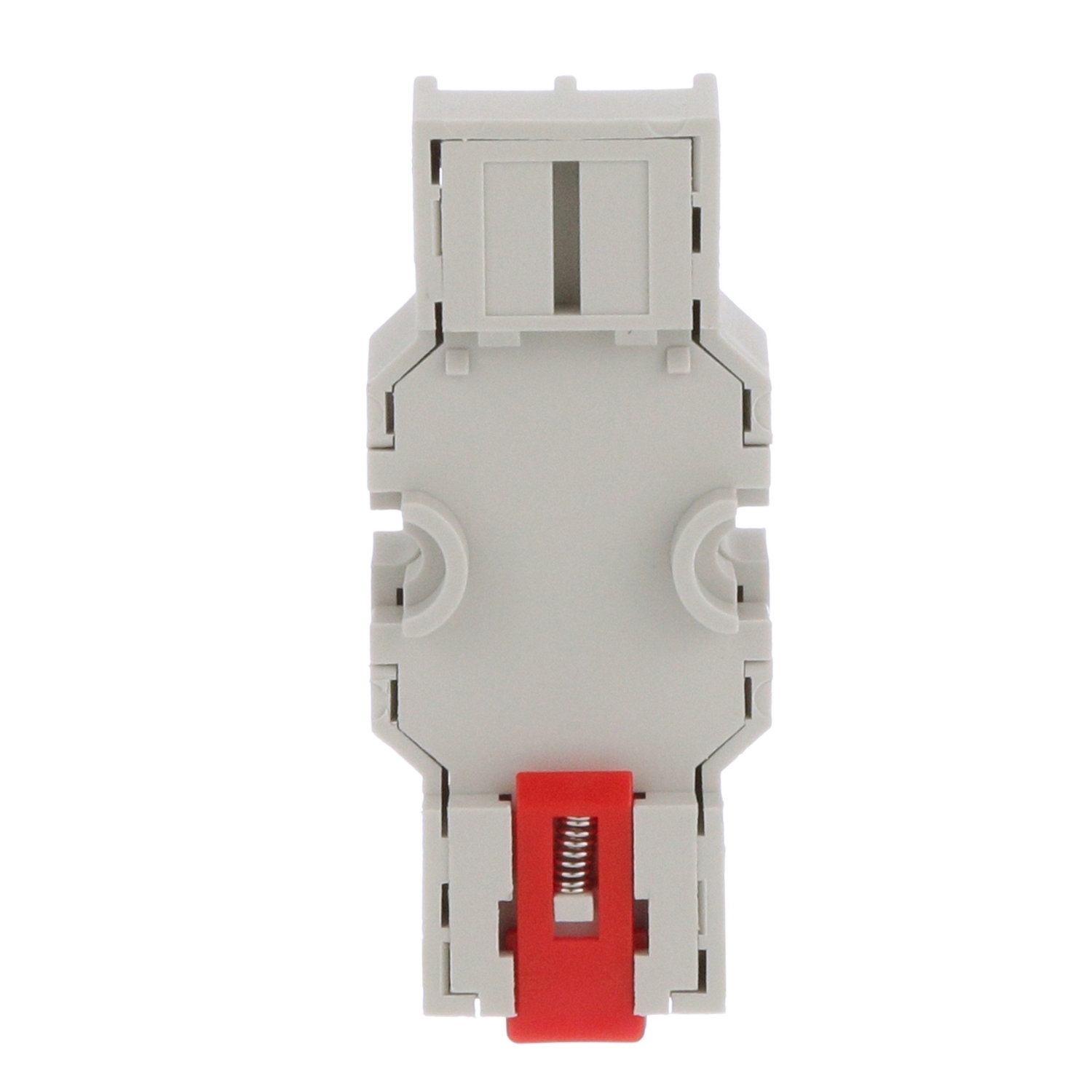

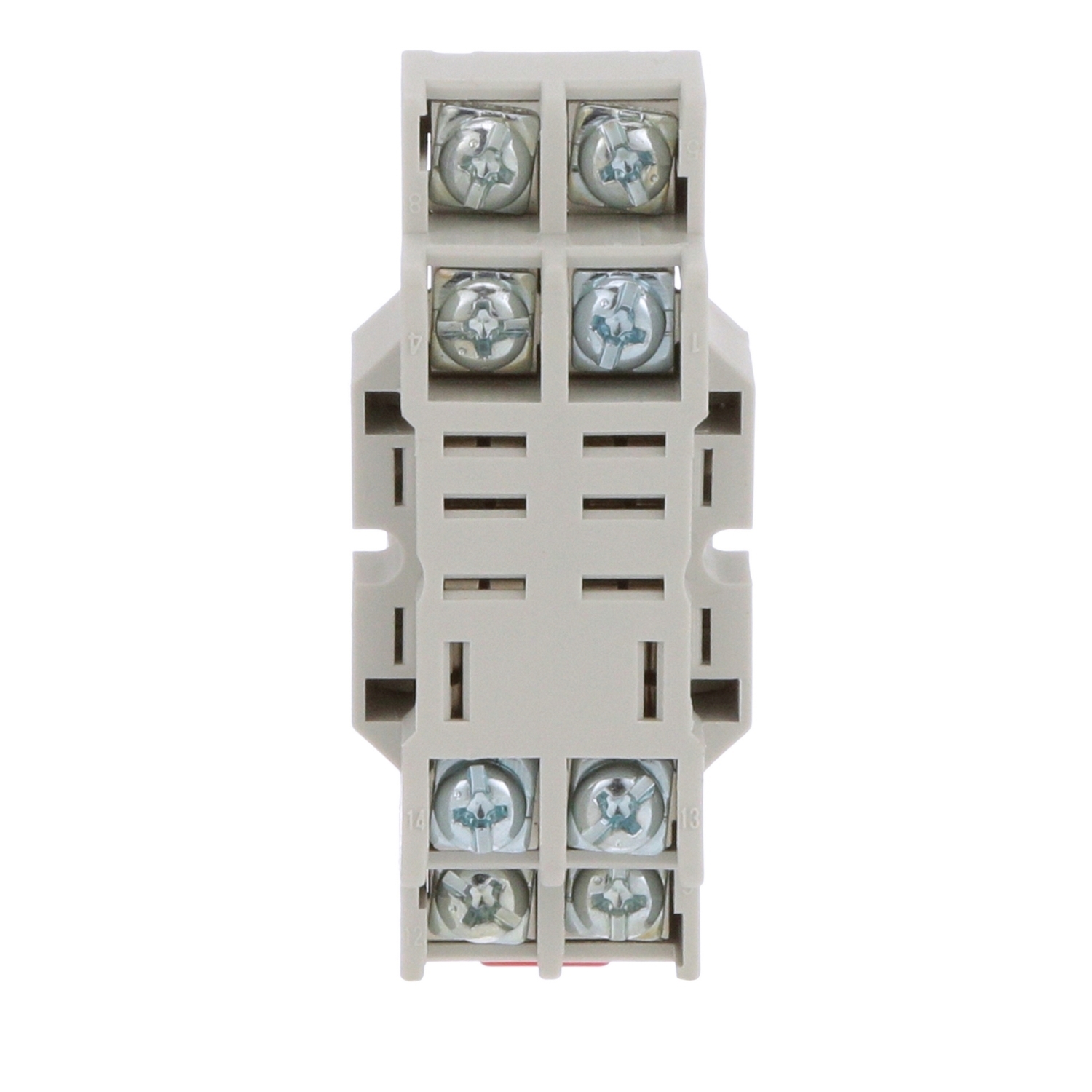

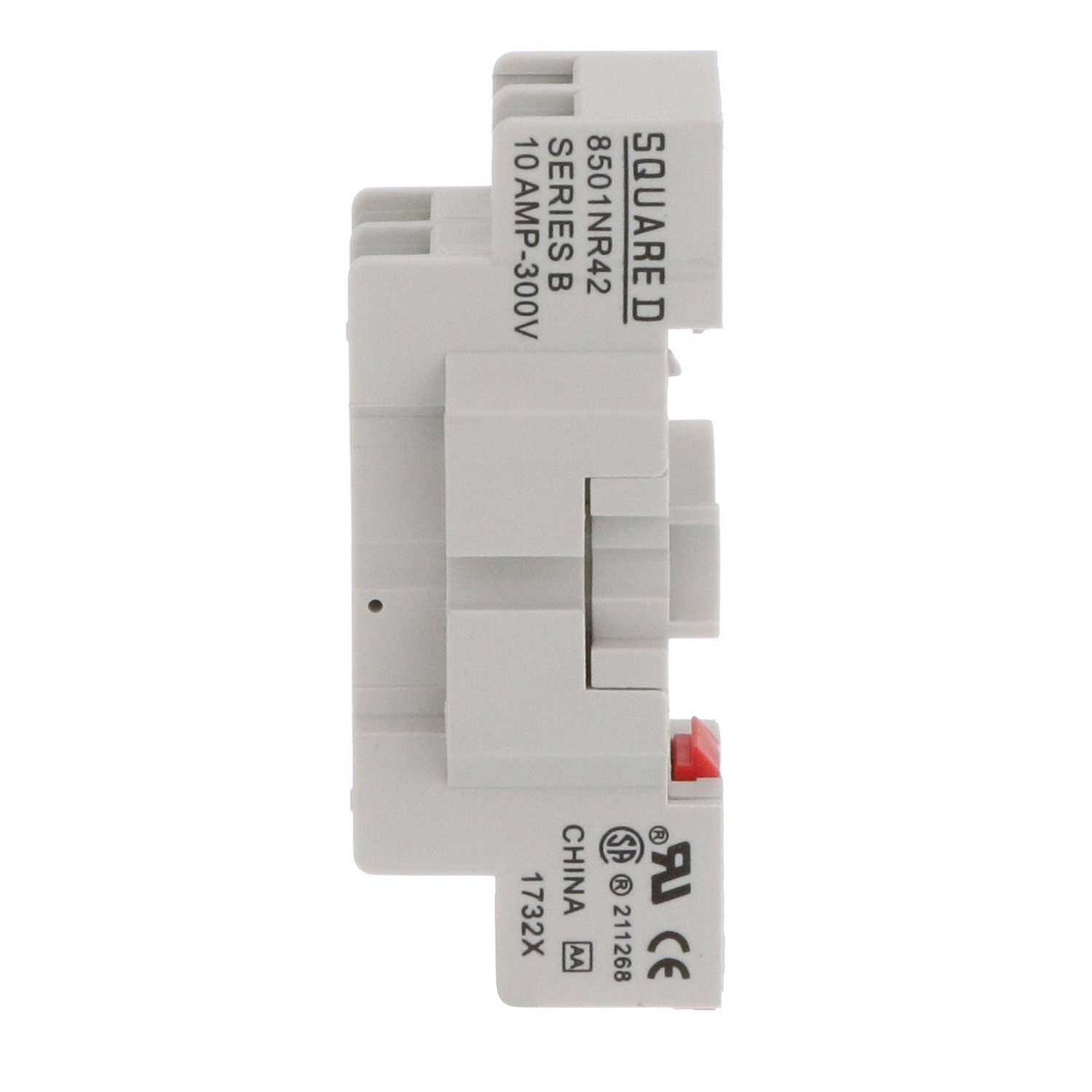

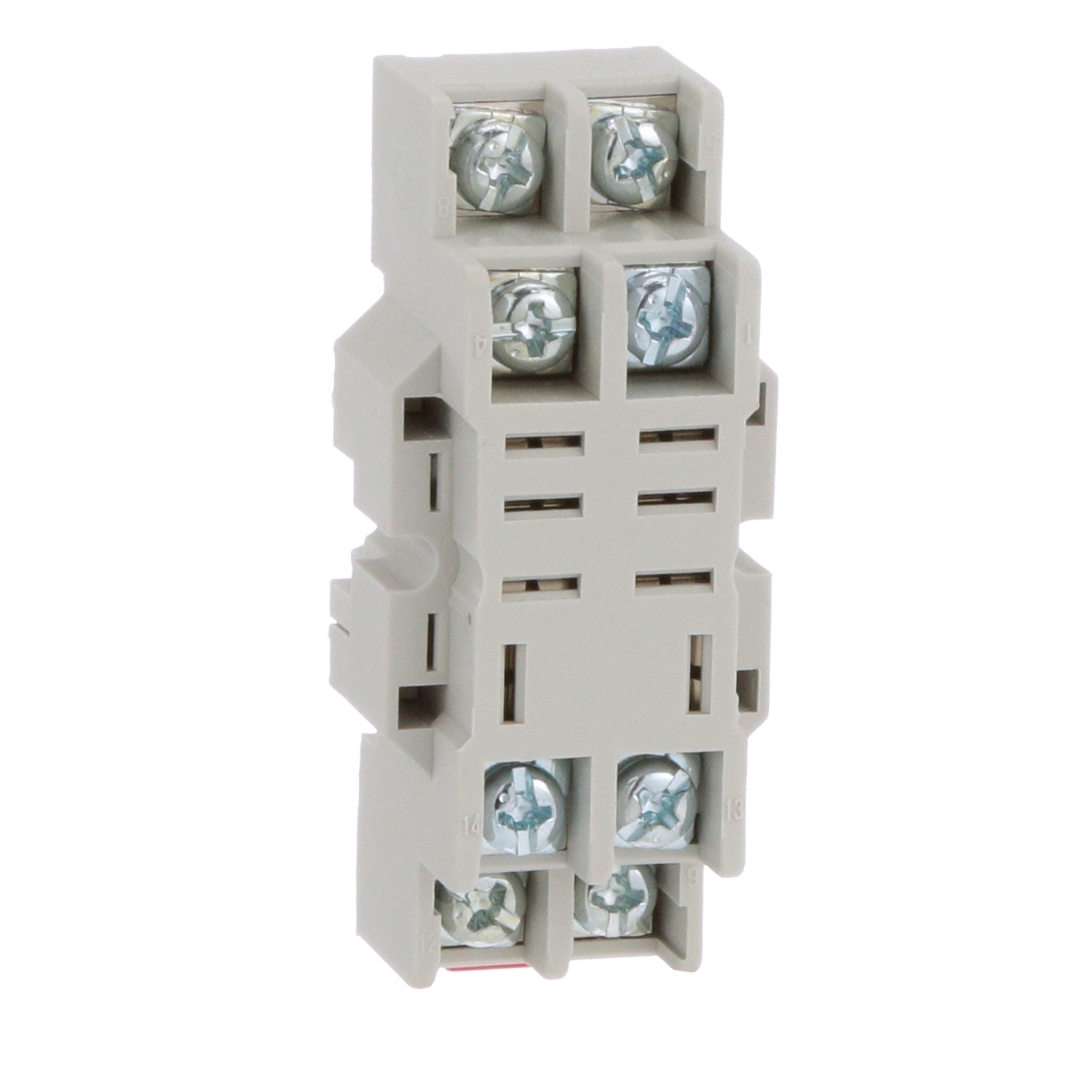

8501NR42B 8501N Relay Socket, 300 V AC, 10 A, For Use With Class 8501 Series Miniature Plug-In Relay, 8 Pin
- MFR:
- Schneider Electric
- MFR #:
- 8501NR42B
- UPC:
- 785901097853
- Item #:
- 141398
8501NR42B 8501N Relay Socket, 300 V AC, 10 A, For Use With Class 8501 Series Miniature Plug-In Relay, 8 Pin
- MFR #:
- 8501NR42B
- UPC:
- 785901097853
- Item #:
- 141398
8501NR plug in relay sockets are designed for the proper wiring of 8501R plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501RS42 or 8501RSD42 relay will plug into this relay socket which is designed for 8 blade pins. The socket terminals have pressure wire clamps for a good secure connection. To save panel space this socket has stacked terminals. 8501NR plug in relay sockets are UL component recognized and CSA certified. These relay sockets are packed with ten sockets per box to make it quicker to get the sockets out on the packing and to reduce packing waste.
| Catalog Number | 8501NR42B |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | China |
| Made in USA | No |
| Mounting | Din Rail |
| Special Features | Set of 10 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=367283&lang=en-us |
| UPC | 785901097853 |
| GTIN | 00785901097853 |
| Width | 1.17800 |
| Width UOM | Inch |
| Height | 2.72010 |
| Height UOM | Inch |
| Depth | 0.99490 IN |
