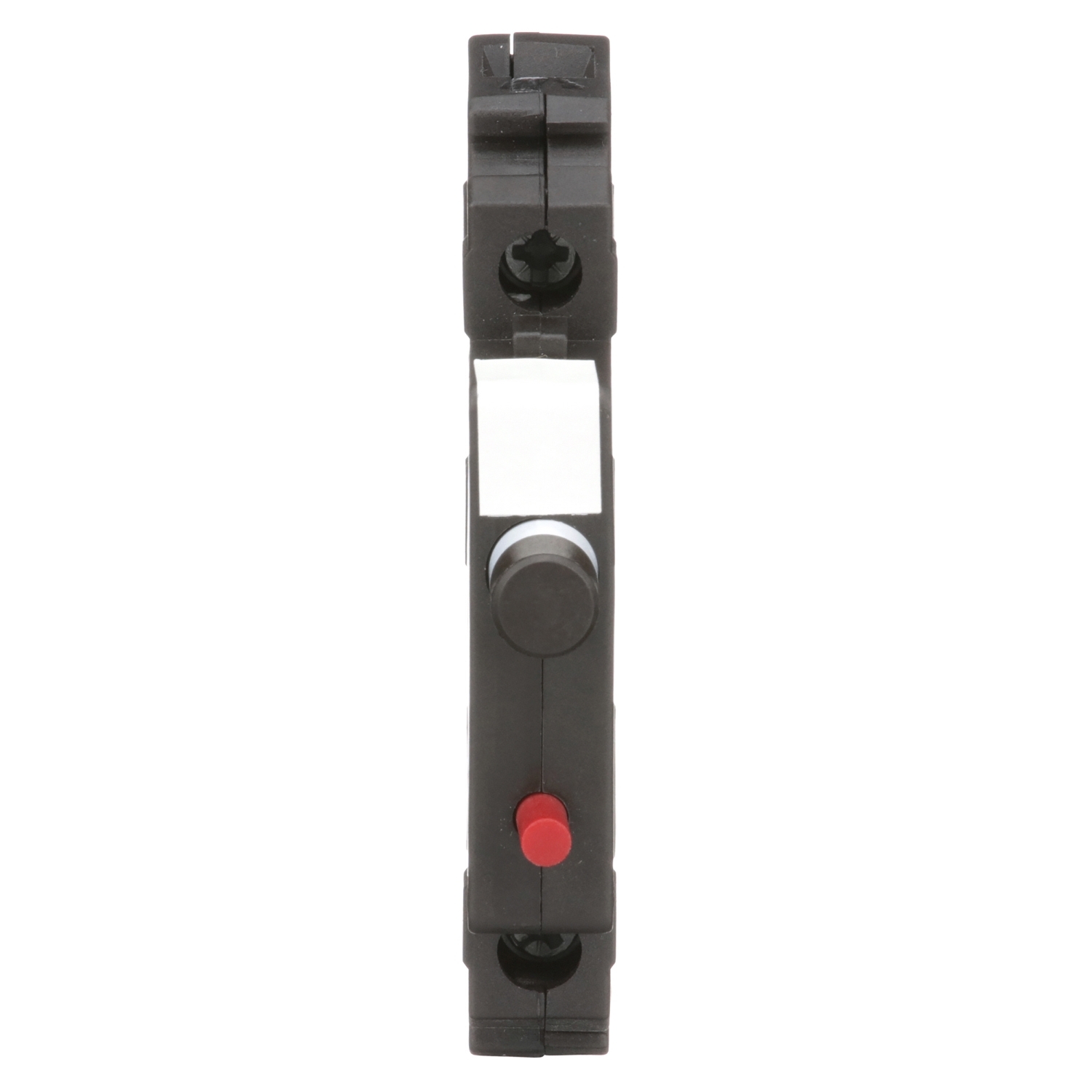

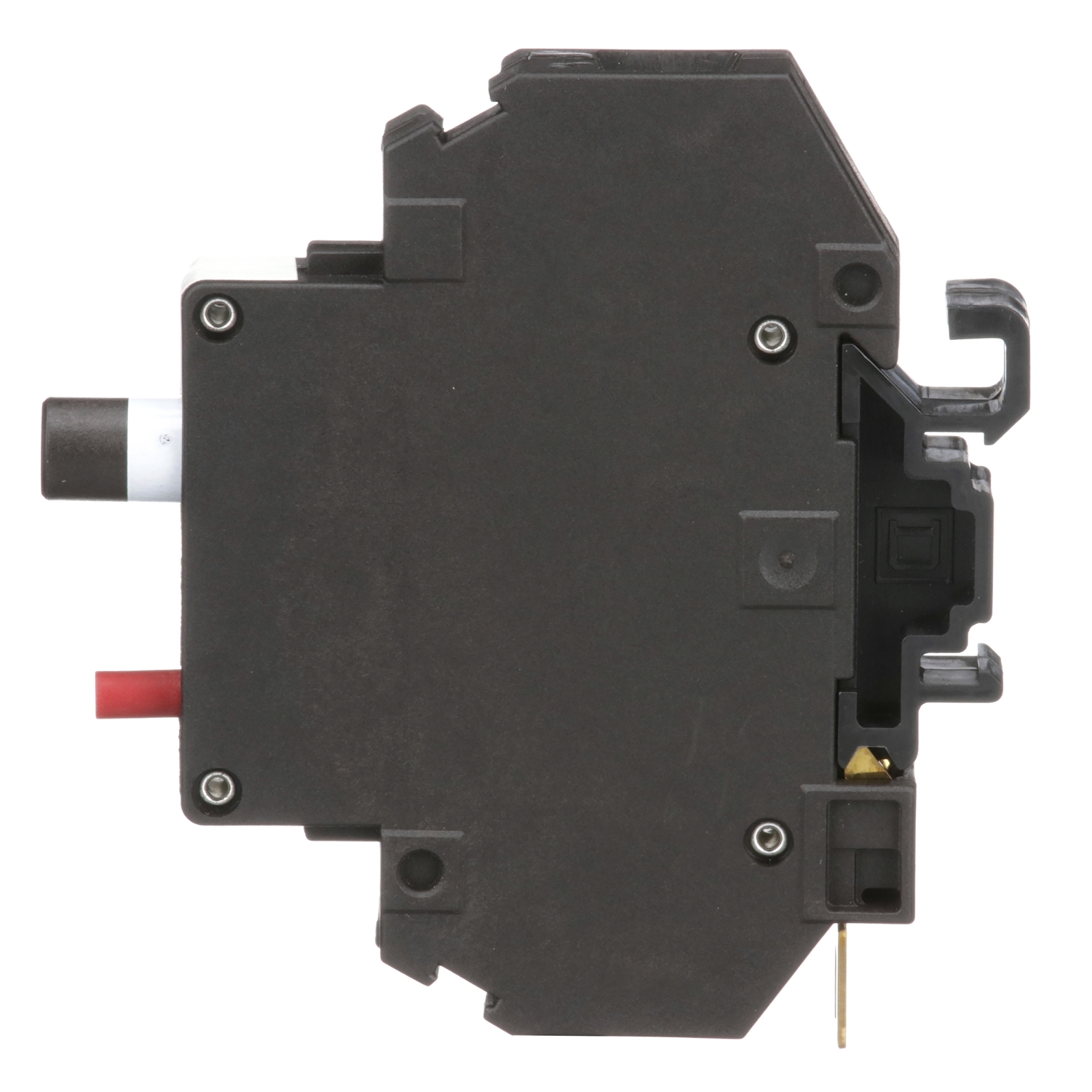

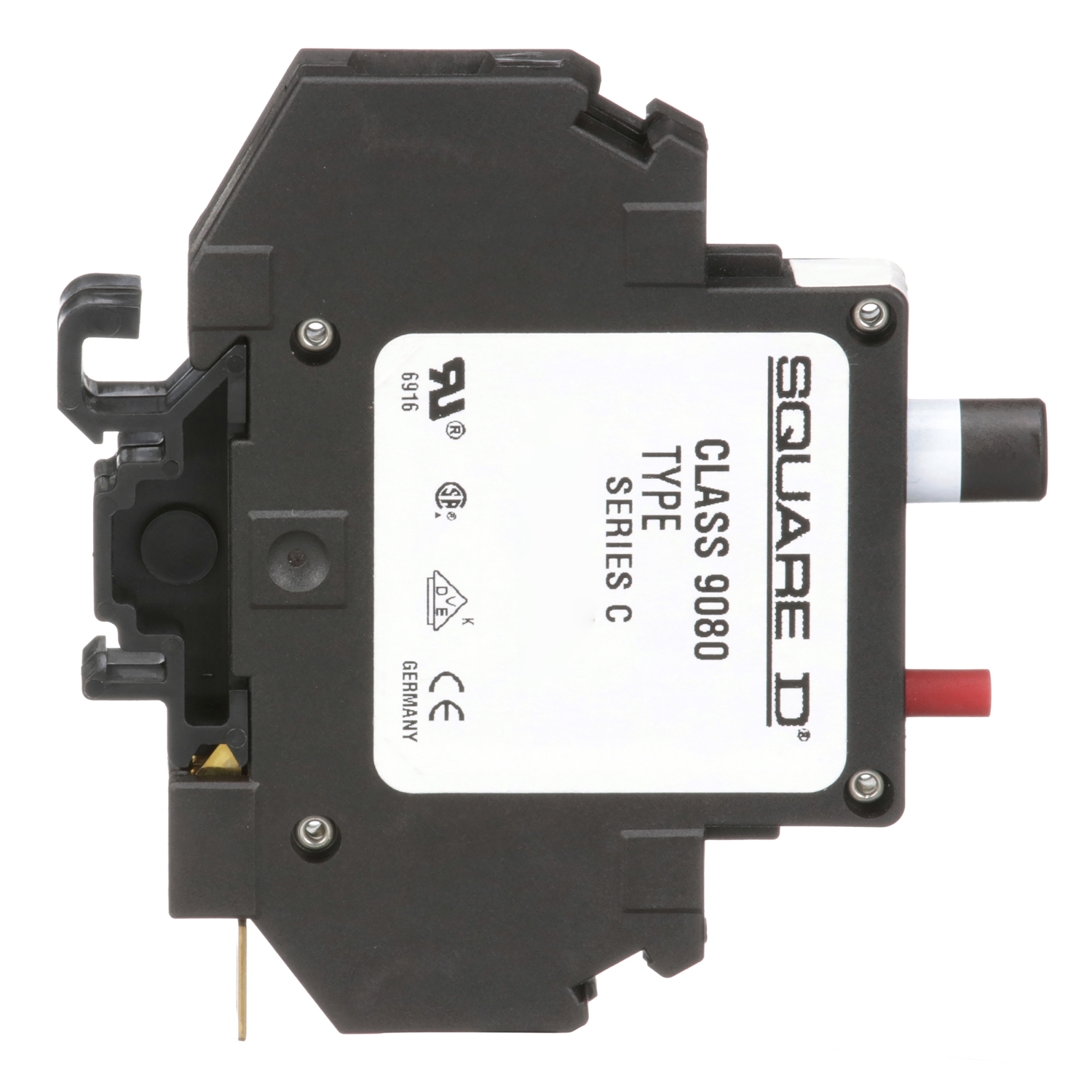

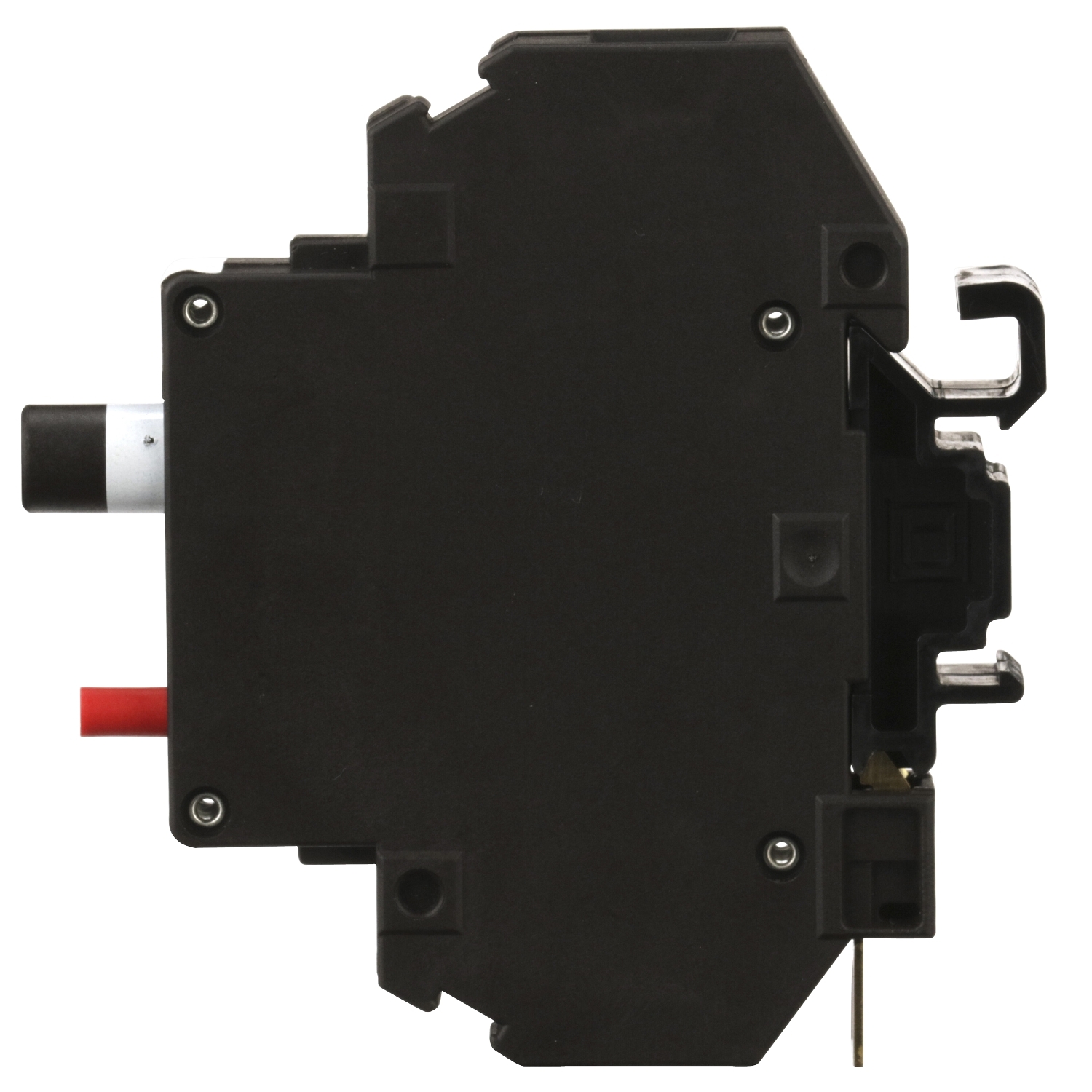

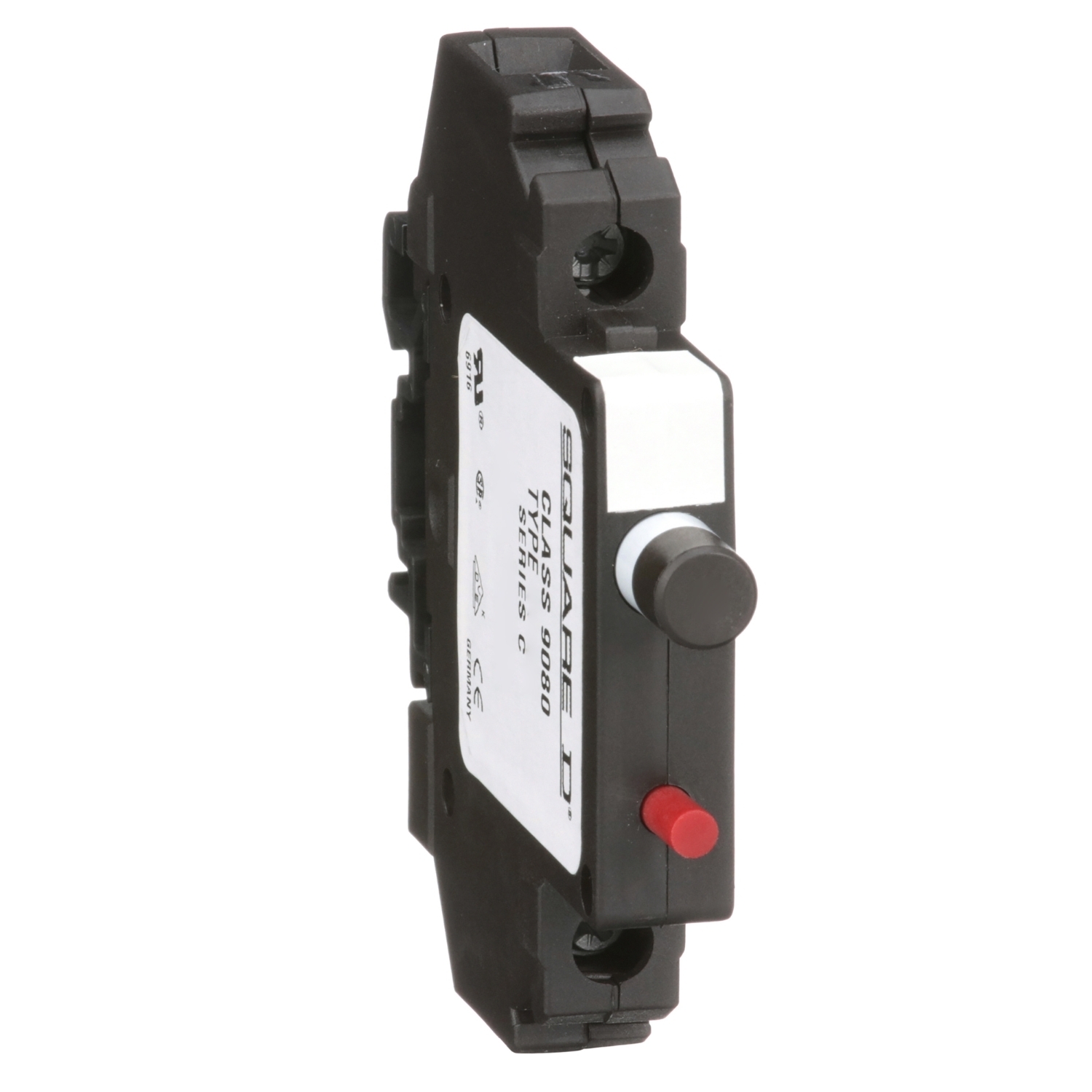

9080GCB70 Linergy Overcurrent Circuit Protector, 250 V AC/65 V DC, 7 A, 1 Poles
- MFR:
- Schneider Electric
- MFR #:
- 9080GCB70
- UPC:
- 785901000945
- Item #:
- 140730
9080GCB70 Linergy Overcurrent Circuit Protector, 250 V AC/65 V DC, 7 A, 1 Poles
- MFR #:
- 9080GCB70
- UPC:
- 785901000945
- Item #:
- 140730
Linergy thermal magnetic circuit protectors are a trip free device. These circuit protectors cab be mounted on 35 mm DIN track or Square D terminal block track. The family has circuit protectors with current ratings from 0.1 to 15 A. This circuit protector has a current rating of 7.0 amperes. The thermal feature trips when there is an overload of ten times rated current or less. The magnetic mechanism trips instantaneously when there is a short circuit. Maximum rating of 200 A, but not exceeding 10,000% (100 times) rated current.
Manuals & Documentation
| Catalog Number | 9080GCB70 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Indonesia |
| Made in USA | No |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=371975&lang=en-us |
| UPC | 785901000945 |
| GTIN | 00785901000945 |
| Width | 3.15 |
| Width UOM | Inch |
| Height | 3.45 |
| Height UOM | Inch |
| Depth | 0.5 IN |
