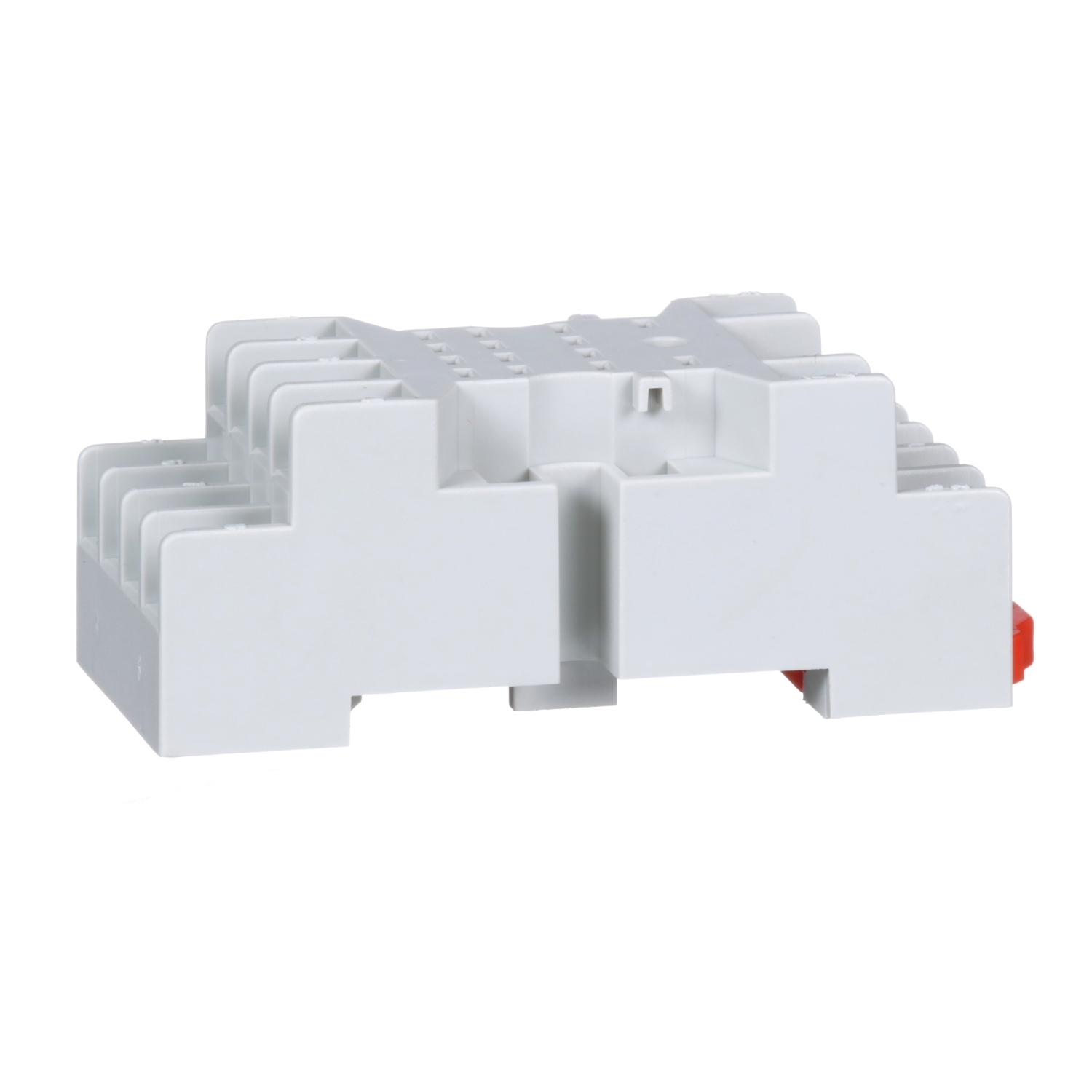

8501NR45 Type R Double Tier Relay Socket, 300 V AC, 10 A, For Use With 8501RS(D)4, 14, 24 and 34 Relay, 14 Pin
- MFR:
- Schneider Electric
- MFR #:
- 8501NR45
- UPC:
- 785901583660
- Item #:
- 139194
8501NR45 Type R Double Tier Relay Socket, 300 V AC, 10 A, For Use With 8501RS(D)4, 14, 24 and 34 Relay, 14 Pin
- MFR #:
- 8501NR45
- UPC:
- 785901583660
- Item #:
- 139194

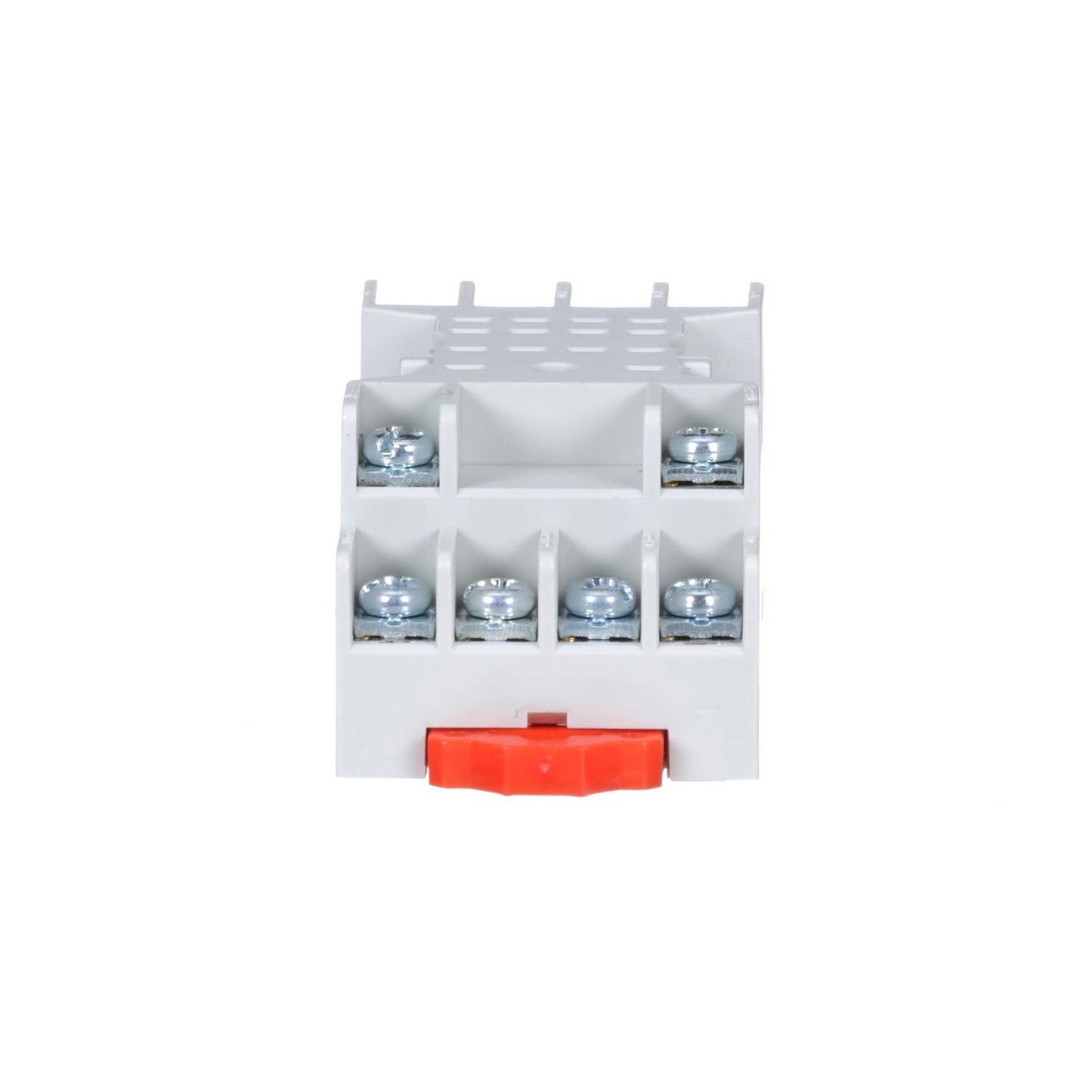

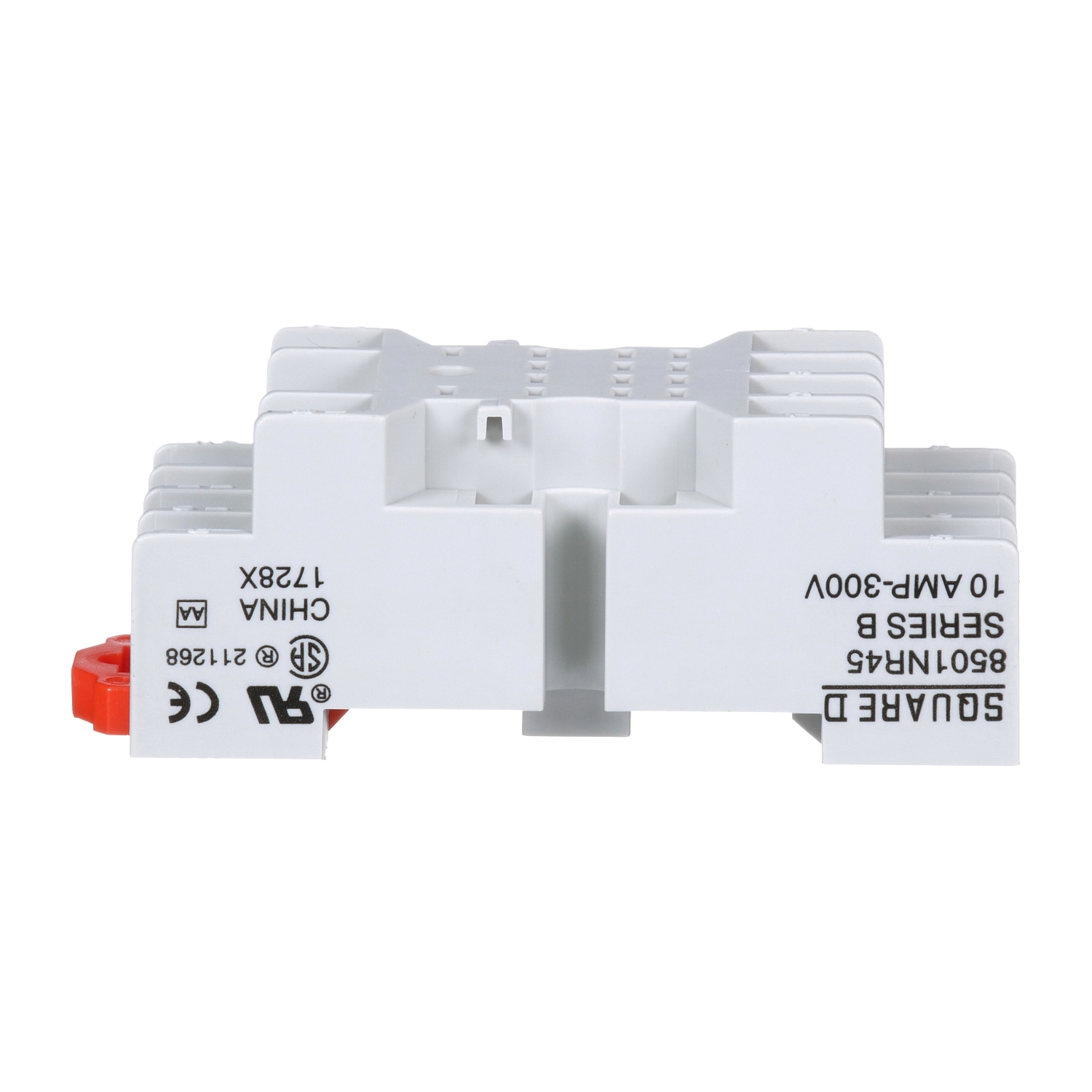

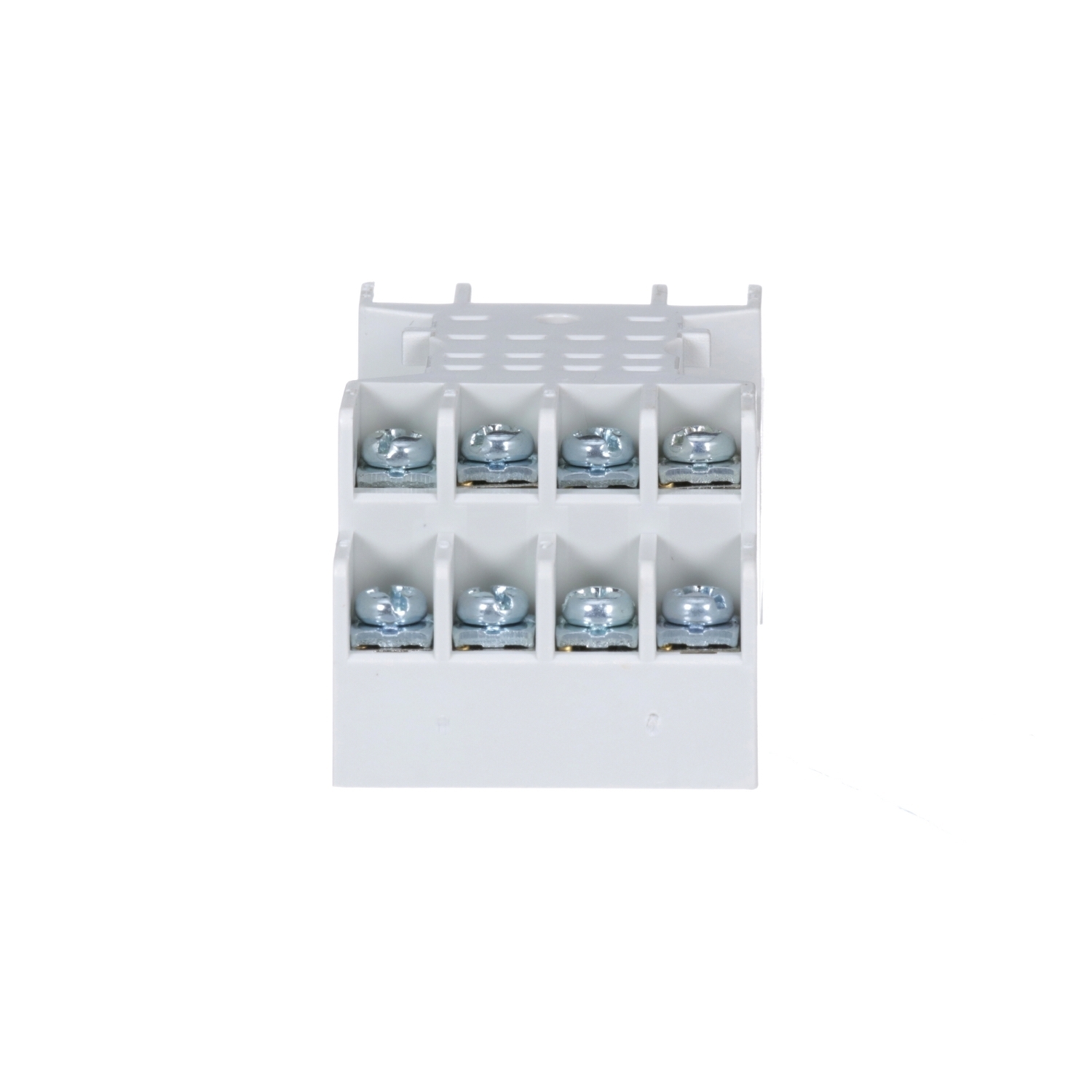

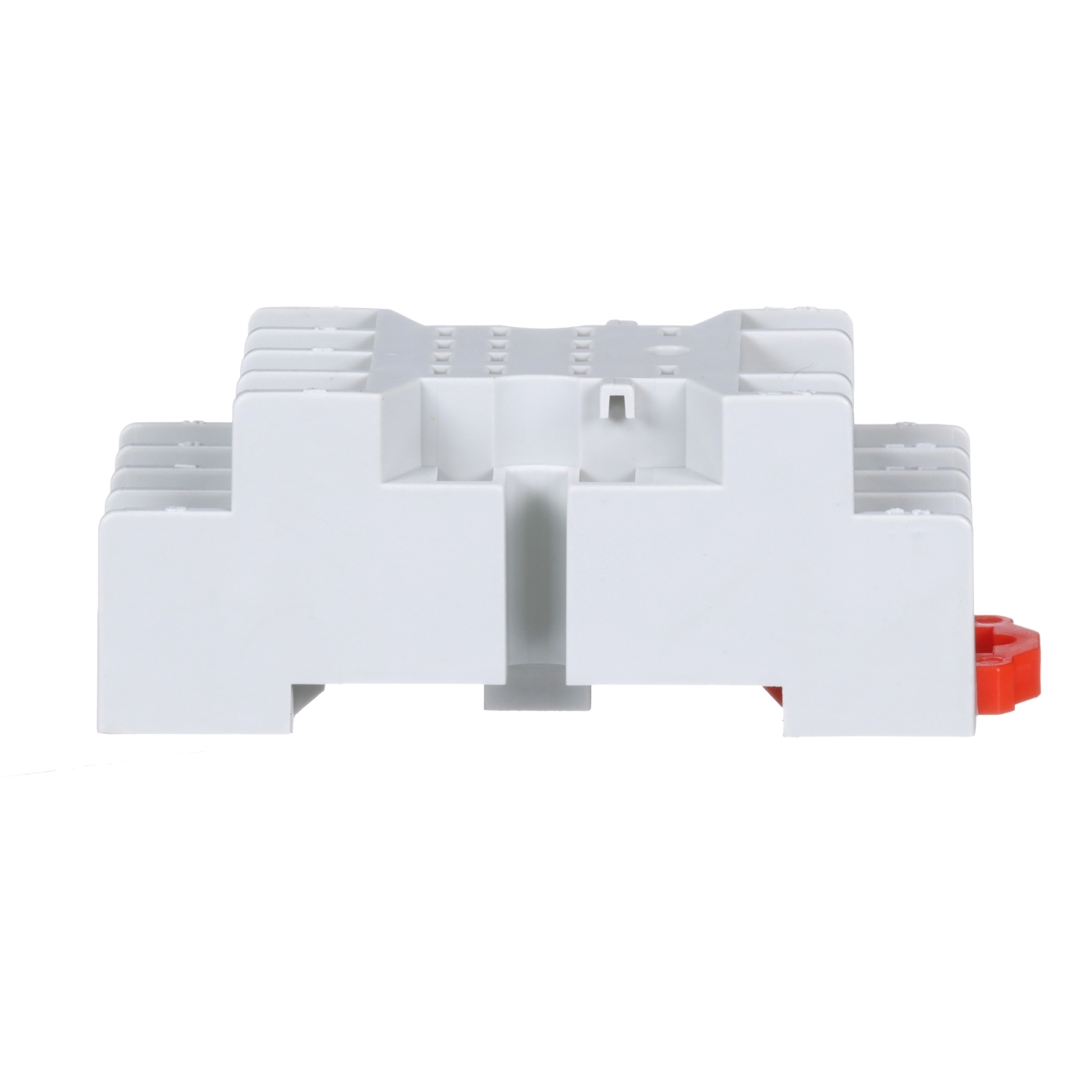

8501NR plug in relay sockets are designed for the proper wiring of 8501R plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501RS14, 8501RS24 or 8501RS34 relays will plug into this relay socket which is designed for 14 blade pins. The socket terminals have pressure wire clamps for a good secure connection. To save panel space this socket has stacked terminals. 8501NR plug in relay sockets are UL component recognized and CSA certified.
| Catalog Number | 8501NR45 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | China |
| Made in USA | No |
| Mounting | Din Rail |
| Special Features | 1 |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=367289&lang=en-us |
| UPC | 785901583660 |
| GTIN | 00785901583660 |
| Width | 1.20870 |
| Width UOM | Inch |
| Height | 2.71650 |
| Height UOM | Inch |
| Depth | 1.00000 IN |
