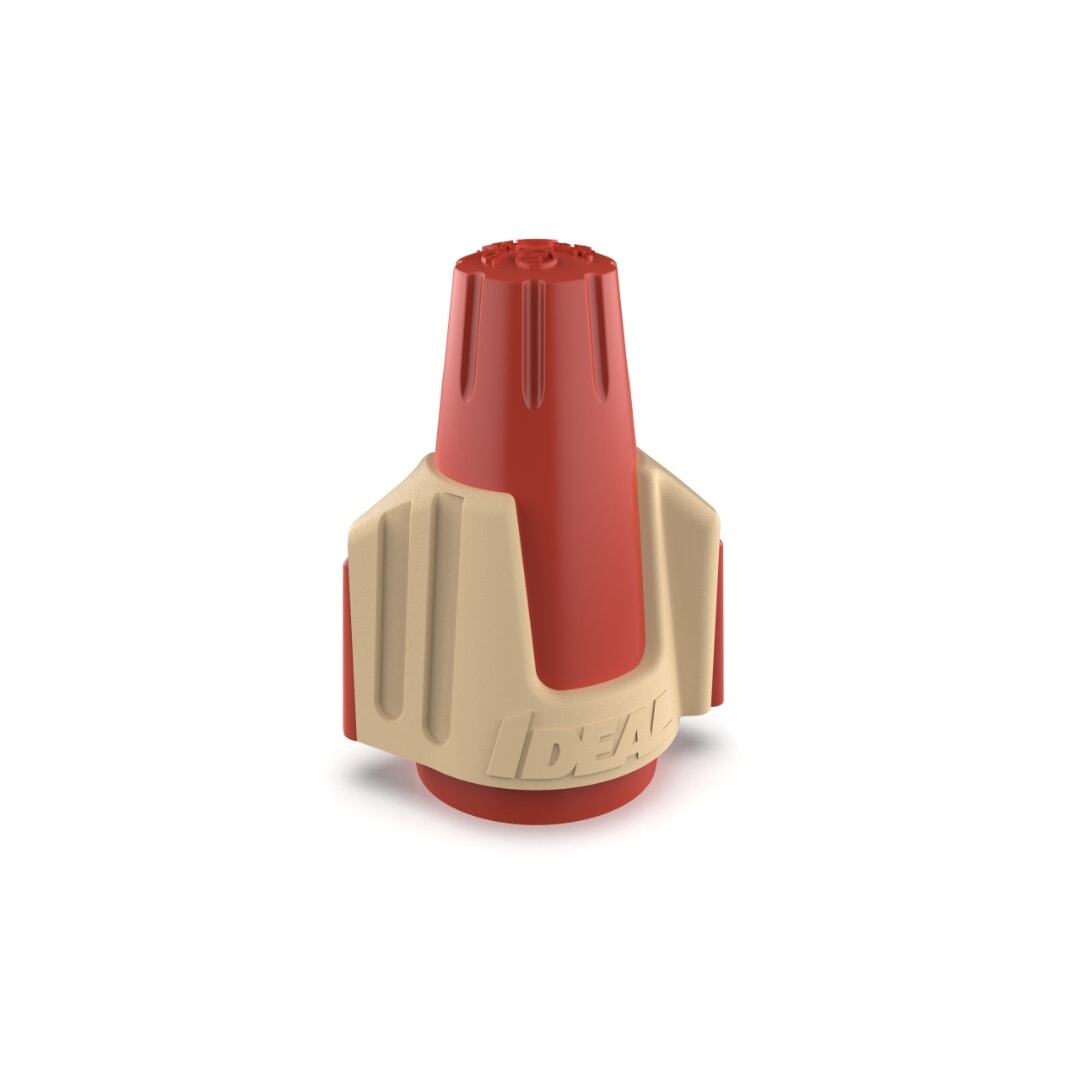

30-144 Twister PRO Wire Connector, Model 344, Red/Tan, Box of 50

MFR:
Ideal Industries
MFR #:
30-144
UPC:
783250707812
Item #:
139034

Twister Wire Connectors have earned a solid reputation as the most technically advanced wire connector available. These superior wire connectors are designed from top to bottom with features to provide more comfort and less fatigue to professional electricians. With swept wings and an expanding, live-action spring, the Twister supports a wide range of common wiring configurations with comfort and ease, even on the toughest combinations like solid-to-stranded. The copolymer shell expands for smooth, progressive tightening ensuring dependable connections.The Twister also features a hexagonal top with a ribbed cap for fast fingertip starts as well as nut driver installation. The tough, flame-retardant shell withstands the most rugged environmental extremes while the deep skirt provides maximum dielectric strength. Additionally, The Twister can easily be removed for repeat use on the same size or larger wire combinations.The Twister Pro Wire Connector offers the widest range red/yellow connector in the Industry, from as low as 2 #18 gauge wires to as high as 4 #10 gauge wires, while also featuring a patented over-molded grip for the ultimate in installation comfort.

Catalog Number 30-144
Manufacturer Ideal Industries
Brand Ideal
Country of Origin United States
Made in USA Yes
Application Insulating or Joining 1 or more conductors
Color Red;Tan
Conductor Range 22 - 8 AWG, 2/18 AWG Min, 4/10 AWG MAX
Material Flame-retardant Polypropelene
Number of Conductors 2 to 4
Special Features Features: The Widest Red/Tan Wire Range In The Industry; Min. 2 #18 To Max. 4 #10; Suregrip Overmolding Provides Better Grip For Improved Leverage And More Torque; Comfortable Swept Wings Designed To Help Reduce Hand Fatigue; Expanding Square-Wire Spring Provides A Secure Connection Every Time; Better Grip And More Leverage For Faster Connections With Less Effort; Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 Degree C (221 Degree F); UL Listed To 486C And CSA Certified To C22.2 #188; Comply With Federal Specification W-S-610E; 1,000V Maximum In Fixtures And Signs; Model Number: 344
Standard CSA C22.2 #188, UL 486C Listed, RoHS
RoHS URL https://www.ideadigitalcontent.com/files/11020/US_ROHS_COMPLIANCE_STATEMENT_REV_2_23_2015.PDF
UPC 783250707812
GTIN 00783250707812
Environmental Conditions Tough, UL 94V-2 Flame-Retardant Shell Rated At 105 DEG C (221 DEG F)
Voltage Rating 600
