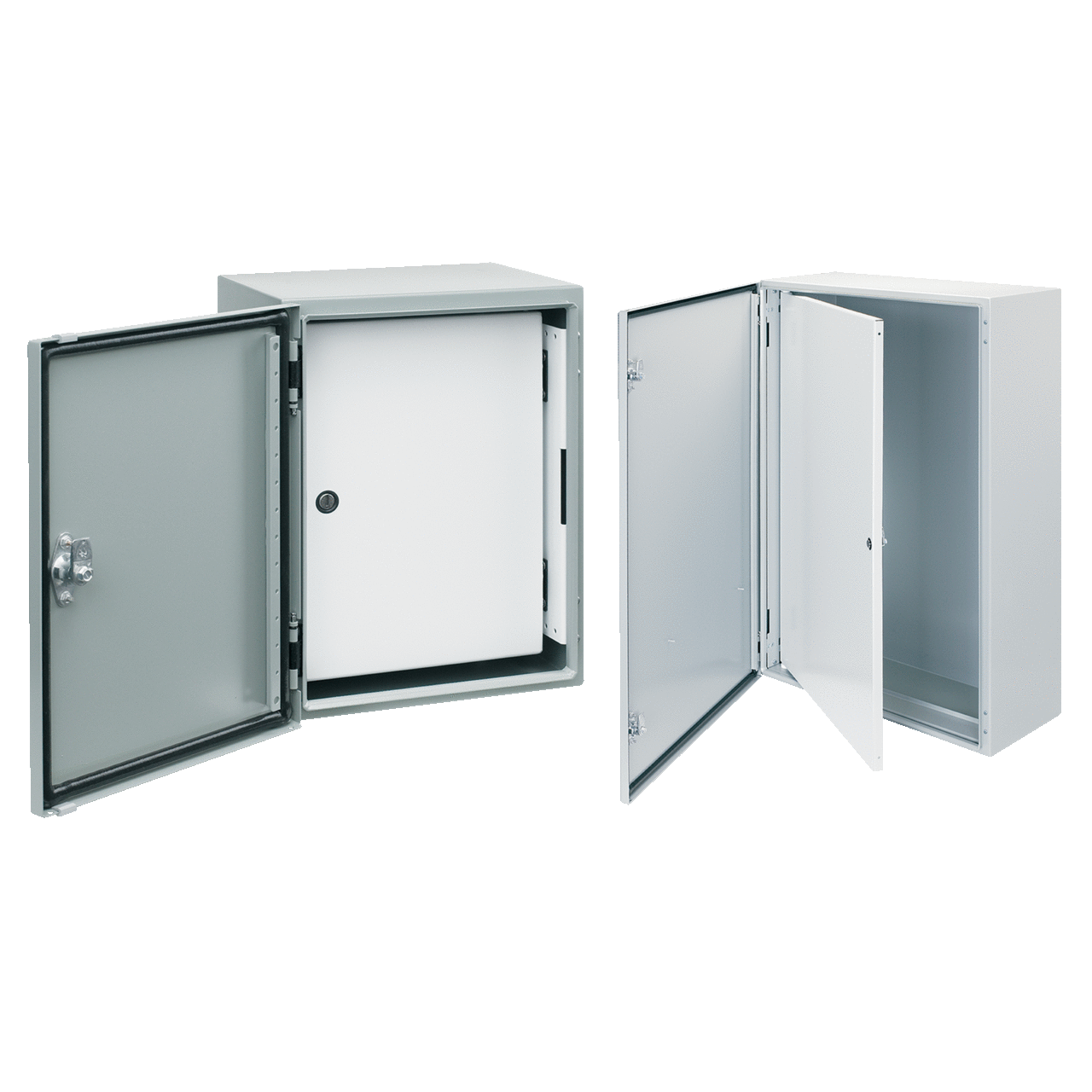

CSPB4836 CWY Concept Swing Out Panel, 45.72 in W x 33-3/4 in H, For Use With CONCEPT 48 x 36 in Enclosures, Steel
- MFR:
- nVent
- MFR #:
- CSPB4836
- UPC:
- 783510165116
- Item #:
- 138995
CSPB4836 CWY Concept Swing Out Panel, 45.72 in W x 33-3/4 in H, For Use With CONCEPT 48 x 36 in Enclosures, Steel
- MFR #:
- CSPB4836
- UPC:
- 783510165116
- Item #:
- 138995
Panels swing clear from the front of the enclosure to provide access to mounted internal equipment. For CSPB panels, maximum swing is 94 degrees. For CSP panels, maximum panel swing is 106 degrees. Distance from panel surface to door when in the latched position is 1.71 in. (43 mm) for solid doors and 1.45 in. (37 mm) for window doors. Kits include panel, brackets and hardware to mount to the front flange. Swing-out panels also can be mounted on front-to-back adjustable rails. CSPB panels require adapter CSPBADB and front-to-back adjustable rails for front-to-back adjustment.
| Catalog Number | CSPB4836 |
| Manufacturer | nVent |
| Brand | nVent HOFFMAN |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Power Distribution; Controls and Drives; Arc Flash Safety |
| Color | White |
| Material | Mild Steel |
| UPC | 783510165116 |
| GTIN | 00783510165116 |
| Item Type | Industrial Panels and Panel Accessories |
| Size | fits 48.00x36.00 in |
