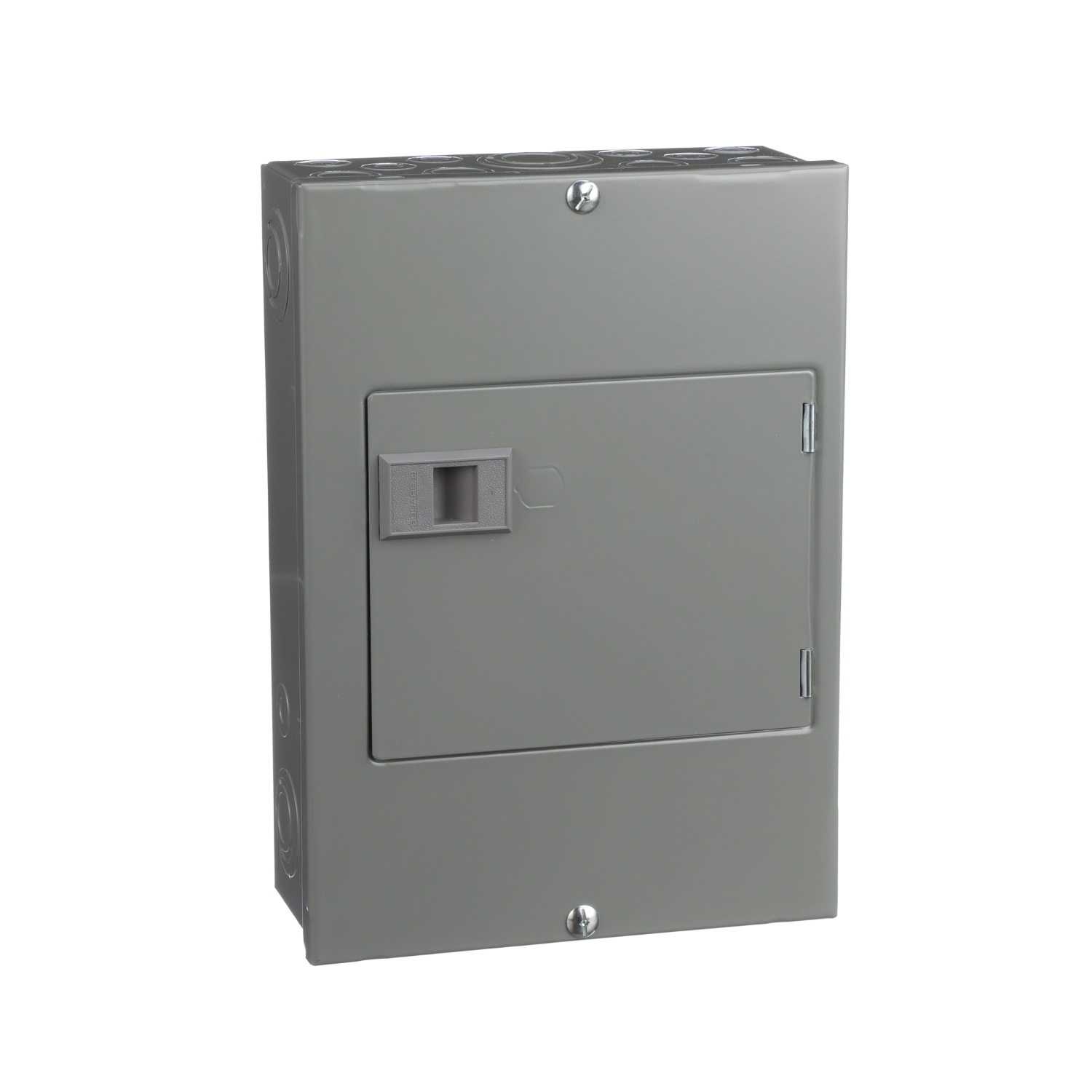

QO48M30DSGP 1-Phase Fixed Main Breaker Load Center With Surface Cover with Door, Generator Panel, 120/240 V AC, 30 A, 8 Poles, 10 kA Interrupt
- MFR:
- Schneider Electric
- MFR #:
- QO48M30DSGP
- UPC:
- 785901868200
- Item #:
- 138717
QO48M30DSGP 1-Phase Fixed Main Breaker Load Center With Surface Cover with Door, Generator Panel, 120/240 V AC, 30 A, 8 Poles, 10 kA Interrupt
- MFR #:
- QO48M30DSGP
- UPC:
- 785901868200
- Item #:
- 138717
QO generator panels are for the manual transfer from utility to generator power. QO generator panels are for back-up power applications. This sub-panel connects directly to the main load center and provides four single pole spaces that will accommodate up to eight circuits dedicated for back-up power. This QO generator panel uses two factory installed, two pole QO circuit breakers. One is fed by the utility, while the second circuit breaker is back-fed to the back-up power source, such as a generator. Power source switching is easy. Simply turn the main power breaker to the """"""
Manuals & Documentation
| Catalog Number | QO48M30DSGP |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Cable Size | AWG 14...AWG 8 aluminium/copper |
| Cover Type | Surface cover with door |
| Enclosure | Baked enamel Gray;Welded sheet steel;4 |
| Material | Tin plated aluminium busbar |
| Phase | 1 |
| Special Features | Tin plated aluminium: busbar |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=360927&lang=en-us |
| UPC | 785901868200 |
| GTIN | 00785901868200 |
| Item Type | Panel |
