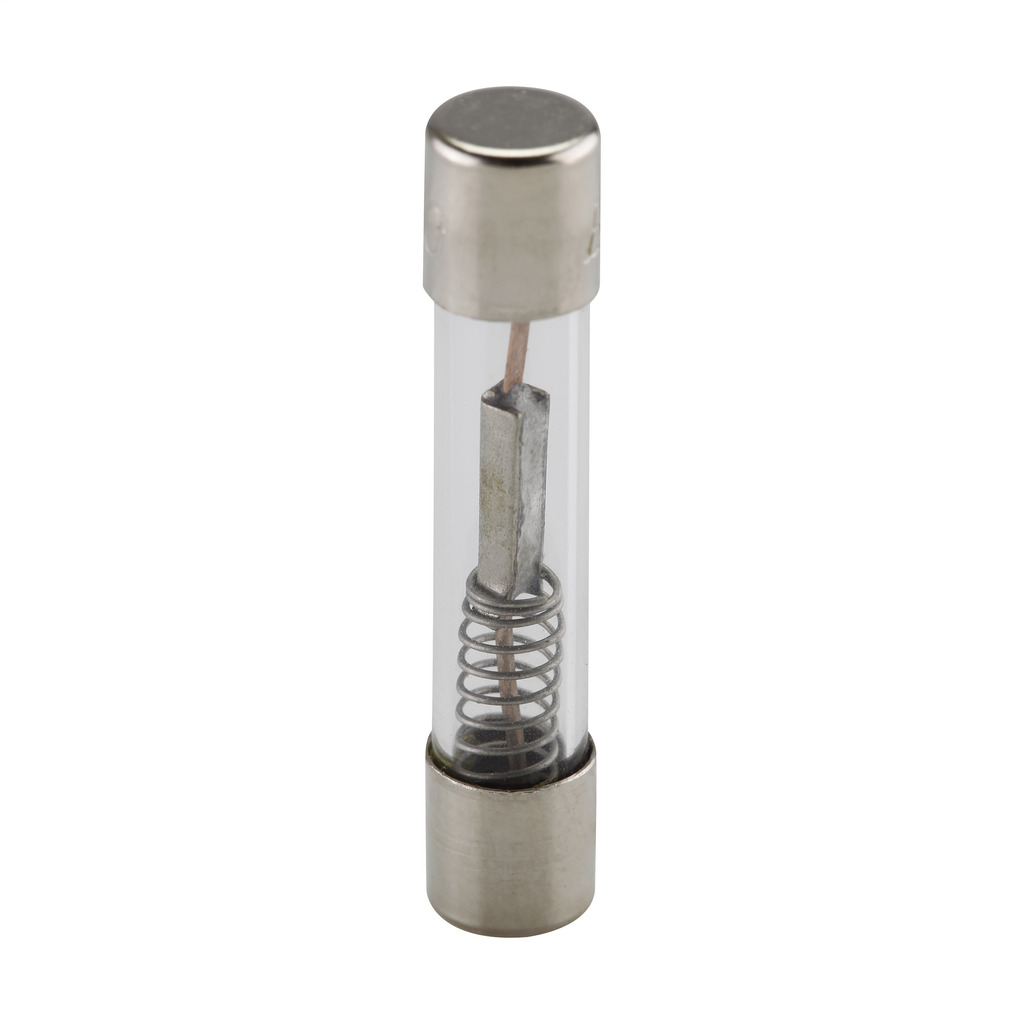

Dual element time delay, glass tube 1/4" x 1-1/4" ferrule fuse for overcurrent protection of electronic circuits where longer motor inrushes may be present. Install into a Bussmann Series fuse holder, block or fuse clip. Eatons MDQ dual element time delay, glass tube 1/4" x 1-1/4" ferrule fuses are designed to UL 248-14 for overcurrent protection of electronic circuits where longer motor inrushes may be present. The cartridge format allows for easy installation into a Bussmann Series fuse holder, block, or fuse clip.

Manuals & Documentation
Catalog Number MDQ-10
Manufacturer Eaton Bussmann
Brand Eaton Bussmann Series
Country of Origin Mexico
Made in USA No
Amperage Rating 10
Application Ind Facilities & Factories - Facility: Safety and Security Systems
Connection Ferrule end x ferrule end
Interrupt Rating 1 kAIC at 32 Vdc
Material Glass tube|Nickel-plated brass end cap construction
Response Time 60 min at 135%, 120 sec at 200%
Special Features Glass tube
Standard Not Applicable
UPC 051712183253
GTIN 00051712183253
Item Type Dual-element time-delay glass fuse
Weight UOM Pounds
Size 1/4 In Diameter X 1-1/4 In Length
Voltage Rating 32 Vac, 32 Vdc (self certified)
