Telemecanique

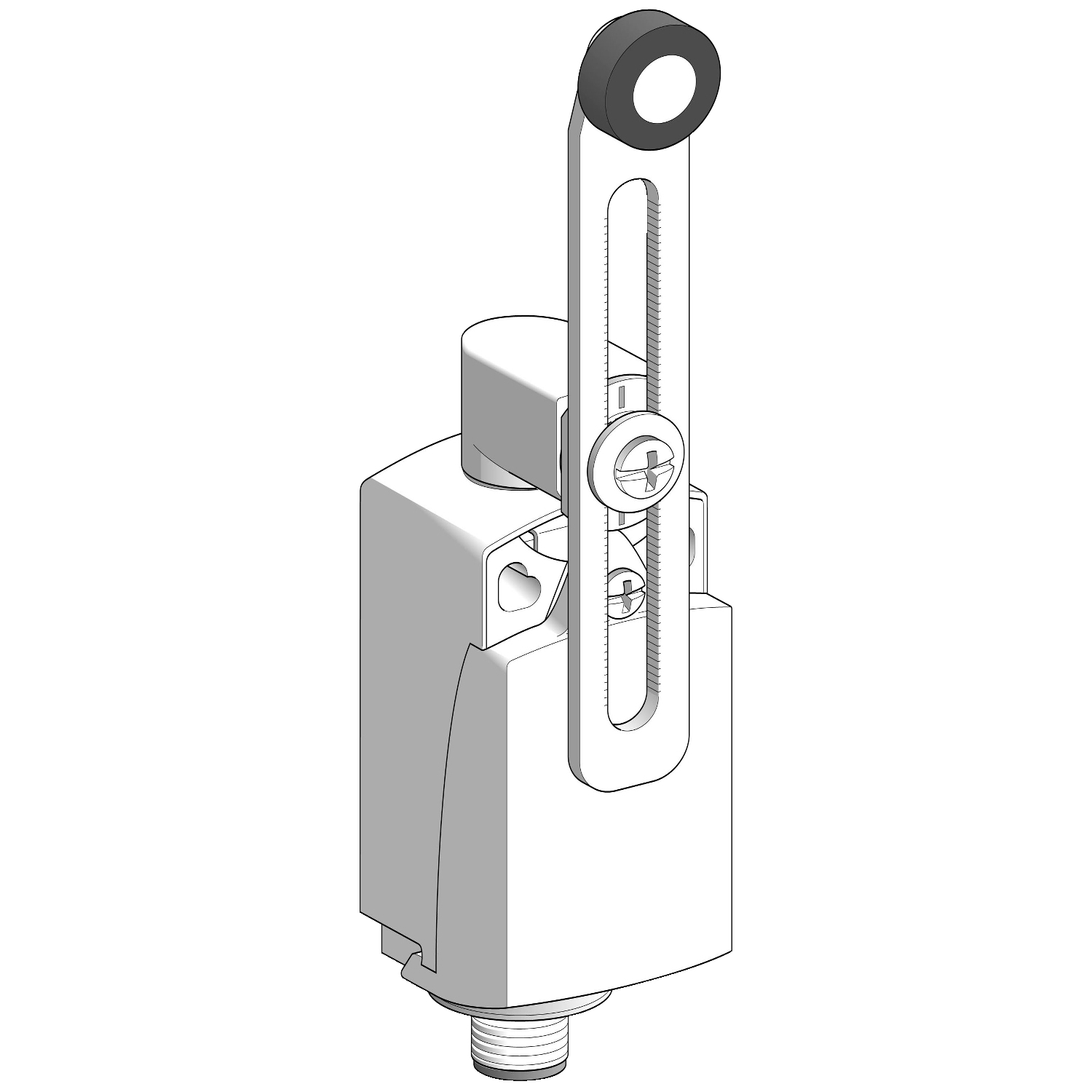

XCKP2145M12 OsiSense Compact Fixed Standard Limit Switch, 240 V AC, 250 V DC V AC, 3 A, Spring Return/Roller Lever/Adjustable Lever Arm Actuator, 1NO-1NC Contact, 2 Poles

MFR:
Telemecanique Sensors
MFR #:
XCKP2145M12
UPC:
785901685234
Item #:
135561

This XCKP compact format (CENELEC EN 50047) limit switch has a thermoplastic variable length roller lever and a plastic body. This limit switch has a double insulated thermoplastic body, a modular design allowing easier maintenance and a compact CENELEC EN50047 format. It is IP66 and IK04 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508 standards. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head. It has a standard M12 connector, compatible with all existing market sensor cabling.

Manuals & Documentation
Catalog Number XCKP2145M12
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Action Lateral approach, 2 directions;Snap action;By 30 Degrees cam
Actuator Spring return roller lever thermoplastic variable length
Amperage Rating 3
Application COMPACT VARIABLE
Connection Male connector M12, 4 pins
Contact Configuration 1 NC + 1 NO
Enclosure NEMA 1/2/4/6/12/13 IP66/67
Mounting By The Body
Number of Poles 2
Operating Cycles 5000000 CYCLES, DC-13, 120 V, 4 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 24 V, 10 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C-5000000 CYCLES, DC-13, 48 V, 7 W 60 CYC/MN 0.5 IEC 60947-5-1 APPENDIX C
Special Features FIXED,PLASTIC
Standard 25 GN 10-500 HZ)IEC 60068-2-6,50 GN 11 MS IEC 60068-2-27,EN 60947-5-1-UL 508-EN 60204-1-IEC 60204-1-CSA C22.2 NO 14-IEC 60947-5-1,IK04 EN 50102,IP66 IEC 60529-IP67 IEC 60529,UL-CSA-CCC,CLASS II IEC 61140-CLASS II NF C 20-030
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=857186&lang=en-us
UPC 785901685234
GTIN 03389110204155
Item Type Limit switch
Size 30 MM,31 MM,65-65 MM
Operating Temperature -25-70 A Degrees C
Voltage Rating 3 A 240 V, AC-15 EN/IEC 60947-5-1 APPENDIX A-0.27 A 250 V, DC-13 EN/IEC 60947-5-1 APPENDIX A
