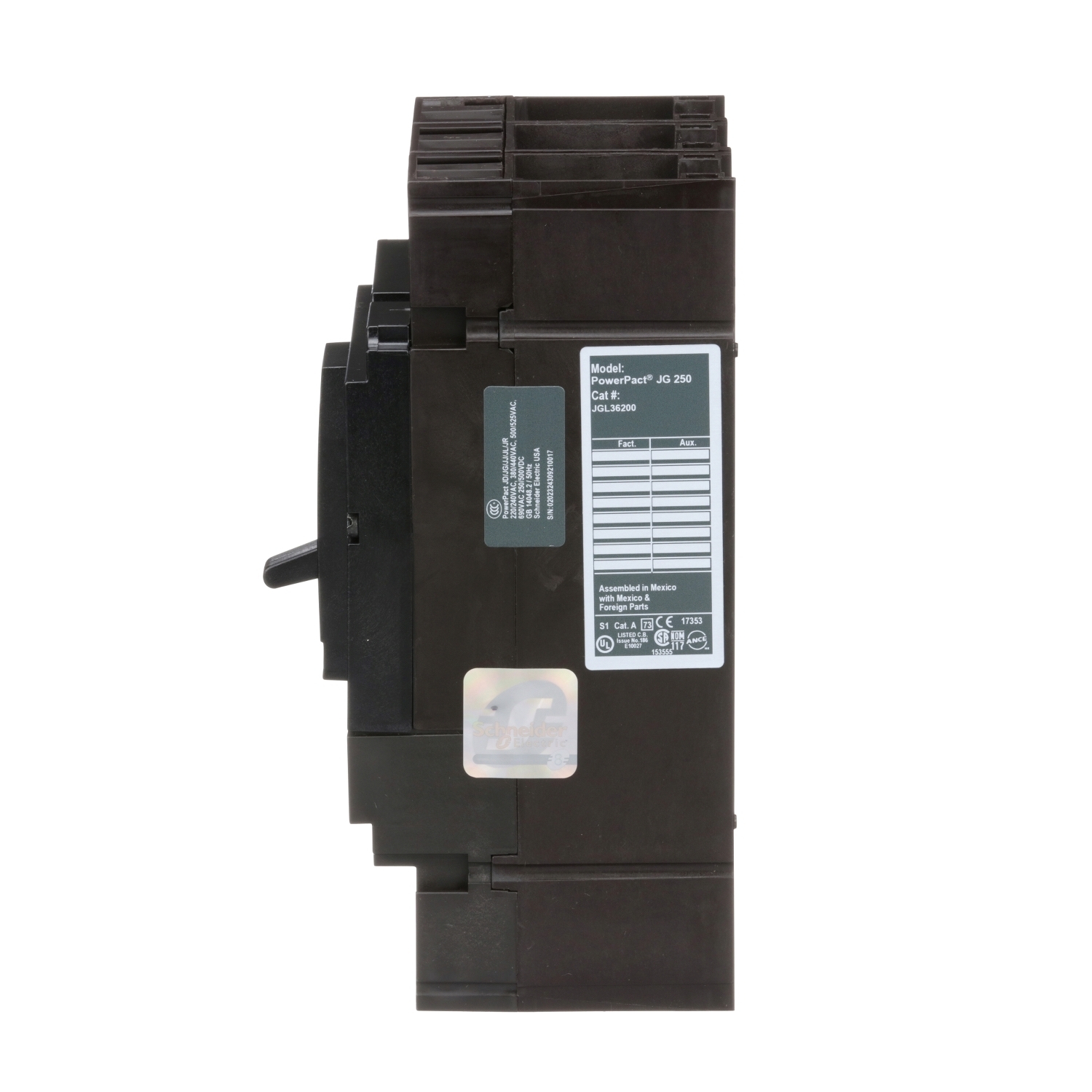

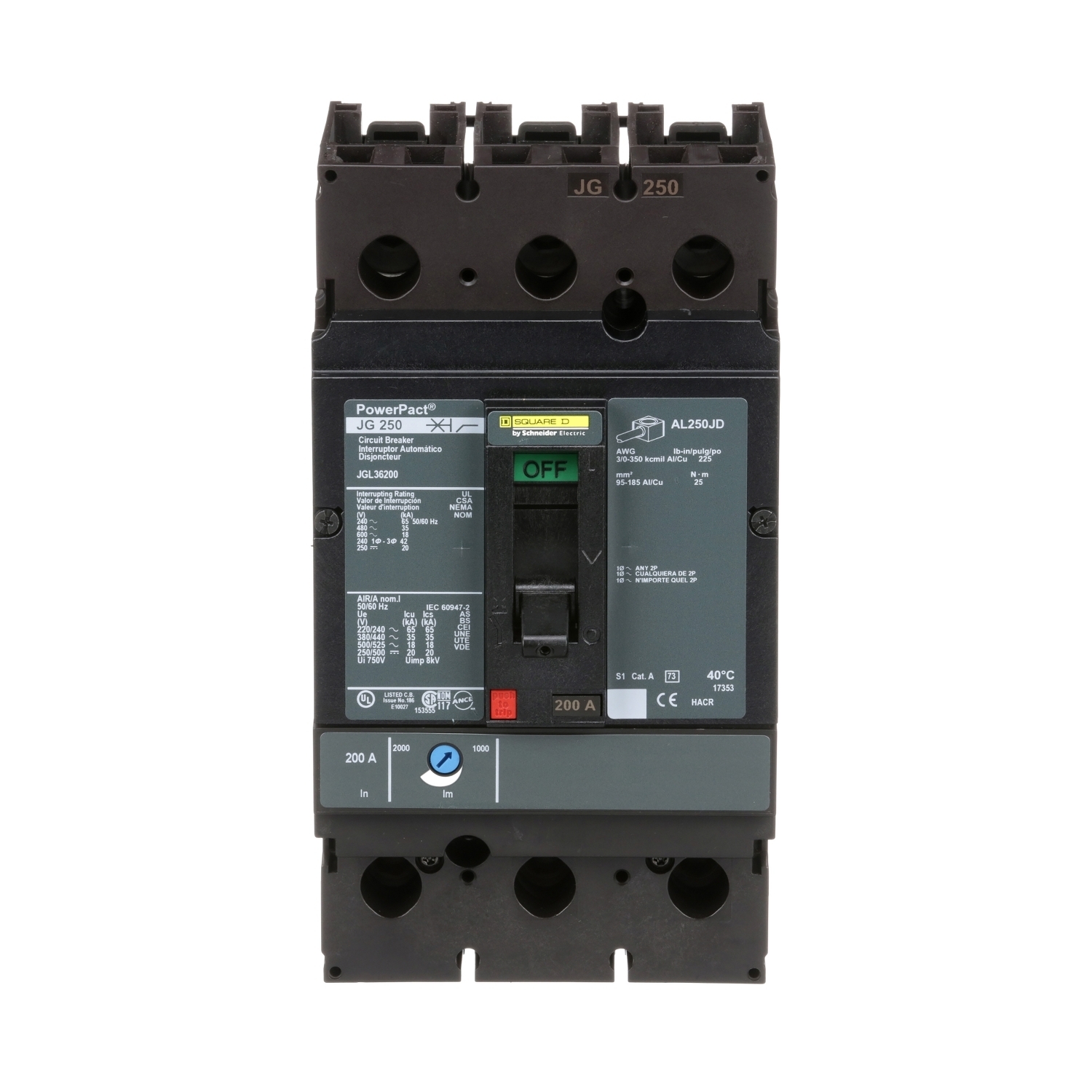

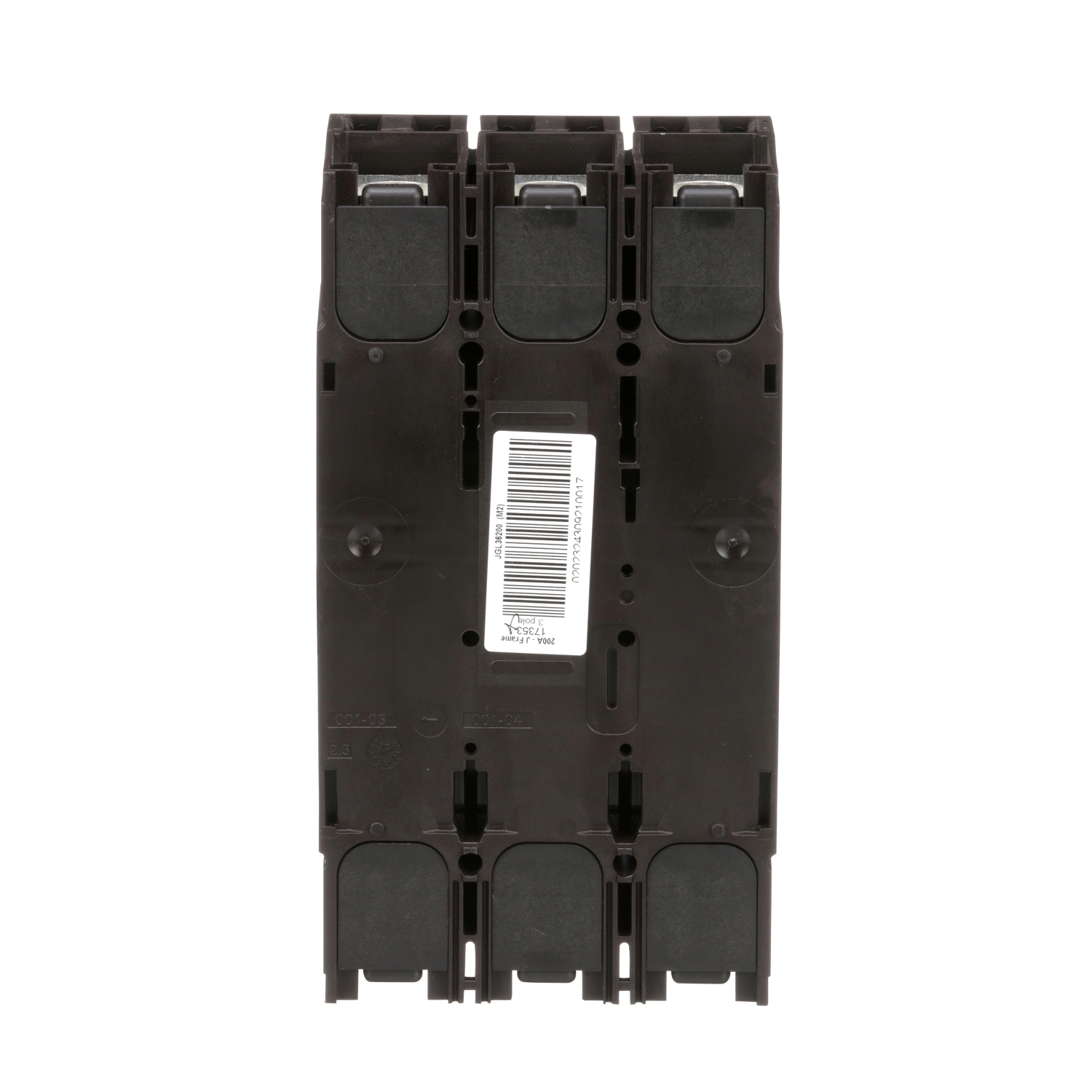

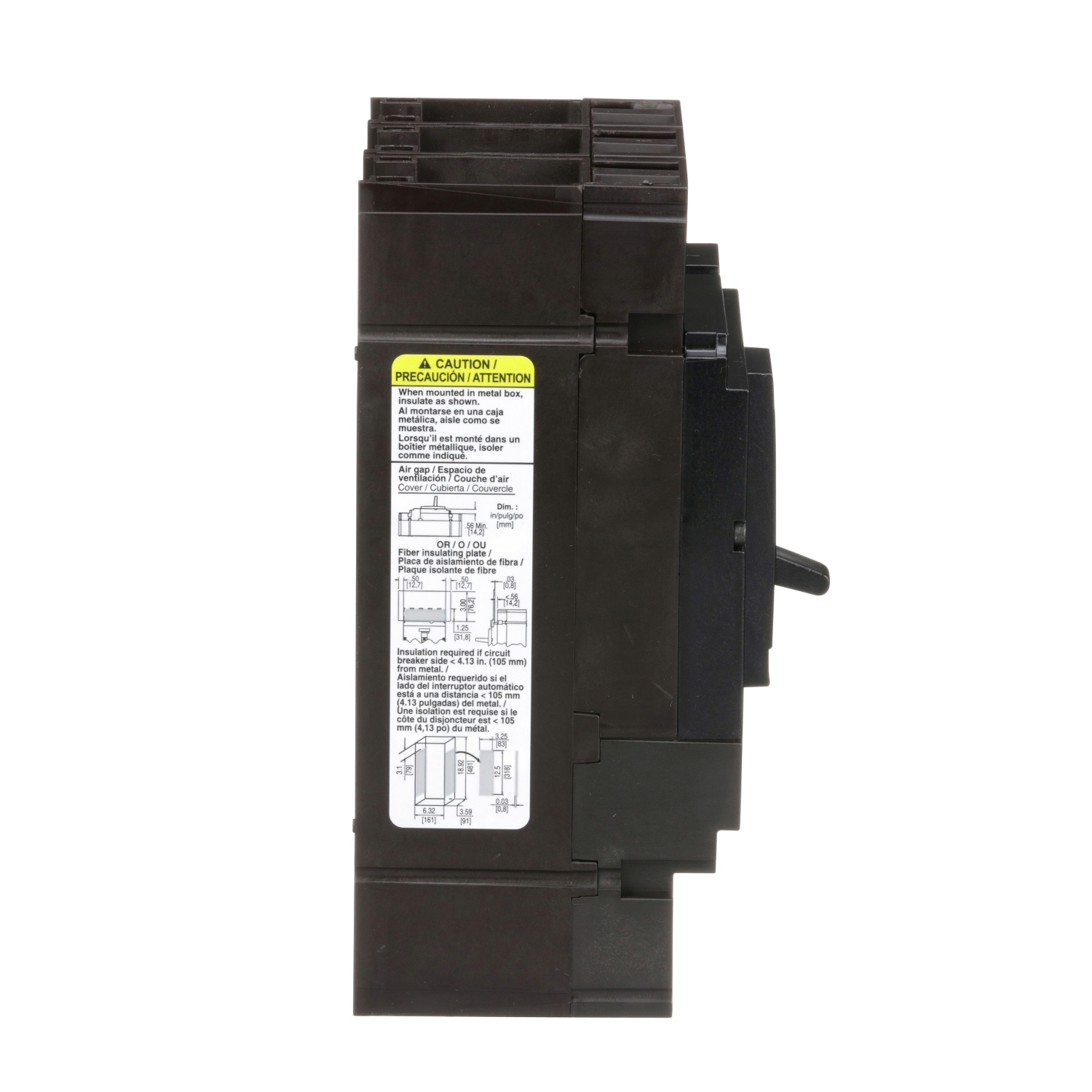

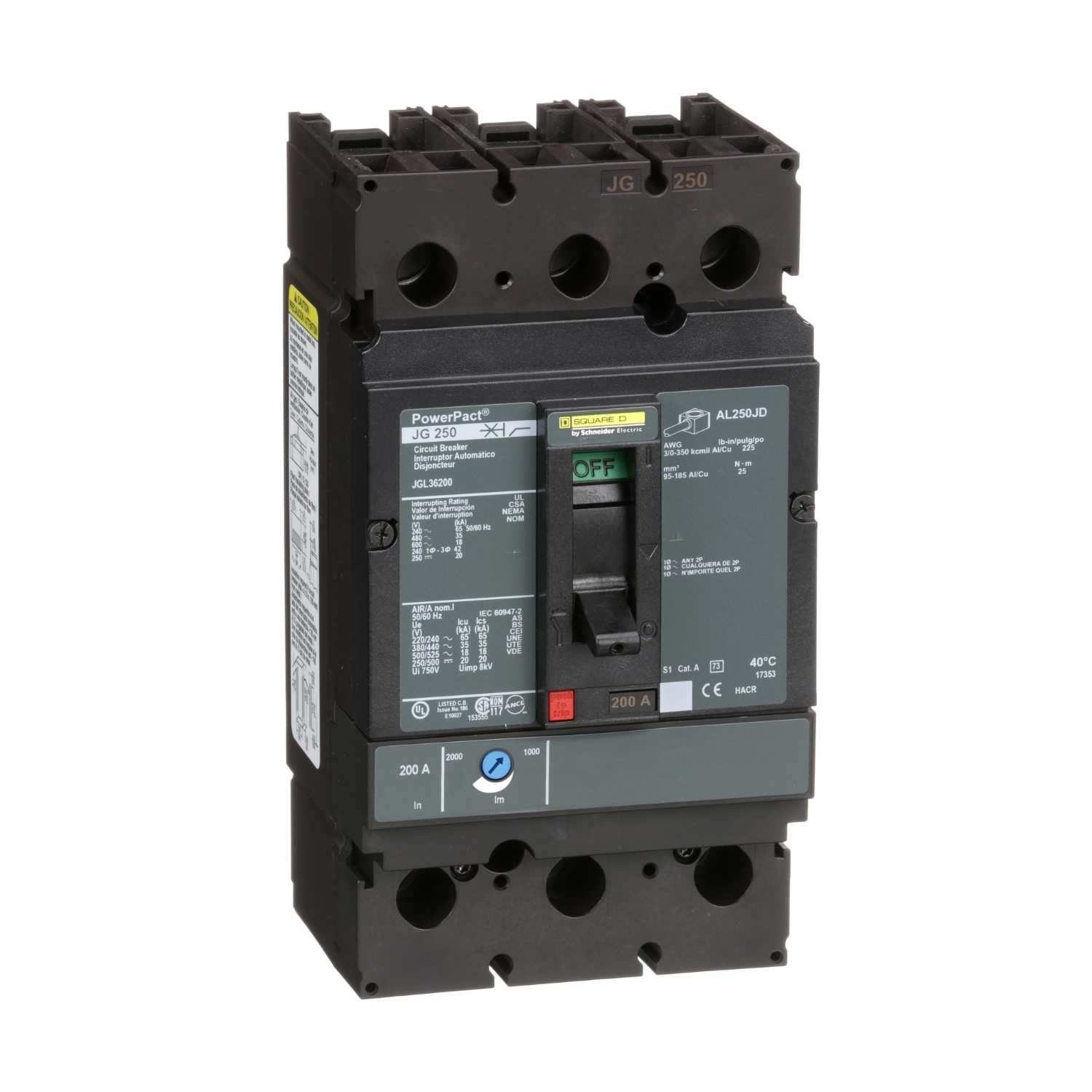

JGL36200 PowerPact Standard Type JGL Molded Case Circuit Breaker, 600 V AC/250 V DC, 200 A, 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC/20 kA at 250VDC Interrupt, 3 Poles, Thermal Magnetic Trip
- MFR:
- Schneider Electric
- MFR #:
- JGL36200
- UPC:
- 785901683216
- Item #:
- 135082
JGL36200 PowerPact Standard Type JGL Molded Case Circuit Breaker, 600 V AC/250 V DC, 200 A, 65 kA at 240 VAC/35 kA at 480 VAC/18 kA at 600 VAC/20 kA at 250VDC Interrupt, 3 Poles, Thermal Magnetic Trip
- MFR #:
- JGL36200
- UPC:
- 785901683216
- Item #:
- 135082
PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 200A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Manuals & Documentation
| Catalog Number | JGL36200 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Canada |
| Made in USA | No |
| Application | Distribution |
| Connection | Lugs, line;lugs, load; AWG 3/0...350 kcmil aluminium/copper terminals |
| Control | Toggle |
| Number of Poles | 3 |
| Special Features | Modbus;Ethernet |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=425661&lang=en-us |
| UPC | 785901683216 |
| GTIN | 00785901683216 |
| Item Type | Circuit breaker |
| Trip Type | Thermal-magnetic |
| Cross Reference Products | Eaton CHFD3200L|Eaton FD3200L|Eaton JGE3200FAG|Eaton JGS3200FAG|Eaton JGS3200FFG|Rockwell 140UK6D3D20|Rockwell ABT3N200TL|Rockwell CB2S200A|Rockwell T3N200TL|Schneider JGL36200 |
