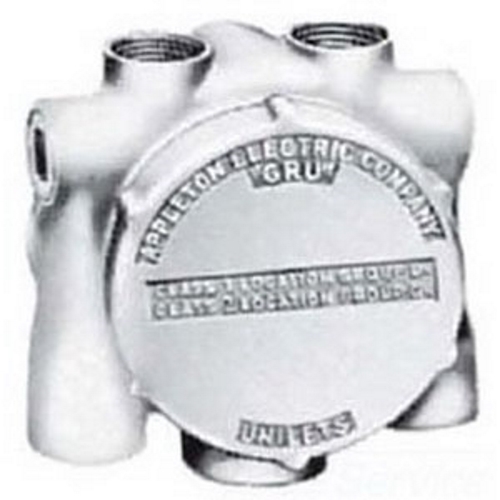

UNILETS GRUO Outlet Box, Number Of Outlet: 8, Material: Malleable Iron, Size: 3/4 - 1 IN, Cable Entry: (1) 3/4 IN Hub On Each Side, (2) 3/4 IN Hub On Top, (2) 3/4 IN Hub At Bottom, (1) 1 IN Hub At Bottom, (1) 3/4 IN Hub At Back, Cubic Capacity: 25 CU-IN, Knockouts: No, Cover Opening: 3-1/4 IN, Height: 5.13 IN, Width: 5-1/4 IN, Depth: 2.19 IN, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Standard: UL 886, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, 025875, 013017 Certified, Class I, Division 1 And 2, Groups C, D, Class II, Division 1 And 2, Groups E, F, G, Class III, For Use With Threaded Metal Conduit

Manuals & Documentation

Features

  • General purpose wiring
  • Smooth, rounded integral bushing in each hub type box protects conductor insulation
  • Complies with a wide range of classified area requirements
  • Connect conduit lengths and change direction of conduit runs
  • Furnished with eight conduit hubs and close-up plugs for all but three 3/4 Inch hubs
  • 8 outlets
Catalog Number GRUO-2
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Threaded Metal Conduit
Cable Entry (1) 3/4 IN Hub On Each Side, (2) 3/4 IN Hub On Top, (2) 3/4 IN Hub At Bottom, (1) 1 IN Hub At Bottom, (1) 3/4 IN Hub At Back
Cubic Capacity 25 CU IN
Knockouts No
Material Malleable Iron
Special Features Explosionproof, dust-ignitionproof; Malleable iron bodies have high tensile strength and ductility, provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with cover; General purpose wiring; Union hubs permit easy wiring; Externally threaded body with internally threaded cover; Smooth, rounded integral bushing in each hub type box protects conductor insulation; Complies with a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance; Furnished with eight conduit hubs and close-up plugs for all but three 3/4 IN hubs
Standard UL 886, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, 025875, 013017 Certified, Class I, Division 1 And 2, Groups C, D; Class II, Division 1 And 2, Groups E, F, G; Class III
RoHS Indicator Contact Manufacturer
UPC 781381446150
GTIN 00781381446150
Item Type GRUO Outlet Box
Length 7.0000
Length UOM Inch
Width 7.0000
Width UOM Inch
Height 4.0000
Height UOM Inch
Weight 4.480
Weight UOM Pounds
Size 3/4 - 1
