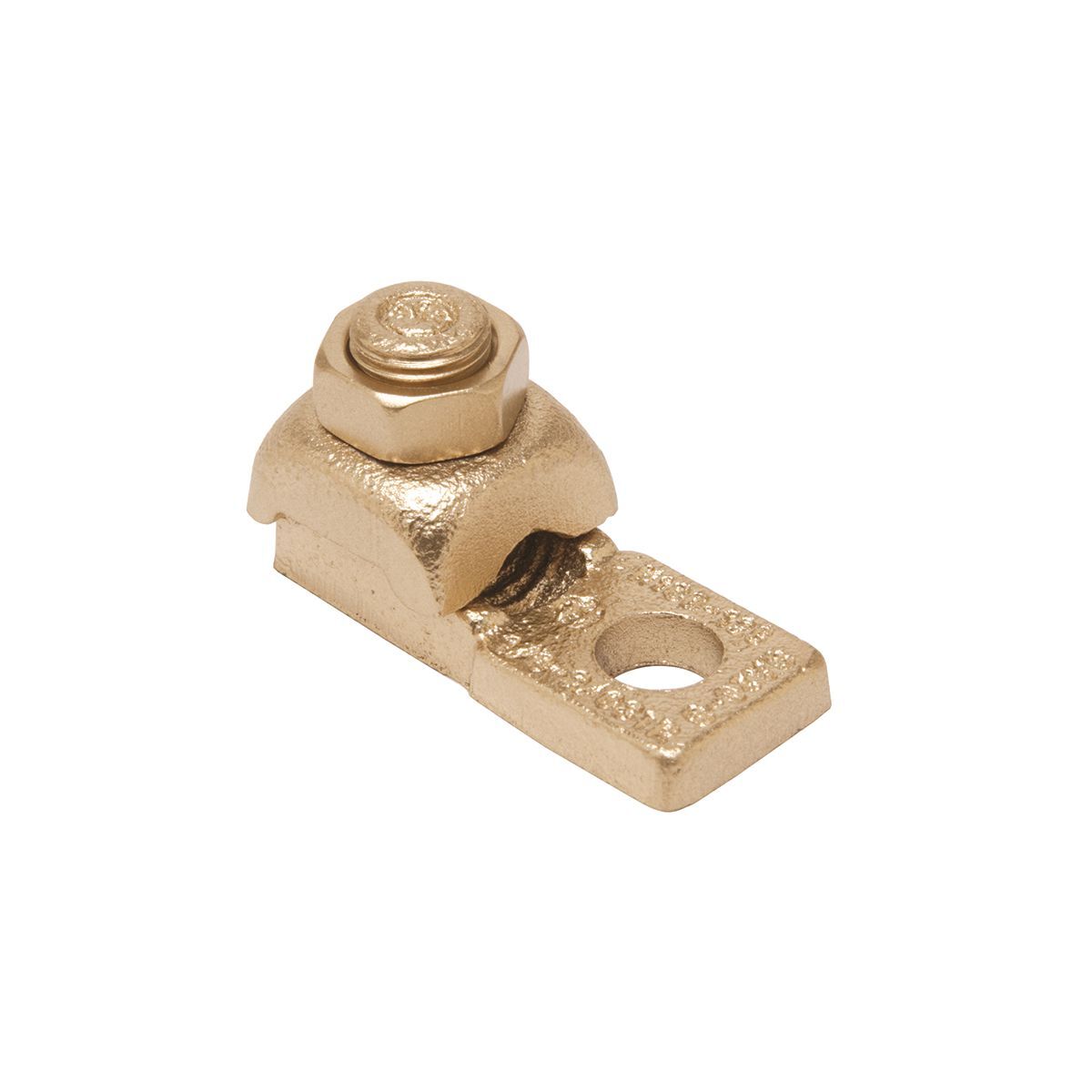

QA28B 1-Stage Heavy Duty Mechanical Bolted Lug and Terminal, 3/0 to 4/0 AWG Stranded Copper Conductor, 3/8 in Stud, 1 Bolt Hole, Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- QA28B
- UPC:
- 781810314760
- Item #:
- 132878
QA28B 1-Stage Heavy Duty Mechanical Bolted Lug and Terminal, 3/0 to 4/0 AWG Stranded Copper Conductor, 3/8 in Stud, 1 Bolt Hole, Copper
- MFR #:
- QA28B
- UPC:
- 781810314760
- Item #:
- 132878
Manuals & Documentation
| Catalog Number | QA28B |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Joining A Wide Range Of Cable To Equipment Pads Or Bar |
| Material | Copper |
| Special Features | Features: Heavy Duty, Compact, High Copper Alloy Terminal For Joining A Wide Range Of Cable To Equipment Pads Or Bar, Fast Onewrench Installation, Conductor Type: Run: Commercial Stranded Copper, Navy Copper, Stud/bolt Hole Size: 3/8 IN, Length: 2-1/4 IN, Installation Torque: 250 IN-LB, Dimension T: 1/4 IN, Width: 1 IN, Height: 1-5/16 IN, Tongue Width : 1 IN, Dimension D: 1-1/16 IN, Dimension K: 13/32 IN, Dimension N: 17/32 IN, Number Of Clamping Elements: 1 |
| Standard | UL 486A-486B |
| UPC | 781810314760 |
| GTIN | 00781810314760 |
| Item Type | Bolted Lugs & Terminals |
| Temperature Rating | 194 |
| Cross Reference Products | HL21-1 |
