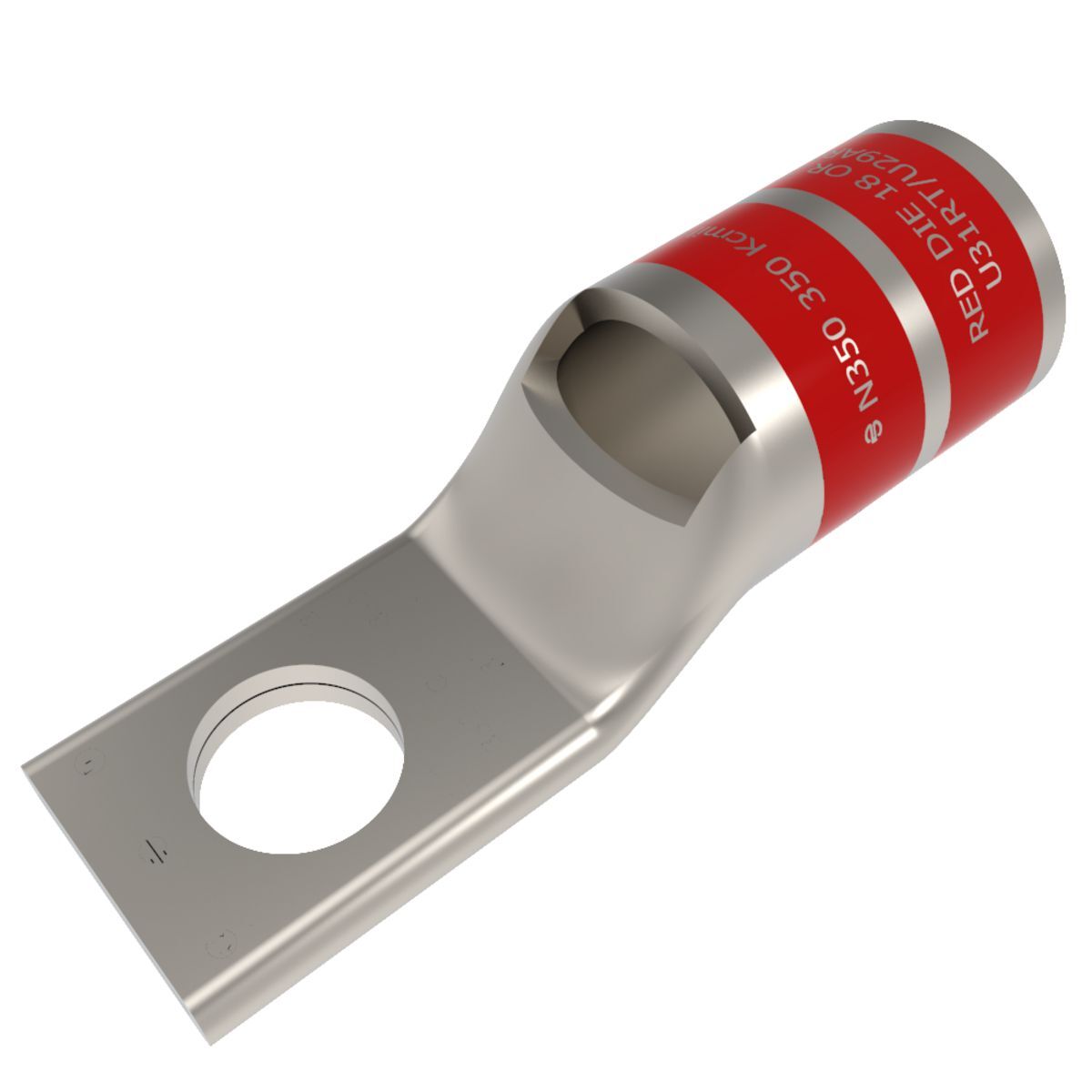

YA31LNT38 YA-L-NT 1-Hole Compression Lug With Inspection Window, 350 kcmil Stranded Copper Conductor, Die Code: 18, 3/8 in Stud, Copper
- MFR:
- Burndy, a Hubbell affiliate
- MFR #:
- YA31LNT38
- UPC:
- 781810018569
- Item #:
- 132323
YA31LNT38 YA-L-NT 1-Hole Compression Lug With Inspection Window, 350 kcmil Stranded Copper Conductor, Die Code: 18, 3/8 in Stud, Copper
- MFR #:
- YA31LNT38
- UPC:
- 781810018569
- Item #:
- 132323
Manuals & Documentation
| Catalog Number | YA31LNT38 |
| Manufacturer | Burndy, a Hubbell affiliate |
| Brand | BURNDY |
| Country of Origin | United States |
| Made in USA | Yes |
| Application | Wire Termination |
| Material | COPPER |
| Special Features | Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Wire Strip Length: 1-3/16 IN, Die Index: 18, Temperature Rating: 90 DEG C, Tongue Angle: Straight, Finish: Electro-Tin Plated, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W31VT Die, (4), Hydraulic: Y35, Y39, Y750, PAT750 Tool, U31RT Die, (2), Y46 Tool, U31RT Die With PUADP-1 Adapter, (2), Color Code: Red, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2), Conductor Type: Commercial Stranded Copper |
| Standard | UL 486A-486B |
| UPC | 781810018569 |
| GTIN | 00781810018569 |
| Item Type | YA-L-NT, Code Conductor Standard Barrel Narrow Tongue |
| Voltage Rating | 35 |
