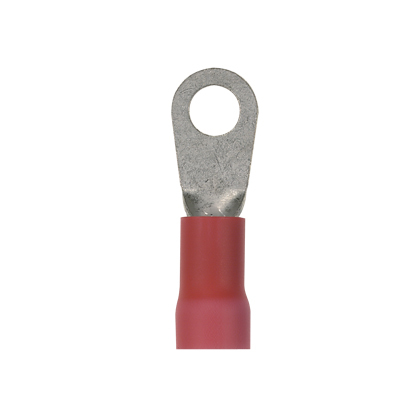

The PV8-10R-QY Pan-Term Terminal is a vinyl insulated, ring terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Internal barrel serrations assure good wire contact and maximum tensile strength.
Manuals & Documentation
| Catalog Number | PV8-10R-QY |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Red |
| Connection | Funnel Entry |
| Enclosure | Ring shape |
| Finish | Tin-Plated |
| Insulation | Vinyl |
| Material | Copper |
| Standard | cULus Listed 587H E52164, CSA Certified LR31212 |
| UPC | 074983695034 |
| GTIN | 00074983695034 |
| Item Type | Ring Terminal |
| Size | #10 |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #8 AWG |
| Cross Reference Products | 3M 14-10S-WP|3M E-01-401|3M E-01-701|3M MV8-10R/S|ABBInstall TV8-10R|Ilsco 44230-B5|McMaster 7113K449|Molex 19164-0080|Panduit PV8-10R-QY|TEConnect 172233-1 |
