SQUARE D

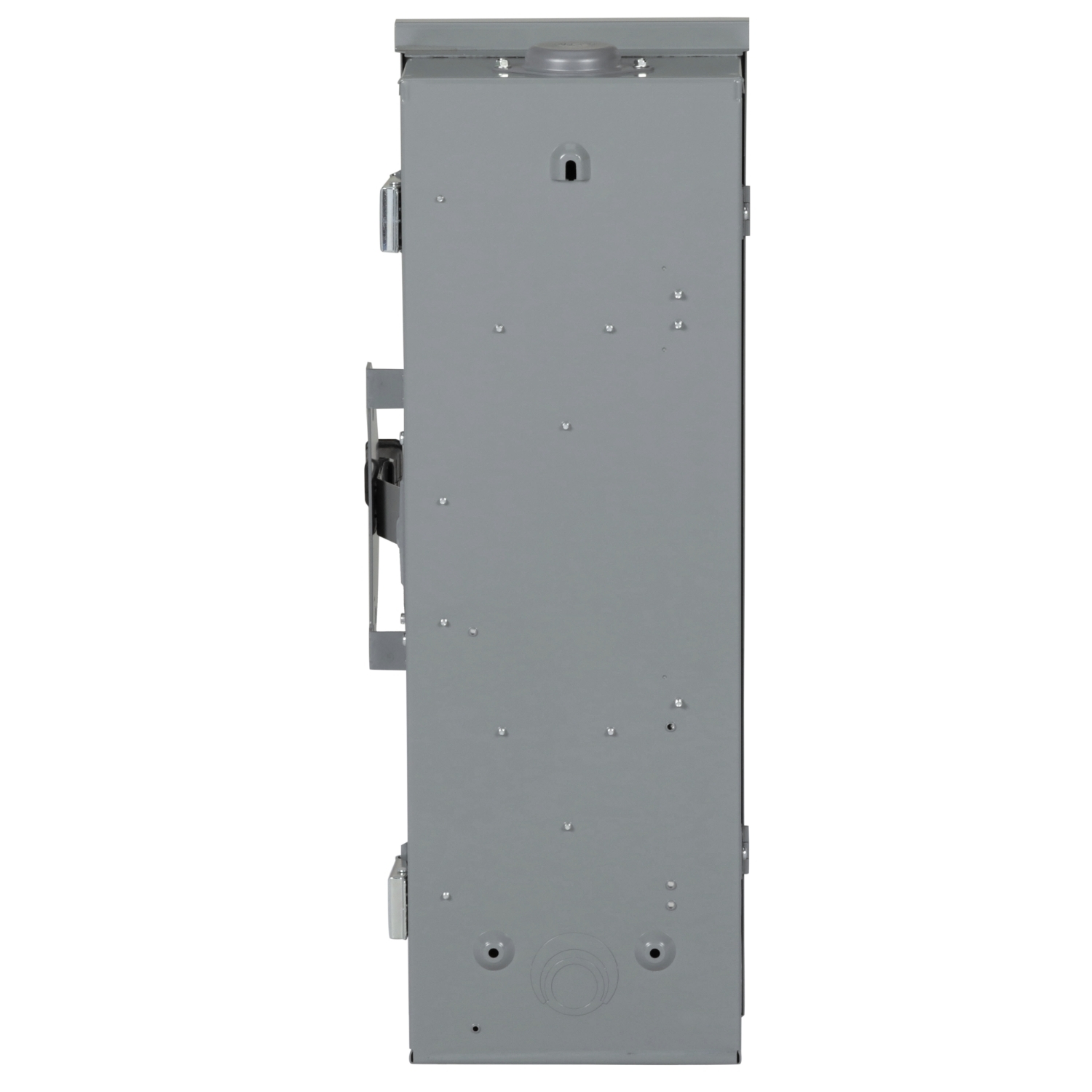

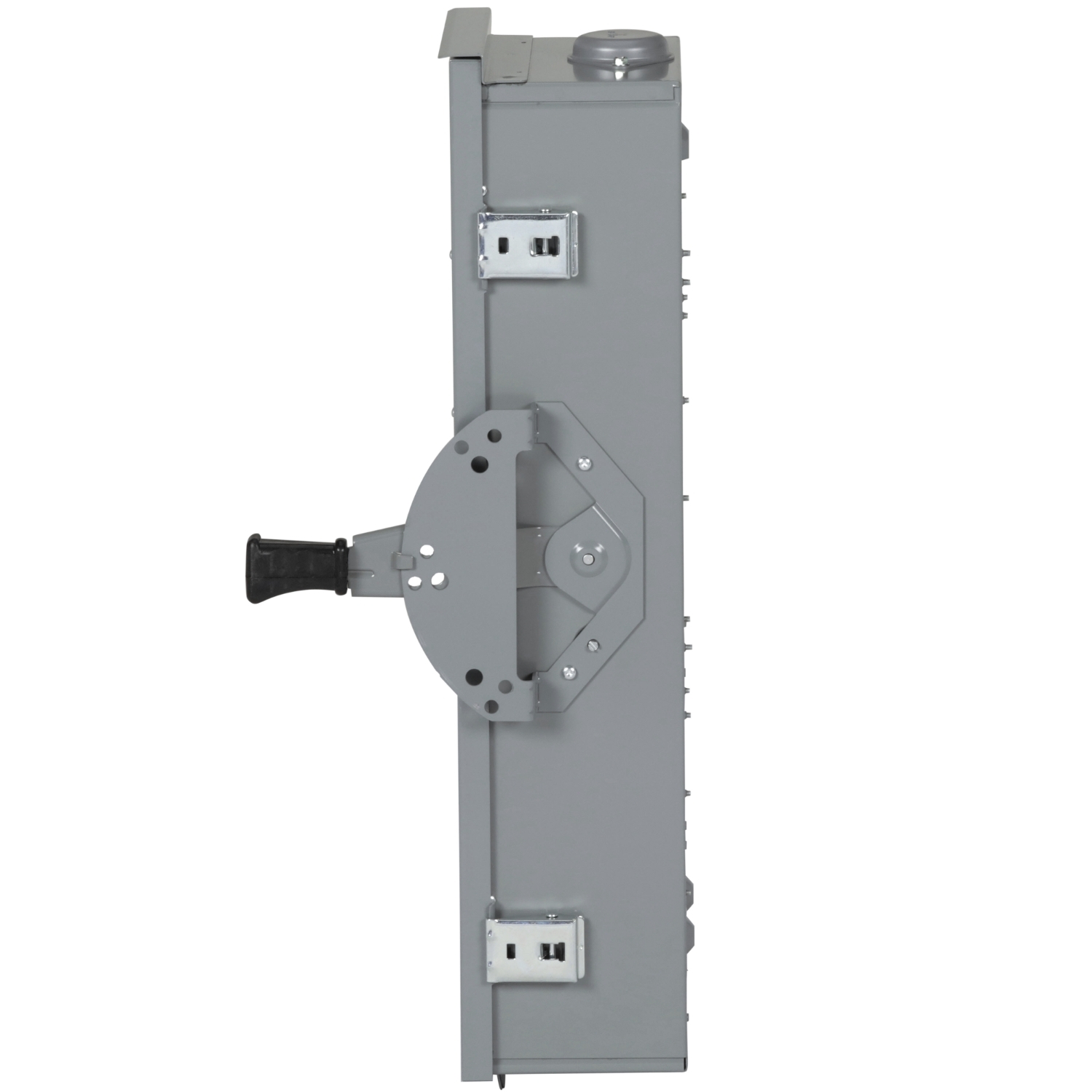

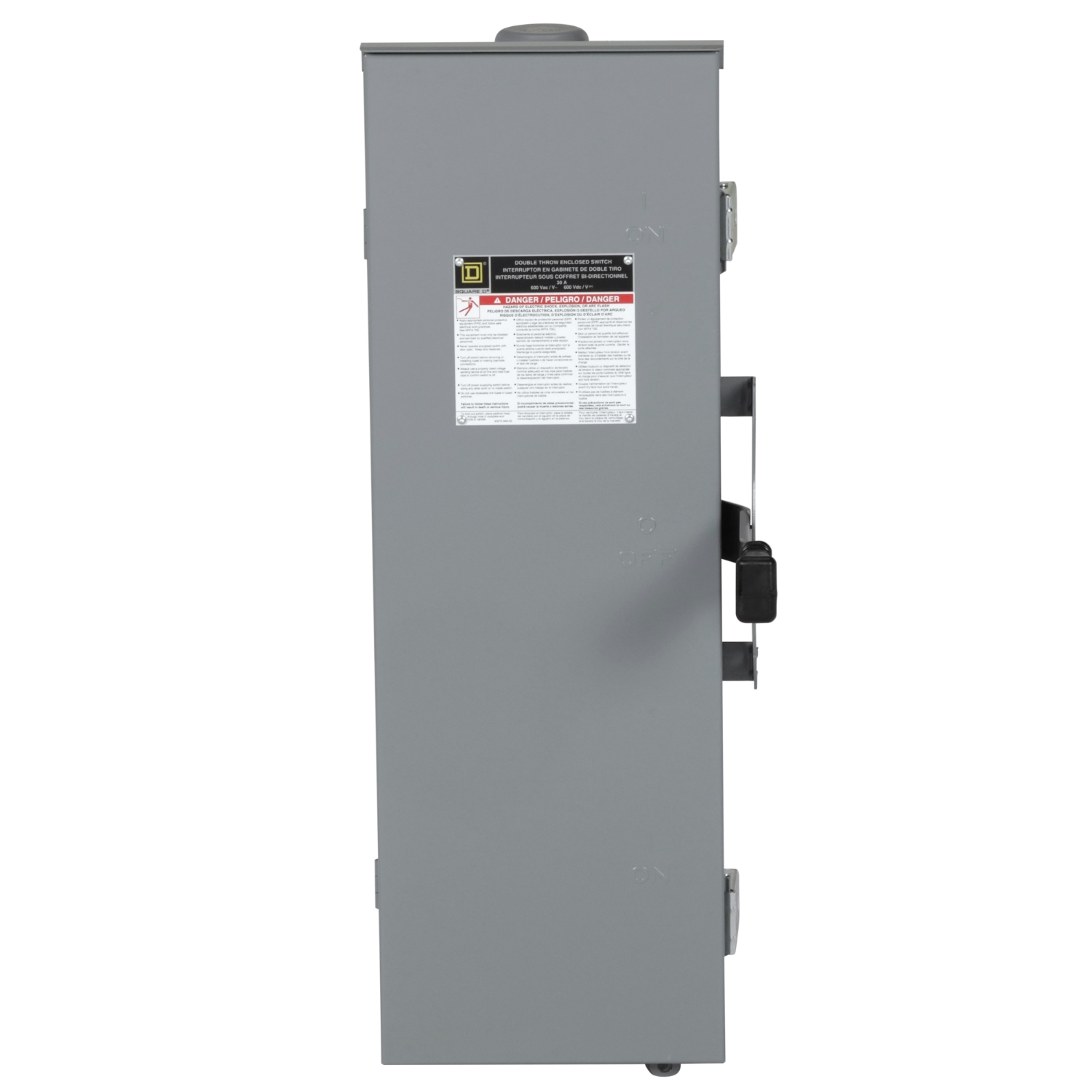

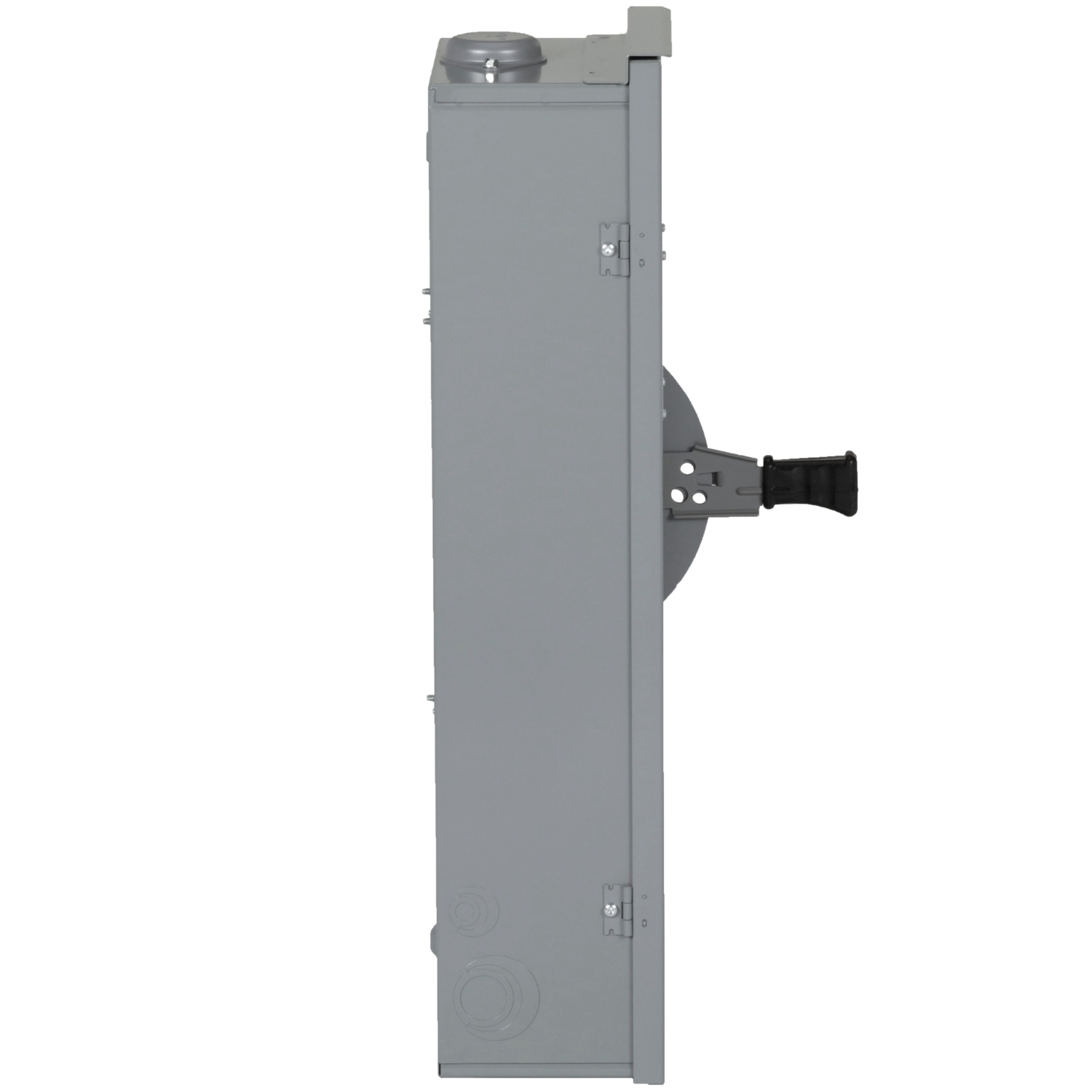

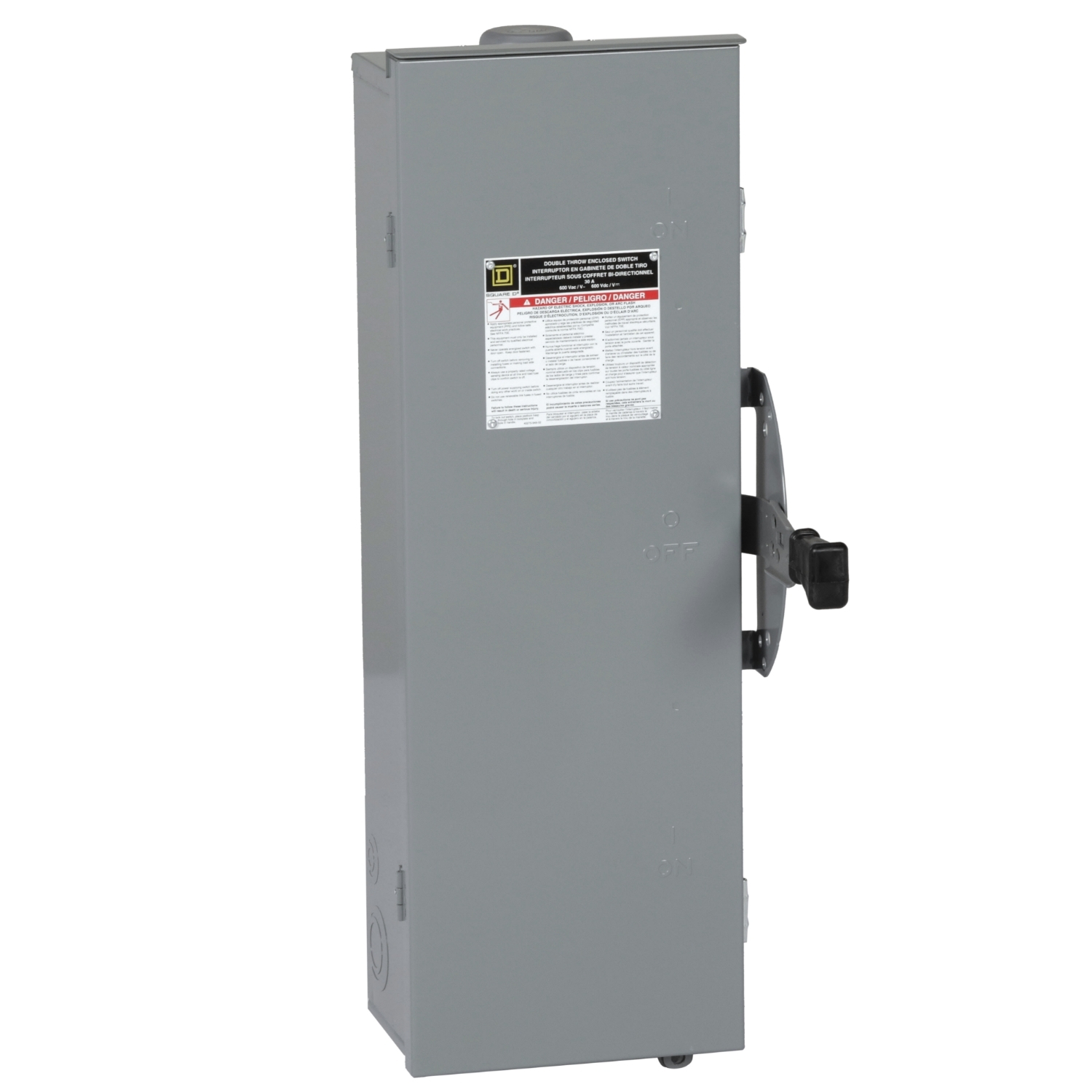

DTU361RB DT Series Double Throw Non-Fusible Iceproof Rainproof Sleetproof Safety Switch, 600 V AC/DC, 30 A, 10 hp, 15 hp, 30 hp, 3 Form C 3PDT Contact, 3 Poles

MFR:
Schneider Electric
MFR #:
DTU361RB
UPC:
785901308751
Item #:
130638

Schneider Electric's Square D double throw safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Double throw safety switches are designed for commercial, industrial, and manufacturing installations. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This double throw safety switch is a non fusible disconnect and has a rated current of 30A for 600VAC and 600VDC. This heavy duty switch has a 3 wire configuration with 3 poles. The enclosure is surface mounted and is a Type 3R with bolt on provisions. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and are UL listed.

Manuals & Documentation
Catalog Number DTU361RB
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Fuse Type H or K;R, J or T
Mounting Surface
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=363625&lang=en-us
UPC 785901308751
GTIN 00785901308751
Item Type Non-fusible disconnect switch;Double Throw Safety Switch
Width 10.45
Width UOM Inch
Height 30.5
Height UOM Inch
Depth 6.93 IN
