O-Z/Gedney

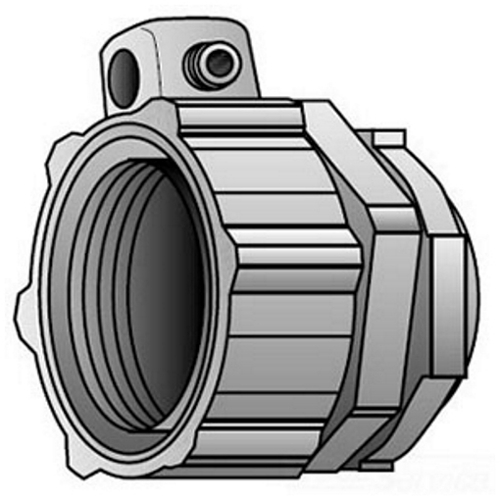

4Q-300L Ground-Tite Concretetight Liquid Tight Oiltight Positive Grounding Raintight Conduit Connector With Lug, 3 in Trade, 1 to 4/0 AWG Cable Openings, Straight, Malleable Iron, Zinc Electroplated

MFR:
O-Z/Gedney
MFR #:
4Q-300L
UPC:
783126617962
Item #:
129800
Manuals & Documentation
Catalog Number 4Q-300L
Manufacturer O-Z/Gedney
Brand O-Z/Gedney
Country of Origin Mexico
Made in USA No
Application For Liquidtight Flexible Metal Conduit
Conductor Range 36529
Connection Tapered MNPT Hub
Finish Zinc Electroplated
Material Malleable Iron Body And Nut, Steel Ferrule
NEMA Rating 4
Special Features 4Q-L fittings have plain throat (non-insulated); Used to secure, ground and seal liquidtight flexible metal conduit to boxes and enclosures; Hot dip or mechanically galvanized finish optionally available; Positive grounding type; Grounding lug is cast as an integral part of malleable iron gland nut; capable of withstanding high ground fault; Compact, slim diameter with small turning radius; Furnished with locknut and knockout sealing ring; Liquidtight/raintight/oiltight/concretetight; UL listed NEMA type 4 when installed into a NPT threaded entry or UL listed conduit hub (sizes 1-1/4 IN and larger require thread sealant); Intrinsically safe; Bonding wedge locknuts are recommended in hazardous locations; Long ferrule prevents pullout and tight bend conduit pop-out; Inspection windows in ferrule to ensure full engagement
Standard Third Party Certification: UL File Number E-24264, CSA 9795, Applicable Third Party Standards: UL 467, CSA C22.2 No.41, Federal Specification W-F-406E, NEMA : FB-1, Hazardous Locations: Class I, Division 2 Per NEC 501.4(B), Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Division 1 Per NEC 502.4(A)(1)(e), Class II, Division 2 Per NEC 502.4(B)(2), Class III, Division 1 Per NEC 503.3(A)(2), Class III, Division 2 Per NEC 503.3(B), Intrinsically Safe Per NEC 504.20
UPC 783126617962
GTIN 00783126617962
Item Type Type 4Q-L Grounding Liquid Tight Straight Connector With Lug
Size 3
