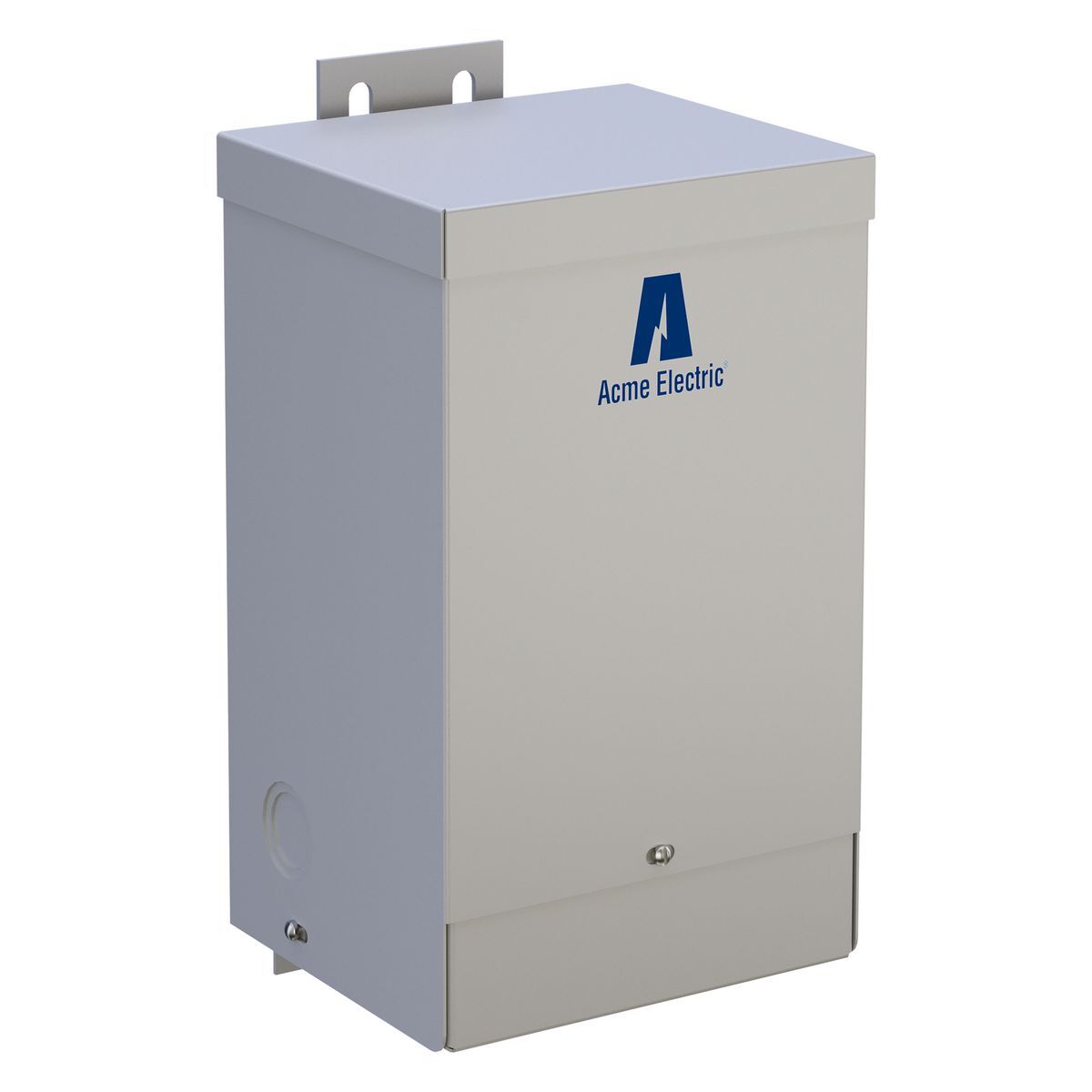

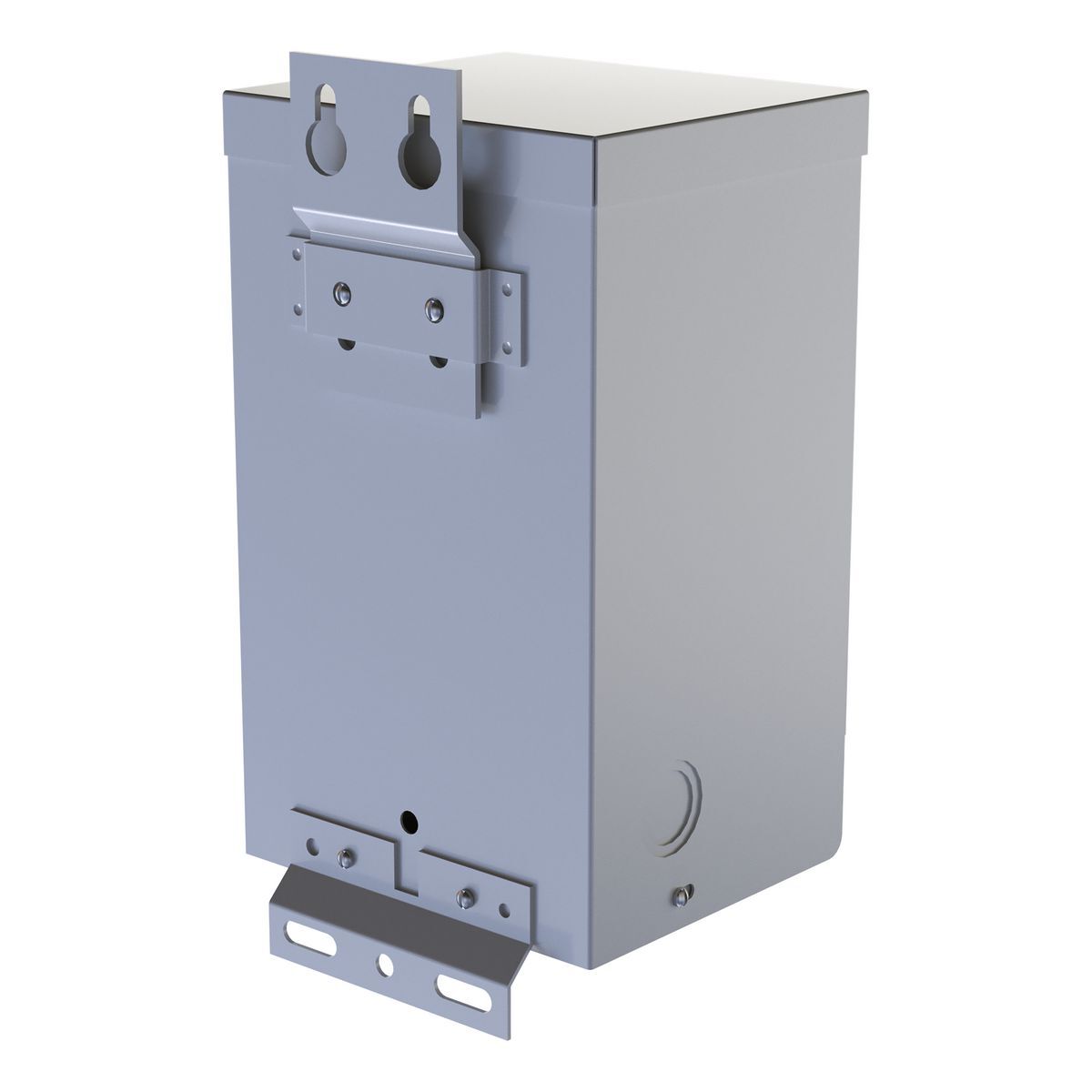

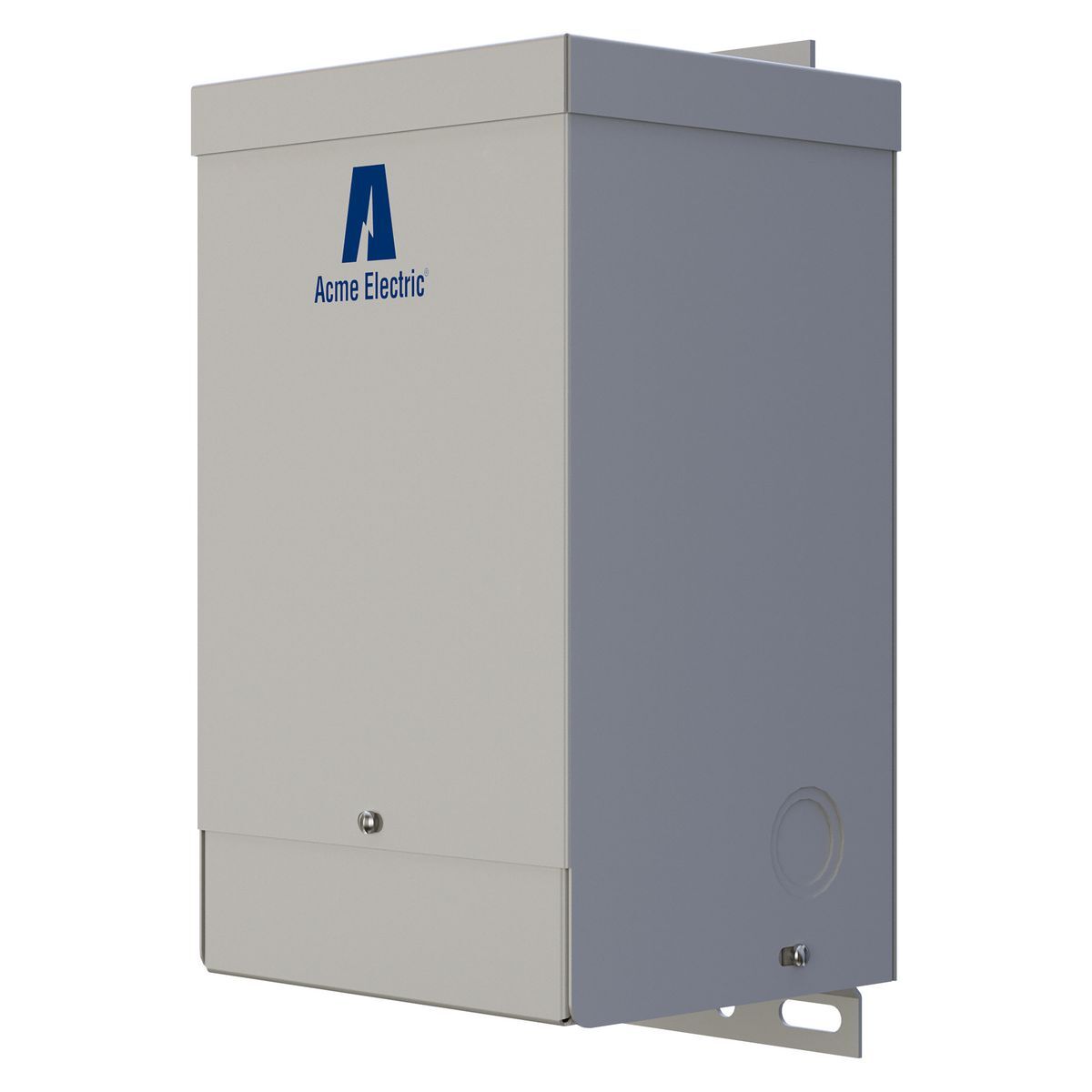

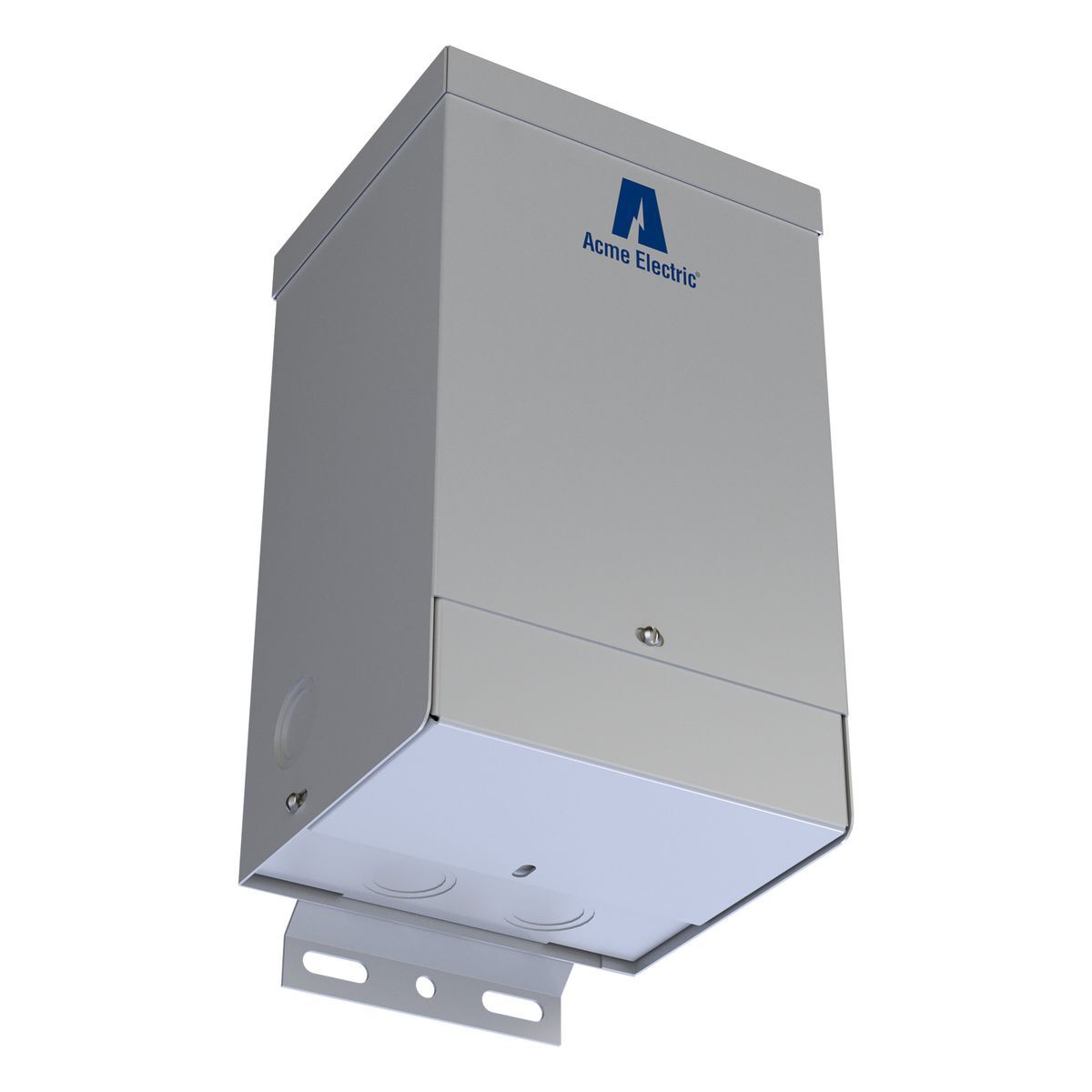

T113074 Encapsulated Buck Boost Transformer, 120/240 V AC Primary, 16/32 VDC Secondary, 22.5 kVA Power Rating, 60 Hz, 1 Phase

MFR:
Acme Electric, a Hubbell affiliate
MFR #:
T113074
UPC:
047503086469
Item #:
129661
Manuals & Documentation
Catalog Number T113074
Manufacturer Acme Electric, a Hubbell affiliate
Brand ACME ELECTRIC
Country of Origin Mexico
Made in USA No
Application For Low Voltage Lighting Or Control Circuitry
Connection Wire Lead Screw Terminal
Enclosure NEMA 3R Steel
Frequency Rating 60 HZ
Insulation Class 180 DEG C Class H
Mounting Wall
Phase 1
Primary Voltage 120 X 240 V
Secondary Voltage 16/32 V
Special Features Encapsulated core and coil; Buck-boost transformers are small single phase transformers designed to reduce (buck) or raise (boost) line voltage from 5 - 20 PCT; The most common example is boosting 208 - 230 V, usually to operate a 230 V motor such as an air-conditioner compressor, from a 208 V supply line; Buck-boost transformers are an economical way to correct a potentially very serious problem; Anytime a line voltage change in the 5 - 20 PCT range is required, a buck-boost transformer should be considered as your first line of defense; 10-year limited warranty
Standard UL 506, UL File Number E79947V1, UL Control Number 50B8, UL Insulation Number X3221, CSA Certified, OSHA Compliant, ANSI, IEEE
UPC 047503086469
GTIN 00047503086469
Item Type Buck-Boost Transformer
Length 5.13
Length UOM Inch
Width 5.5
Width UOM Inch
Height 11.62
Height UOM Inch
Temperature Rating 115 DEG C Rise
