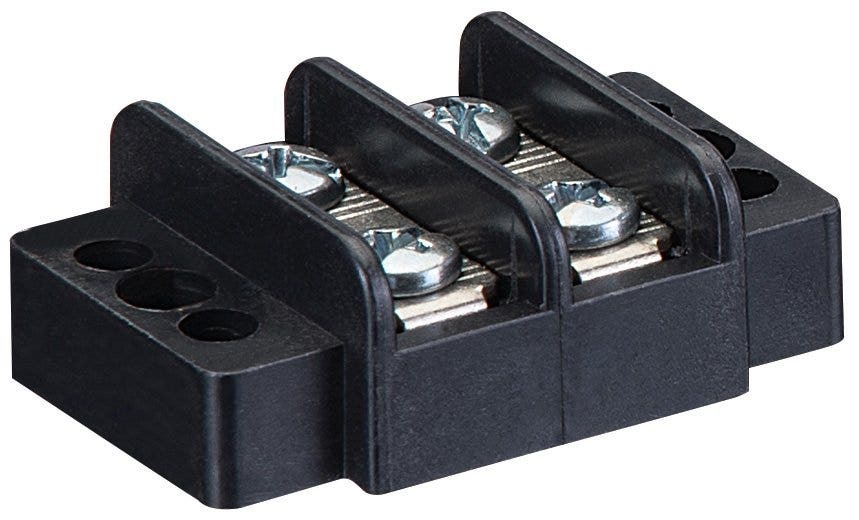

89-412 1-Stage Heavy Duty Terminal Strip, 250 V AC, 20 A, 22 to 12 AWG Wire
- MFR:
- Ideal Industries
- MFR #:
- 89-412
- UPC:
- 783250894123
- Item #:
- 129652
89-412 1-Stage Heavy Duty Terminal Strip, 250 V AC, 20 A, 22 to 12 AWG Wire
- MFR #:
- 89-412
- UPC:
- 783250894123
- Item #:
- 129652
IDEAL Terminal Strips are designed and manufactured to be rugged, reliable, and easy to use. A thermoplastic base and corrosion-resistant screws and hardware provide extended service life. Optional accessories provide convenient, versatile application. Available in a wide variety of circuit configurations, electrical ratings and center spacings, an IDEAL terminal strip is available for virtually any job.
Manuals & Documentation
| Catalog Number | 89-412 |
| Manufacturer | Ideal Industries |
| Brand | Ideal |
| Country of Origin | United States |
| Made in USA | Yes |
| Amperage Rating | 20 |
| Material | Zinc-Plated Steel Screw |
| Special Features | Features: Torque Rating of 9 in-lbs; Rugged base eliminates breakage; Center spacing 0.437 IN (11.1 mm); Accepts #22 to #14 AWG wire; Corrosion resistant surface plates w/ #6-32 philslot screws; Rated to 250V, 20A; Accessory jumpers available; Heavy-duty, corrosion-resistant screws, surface plates and optional hardware; Accessory hardware provides a variety of termination options; Available cover helps prevent contact with live terminals; Rugged polyester thermoplastic base (UL Rated 94V-0); Operating temperature rated from 130 Degrees C (260 Degrees F) to -40 Degrees C (-40 Degrees F); UL Recognized (E62622) and CSA Certified (LR15364).; Number Of Circuits: 12; Torque Rating: 9 IN-LB; Terminal Screw Size: 12 |
| Standard | CSA, UL Listed, RoHS |
| RoHS URL | https://www.ideadigitalcontent.com/files/11020/US_ROHS_COMPLIANCE_STATEMENT_REV_2_23_2015.PDF |
| UPC | 783250894123 |
| GTIN | 00783250894123 |
| Voltage Rating | 250 |
| Wire Size | 22 - 12 AWG |
