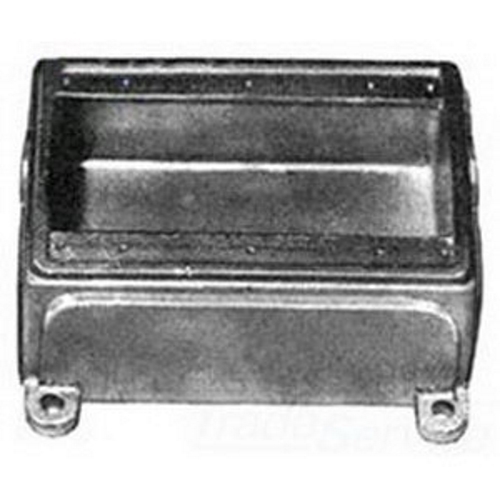

FDB-3GL Unilets Type FDB Deep Thick Wall Device Box With Internal Ground Screw, Malleable Iron, 62 cu-in Capacity, 3 Gangs, 5 in H x 6.88 in W x 2.69 in D
- MFR:
- Appleton Electric
- MFR #:
- FDB-3GL
- UPC:
- 781381332668
- Item #:
- 128797
FDB-3GL Unilets Type FDB Deep Thick Wall Device Box With Internal Ground Screw, Malleable Iron, 62 cu-in Capacity, 3 Gangs, 5 in H x 6.88 in W x 2.69 in D
- MFR #:
- FDB-3GL
- UPC:
- 781381332668
- Item #:
- 128797
UNILETS FDB Deep Depth 3-Gang Cast Device Box, Material: Malleable Iron, Mounting: Lugs, Knockouts: No, Height: 5 IN, Width: 6.44 IN, Depth: 2.69 IN, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Standard: UL 514 A, UL File Number E2527, NEMA FB-1, For Use With Threaded Metal Conduit And IMC
Manuals & Documentation
Features
- Size: 6.880 Inch Width x 2.690 Inch Depth x 5 Inch Height
- Blank bodies for special conduit entrance arrangements
- FD boxes take standard flush wiring devices
- Complete selection of covers, receptacles, plugs, gaskets and accessories
- Internal grounding screws standard
- May be drilled and tapped in back of box (wall opposite cover) as well as top, bottom and sides
| Catalog Number | FDB-3GL |
| Manufacturer | Appleton Electric |
| Brand | Appleton |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | For Use With Threaded Metal Conduit And IMC |
| Knockouts | No |
| Material | Malleable Iron |
| Mounting | Lugs |
| Special Features | Corrosion-resistant ideal for indoor and outdoor installations; Weatherproof, raintight and dust-tight when used with cast gasketed covers; Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock; Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit; Accurately tapped, tapered threads for tight, rigid joints, ground continuity; Internal grounding screws standard; Accommodate wiring devices such as switches and receptacles; Provide excellent service in areas where boxes are subject to rough usage; Serve as pull boxes for conductors; Permit access to conductors for maintenance; Provide openings for making splices; |
| Standard | UL 514 A, UL File Number E2527, NEMA FB-1 |
| RoHS Indicator | Contact Manufacturer |
| UPC | 781381332668 |
| GTIN | 00781381332668 |
| Item Type | FDB Deep Depth 3-Gang Cast Device Box |
| Length | 7.0000 |
| Length UOM | Inch |
| Width | 5.9000 |
| Width UOM | Inch |
| Height | 2.7000 |
| Height UOM | Inch |
| Weight | 9.000 |
| Weight UOM | Pounds |
