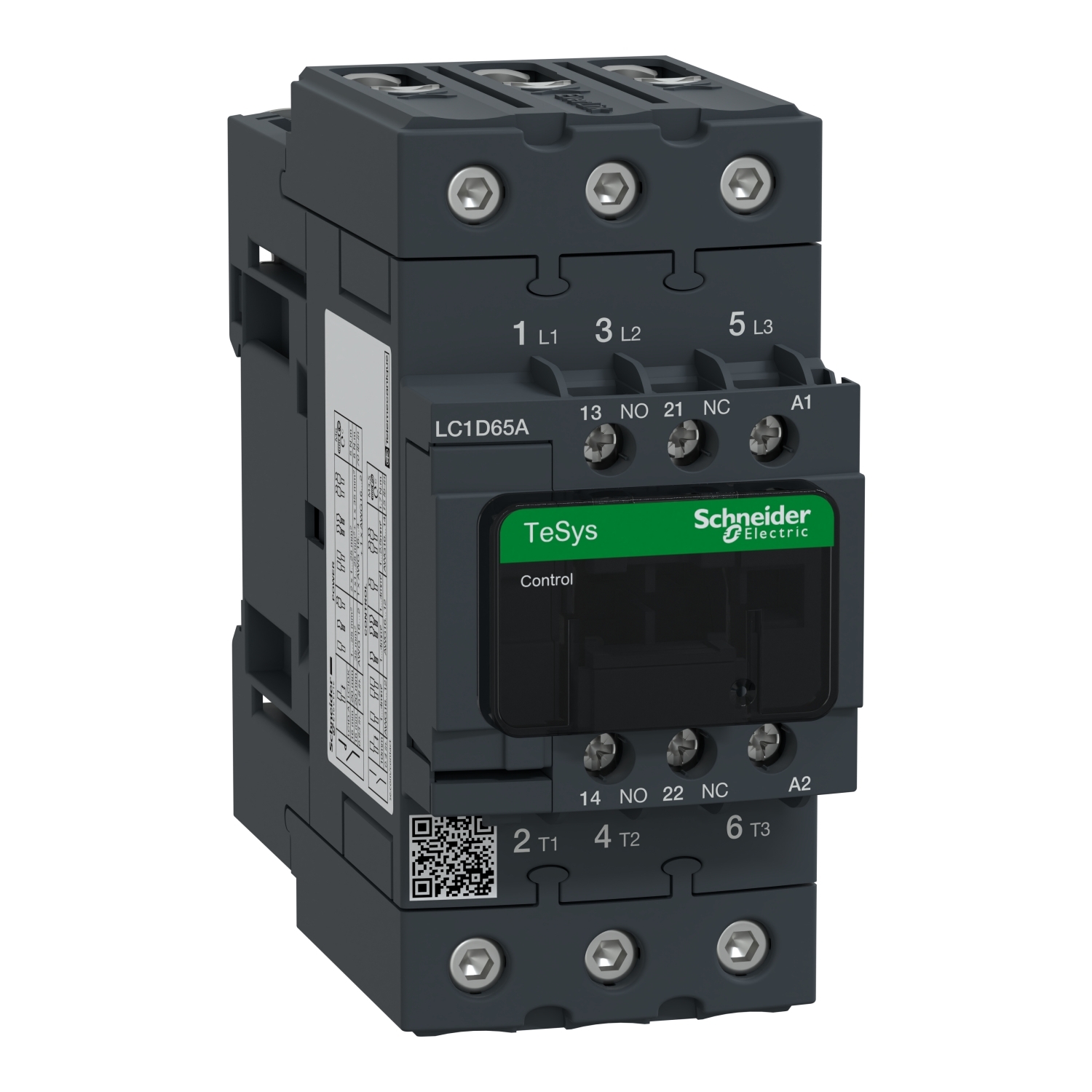

LC1D65AG7 LC1D D-Line Standard IEC Contactor, 120/690 V AC, 300 V DC V Coil, 65/80 A, 3NO Contact, 3 Poles
- MFR:
- Schneider Electric
- MFR #:
- LC1D65AG7
- Item #:
- 128649
LC1D65AG7 LC1D D-Line Standard IEC Contactor, 120/690 V AC, 300 V DC V Coil, 65/80 A, 3NO Contact, 3 Poles
- MFR #:
- LC1D65AG7
- Item #:
- 128649
IEC contactor, TeSys D, nonreversing, 65A, 40HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 120VAC 50/60Hz coil, open
Manuals & Documentation
| Catalog Number | LC1D65AG7 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Indonesia |
| Made in USA | No |
| Application | Motor control;resistive load |
| Coil Voltage | 120 V AC 60 Hz |
| Connection | Control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end;control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end;control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end;power circuit: screw connection 1 1-35 mm² - cable stiffness: flexible without cable end;power circuit: screw connection 2 1-25 mm² - cable stiffness: flexible without cable end;power circuit: screw connection 1 1-35 mm² - cable stiffness: flexible with cable end;power circuit: screw connection 2 1-25 mm² - cable stiffness: flexible with cable end;power circuit: screw connection 1 1-35 mm² - cable stiffness: solid without cable end;power circuit: screw connect |
| Contact Configuration | 1 NO + 1 NC;3 NO;Mechanically linked 1 NO + 1 NC IEC 60947-5-1;mirror contact 1 NC IEC 60947-4-1 |
| Mounting | Rail Plate |
| Operating Cycles | 25...400 Hz |
| Special Features | Without built-in suppressor module |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1472911&lang=en-us |
| GTIN | 03389119408998 |
| Item Type | Contactor |
| Cross Reference Products | AutoDirect SCE3110VAC|Eaton A50301184|Furnas 42EF35AF|IDEC YC1U-65A120|Rockwell 100A60ND3|Rockwell 100C60D10|Rockwell A185301186|Schneider LC1D50G7|Siemens CA78510120|Telemecan LC1D50G7 |
