Appleton

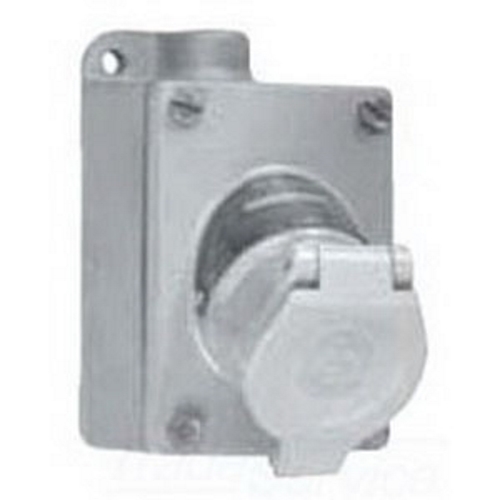

U-Line; Contender; 1-Gang Receptacle with Mounting Box; 20 Amp, 125 Volt AC, 3-Pole, 2-Wire, 3/4 Inch Dead-End Hub

MFR:
Appleton Electric
MFR #:
ENR21201
UPC:
781381815369
Item #:
128541

U-Line Contender 1-Gang Receptacle With Mounting Box, Number Of Poles: 3, Number Of Wires: 2, Amperage Rating: 20 AMP, Voltage Rating: 125 VAC, Material: Copperfree (4/10 Of 1 PCT Maximum) Aluminum Cover, Malleable Iron Mounting Box, Nem

Manuals & Documentation
Catalog Number ENR21201
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Amperage Rating 20
Application For ECP Mating Plugs
Material Copperfree (4/10 Of 1 PCT Maximum) Aluminum Cover, Malleable Iron Mounting Box
Mounting Surface
NEMA Rating 3R
Number of Outlets 1
Number of Poles 3
Number of Wires 2
Special Features Explosionproof, dust-ignitionproof; Covers are UL Listed when used with Contender series back boxes; Insulators provide superior dielectric and mechanical strength and lowest arc tracking; Fiberglass reinforced thermoset polyester insulating blocks; Dead front design: receptacle is not energized until plug is fully inserted and switch is engaged; ECP plug fits U-Line explosionproof receptacles; U-Line Contender receptacles only available for use in combination with 1- and 2-gang EDS boxes incorporating such devices as pilot lights, switches and push buttons; For lighting systems, conveyors, heaters, motor-generator sets, air conditioners, compressors, pumps
Standard Class I, Groups C, D; Class I, Division 2, Group B; Class I, Zone 1, Group IIB; Class I, Zone 2, Group IIB + H2; Class II, Groups F, G; Class III; UL Listed: E10784; UL 1203, UL 1010, UL 894
UPC 781381815369
GTIN 00781381815369
Item Type 1-Gang Receptacle With Mounting Box
Voltage Rating 125
