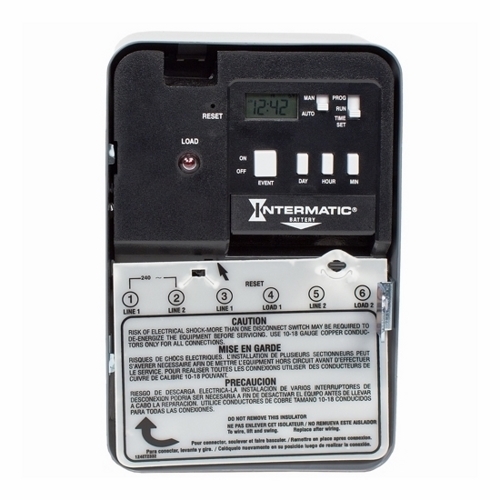

EH10 EH Series Electronic Water Heater Timer, 1 min to 7 days Setting, 120 V AC, 1 hp, 1NO 1 Form A SPST Contact, 1 Poles
- MFR:
- Intermatic
- MFR #:
- EH10
- UPC:
- 078275042896
- Item #:
- 128492
EH10 EH Series Electronic Water Heater Timer, 1 min to 7 days Setting, 120 V AC, 1 hp, 1NO 1 Form A SPST Contact, 1 Poles
- MFR #:
- EH10
- UPC:
- 078275042896
- Item #:
- 128492
The EH Series Electronic Time Switches provide control for electric water heaters with to-the-minute accuracy in programming and time-keeping. The use of a water heater timer allows the customer to shift electricity use to "off-peak" time periods to reduce utility costs. These time switches can be programmed for repeat daily scheduling, 5-day work week scheduling, weekend scheduling or individual day scheduling. Models are available for both 120 and 240 VAC applications.
Manuals & Documentation
| Catalog Number | EH10 |
| Manufacturer | Intermatic |
| Brand | Intermatic |
| Country of Origin | China |
| Made in USA | No |
| Action | 1 x SPST |
| Amperage Rating | 30 |
| Application | Water Heaters, Indoor, HVACR |
| Connection | Teeter Type |
| Contact Configuration | 1 NO |
| Contact Rating | 30 AMP @ 120 VAC (Inductive), 30 AMP @ 120 VAC (Resistive), 5 AMP @ 120 VAC (Tungsten) |
| Enclosure | NEMA 1 |
| Mounting | Wall |
| Number of Poles | 1 |
| Special Features | Features: 42 ON/OFF Events Per Week, To-the-Minute Programming and Time-Keeping Accuracy, External Override Switch, LED Load Indicator, Replaceable Battery Backup, 1 Year Warranty |
| Standard | cCSAus Certified LR3730, HVACR |
| UPC | 078275042896 |
| GTIN | 00078275042896 |
| Item Type | Electronic |
| Size | 7-3/4 HEIGHT X 5 WIDTH X 3 DEPTH IN, 19.7 HEIGHT X 12.7 WIDTH X 7.62 DEPTH CM |
| Operating Temperature | -40 to +104 DEG F, -40 to +40DEG C |
| Timing Range | 1 MIN - 7 DAYS |
| Voltage Rating | 120 |
