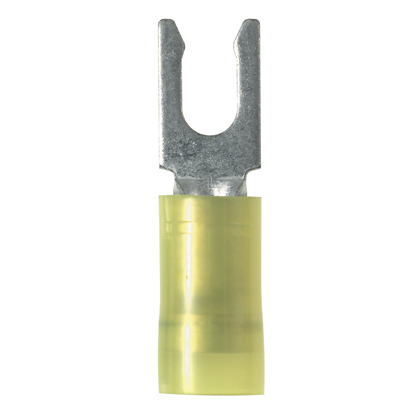

Locking Fork Terminal, nylon insulated, 12 - 10 AWG, #8 stud size, standard package.
Manuals & Documentation
| Catalog Number | PN10-8LF-L |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Yellow |
| Connection | Standard |
| Enclosure | Fork shape |
| Finish | Tin-Plated |
| Insulation | Nylon |
| Material | Copper |
| Standard | UL Listed 587H E52164; CSA Certified LR31212 |
| UPC | 074983800827 |
| GTIN | 00074983800827 |
| Item Type | Locking Fork Terminal |
| Size | #8 |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #10 AWG |
