| Catalog Number | 2410 |
| Manufacturer | Leviton |
| Brand | Leviton |
| Country of Origin | Mexico |
| Made in USA | No |
| Amperage Rating | 20 |
| Application | Commercial |
| Color | Black |
| Connection | Back Wired;Side Wired |
| Material | PBT |
| Mounting | Box |
| Number of Poles | 3 |
| Number of Wires | 4 |
| Standard | NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No.42;UL Fed Spec WC-596 (File E13399);UL Listed 498 |
| UPC | 078477809327 |
| GTIN | 00078477809327 |

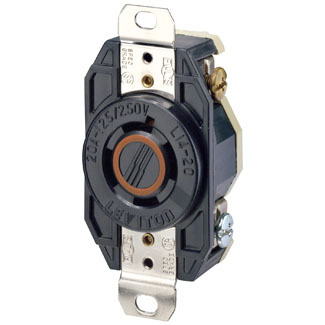

| Item Type | Flush Mount Locking Receptacle |
| Depth UOM | Inch |
| Size | 3.63 H x 1.69 W x 1.31 D |
| Environmental Conditions | Flammability (Rated V-2, Rated V-0 per UL94) |
| Temperature Rating | -40 to +60 DEG C |
| Voltage Rating | 125;250 |
| Wire Size | 14-8 AWG |
| Cross Reference Products | L1420R |
