SQUARE D

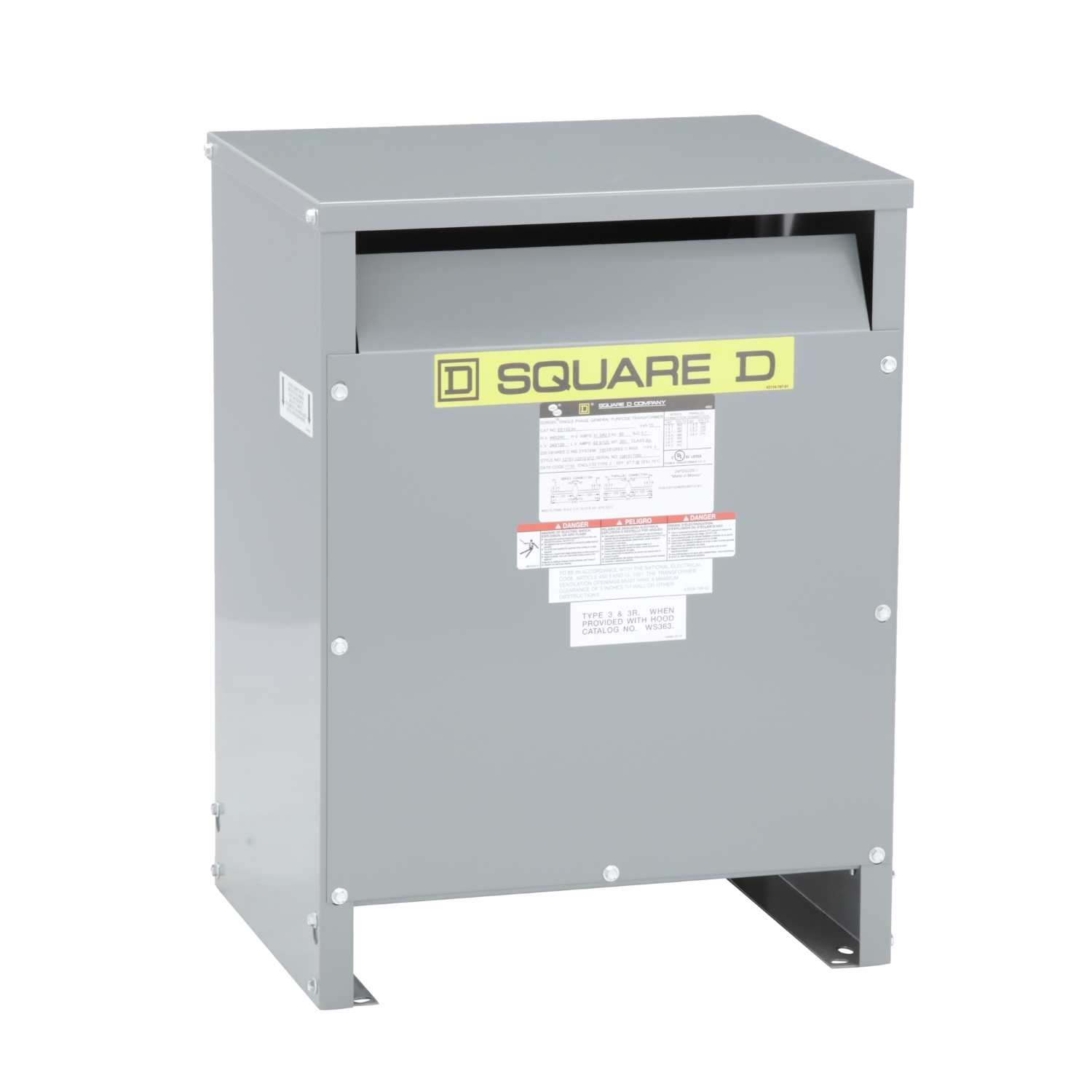

EE15S3H Dry Type Energy Efficient Transformer, 240/480 V AC Primary, 120/240 VAC Secondary, 15 kVA Power Rating, 60 Hz, 1 Phase

MFR:
Schneider Electric
MFR #:
EE15S3H
UPC:
785901792468
Item #:
12615

Low voltage dry-type distribution transformer means a distribution transformer that has an input voltage of 600 V or less, is air-cooled, and not used oil as a coolant. The Square D Energy Efficient transformer offering includes all of the popular options including low temperature rise, 115 C and 80 C, and aluminum or copper windings. These transformers are part of a complete line of Lean Power products from Schneider Electric. Available with aluminum or copper windings and 150C or 115C Rise with 220C insulation system. This Energy Efficient Transformer is a 1 phase, 15kVA, that has a primary Voltage of 240 x 480V and a secondary voltage of 120/240V. The Enclosure has a NEMA 2 rating and has a box number of 17D with a insulation temperature of 220 C. The unit is made of aluminium with a 150 C temperature rise. This product comes with an 18 month warranty.

Manuals & Documentation
Catalog Number EE15S3H
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Enclosure 17D
Number of Taps 6 2.5 % 2+ 4-
Phase 1
Primary Voltage 240 x 480 V
Secondary Voltage 120/240 V
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=456535&lang=en-us
UPC 785901792468
GTIN 00785901792468
Item Type Energy Efficient Transformer
Width 20.0
Width UOM Inch
Height 27.0
Height UOM Inch
Depth 16.0 IN
Cross Reference Products ConnElect S2T15E|Eaton T20P11E15EE|Eaton T20P11S15EE|GEIndust 9T83B2670|Jefferson 4217165000|Schneider EE15S3HB|SolaHD ES5H15S
