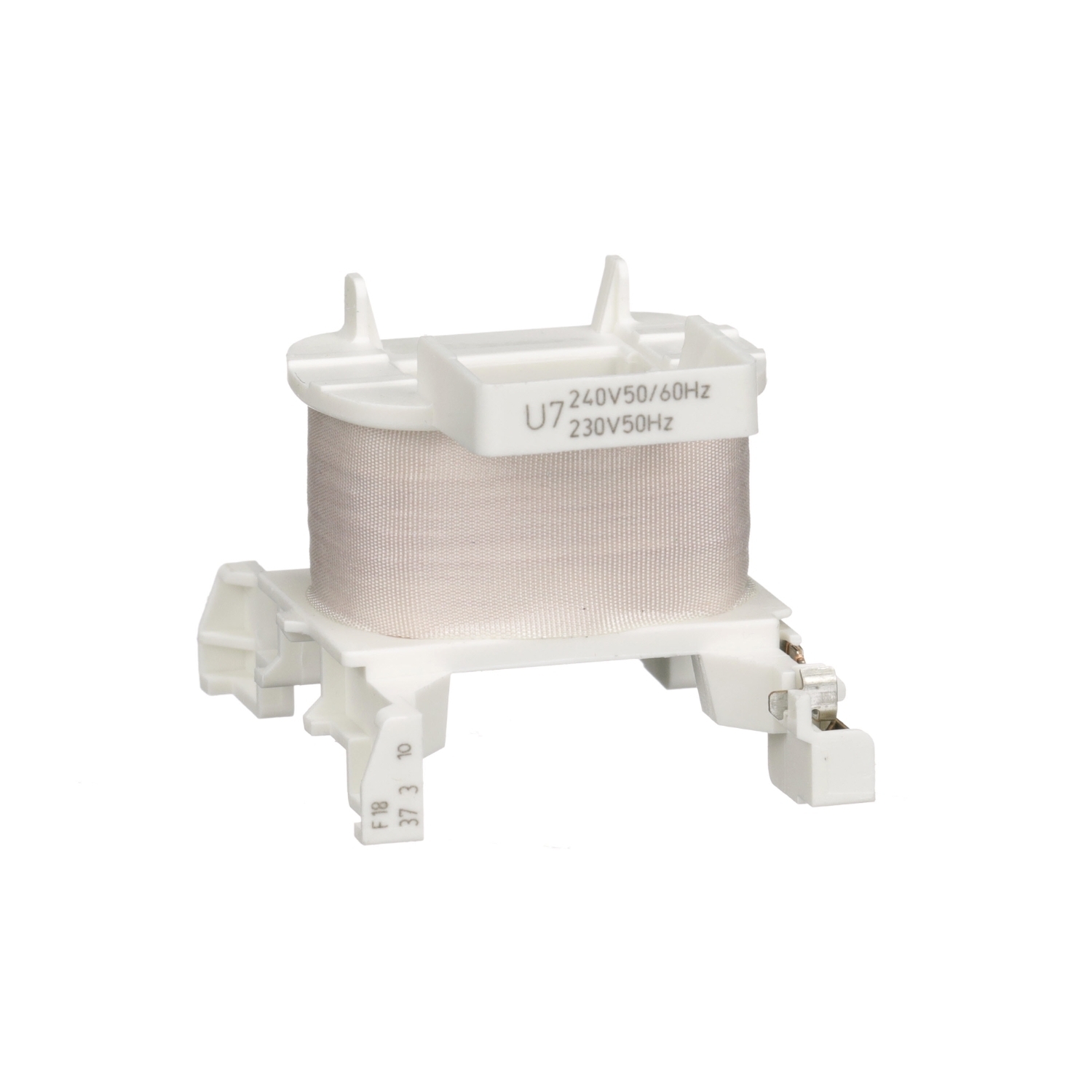

LXD1U7 TeSys Internal Mount Replacement Starter Coil, 230/240 V AC, 50/60 Hz, For Use With LC1D09-D38, LC1DT20-DT40 Contactor, CAD Relay and Starter
- MFR:
- Schneider Electric
- MFR #:
- LXD1U7
- Item #:
- 125860
LXD1U7 TeSys Internal Mount Replacement Starter Coil, 230/240 V AC, 50/60 Hz, For Use With LC1D09-D38, LC1DT20-DT40 Contactor, CAD Relay and Starter
- MFR #:
- LXD1U7
- Item #:
- 125860
TeSys D replacement coils are for replacing the operating coil in a TeSys D contactors with 9 amperes to 38 ampere ratings and Tesys D Relays. This coil has an operating voltage of 240 Vac 50/60 Hz. This coil has an inrush consumption rating of 70 VA and a sealed consumpation rating ofd 7 VA. The 60Hz operating range is 85 to 110% of nomial voltage at 60 degrees C.
Manuals & Documentation
| Catalog Number | LXD1U7 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | France |
| Made in USA | No |
| Application | CAD;LC1DT20...DT40;LC1D09...D38 |
| Coil Voltage | 240 V AC 50/60 Hz |
| Special Features | Without built-in suppressor module |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=1478652&lang=en-us |
| GTIN | 03389110467949 |
| Item Type | Contactor coil |
