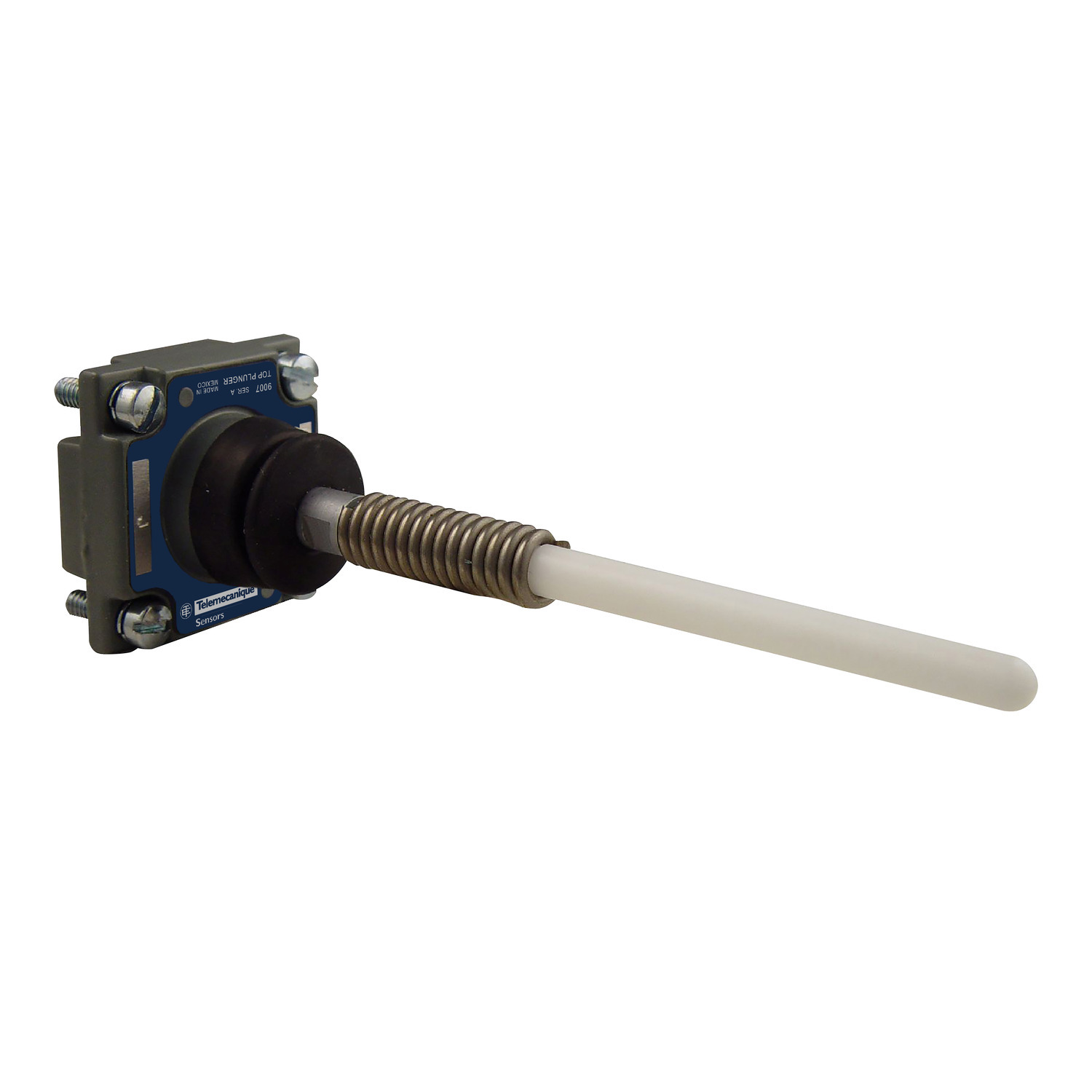

9007J Osisense Standard Heavy Duty Multi-Directional Limit Switch Head, Top Wobble Stick, For Use With 9007C Series Limit Switch, 1/2/4/6/6P/12/13 NEMA Rating

MFR:
Telemecanique Sensors
MFR #:
9007J
UPC:
785901543527
Item #:
125344

This product is part of the Nema Limit Switches range, an offer of heavy duty metal limit switches. The limit switch head provides switch actuation of any direction without positive opening operation. The movement of this limit switch operating head is multi-directional. It has acetal resin wobble stick spring return mechanism supports a multidirectional approach. This limit switch multidirectional head is made of metal. It weighs 0.2kg. It is compatible with 9007C heavy duty industrial limit switch lever and body. Compact and standard limit switch for hazardous locations. Compliant with US and international standards, the 9007 series limit switches can withstand the impact of heavy industry.

Manuals & Documentation
Catalog Number 9007J
Manufacturer Telemecanique Sensors
Brand Telemecanique
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Action Multi-directional approach, multi-directional approach;Any direction
Actuator Spring return wobble stick acetal resin -
Application 9007C
Standard UL LISTED FILE NUMBER E42259 CCN NKCR - CSA CERTIFIED FILE NUMBER LR25490 CLASS 3211-03 - CE MARKED
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=377497&lang=en-us
UPC 785901543527
GTIN 00785901543527
Item Type Limit switch head
Environmental Conditions STANDARD ENVIRONMENT
Operating Temperature 0-185 A Degrees F
