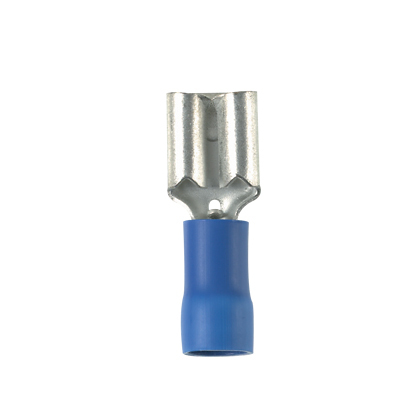

DVF14-250-C Pan-Term Type DVF Loose Piece Vibration-Resistant Female Disconnect, 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Funnel Entry/Sleeved Barrel, Brass, Blue, Barrel Insulated
- MFR:
- Panduit
- MFR #:
- DVF14-250-C
- UPC:
- 074983820726
- Item #:
- 123819
DVF14-250-C Pan-Term Type DVF Loose Piece Vibration-Resistant Female Disconnect, 14 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Funnel Entry/Sleeved Barrel, Brass, Blue, Barrel Insulated
- MFR #:
- DVF14-250-C
- UPC:
- 074983820726
- Item #:
- 123819
The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in blue vinyl housing. It has a tab size of 0.25 x 0.032 (6.3 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm). It is 0.81 (20.6 mm) long and 0.29 (7.4 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in bottles of 100.
Manuals & Documentation
| Catalog Number | DVF14-250-C |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Blue |
| Connection | Funnel Entry |
| Finish | Tin-Plated |
| Insulation | Vinyl |
| Material | Brass |
| Standard | UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153 |
| UPC | 074983820726 |
| GTIN | 00074983820726 |
| Item Type | Disconnect |
| Temperature Rating | 194 Degrees Fahrenheit (90 Degrees Celsius) |
| Voltage Rating | 300 |
| Wire Size | #14 AWG |
