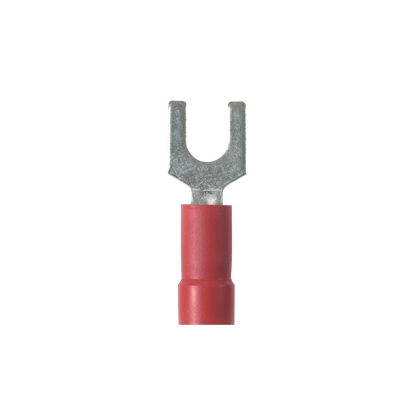

PV18-10F-CY Pan-Term Type PV-F Loose Piece Fork Terminal, 22 to 16 AWG Conductor, 0.93 in L, Brazed Seam/Funnel Entry Barrel, Copper, Red
- MFR:
- Panduit
- MFR #:
- PV18-10F-CY
- UPC:
- 074983686490
- Item #:
- 123798
PV18-10F-CY Pan-Term Type PV-F Loose Piece Fork Terminal, 22 to 16 AWG Conductor, 0.93 in L, Brazed Seam/Funnel Entry Barrel, Copper, Red
- MFR #:
- PV18-10F-CY
- UPC:
- 074983686490
- Item #:
- 123798
The PV18-10F-CY Pan-Term Terminal is a vinyl insulated, fork terminal. Brazed seam protects terminal barrel from splitting during the crimp process. Barrel serrations assure good wire contact and maximum tensile strength.
Manuals & Documentation
| Catalog Number | PV18-10F-CY |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Red |
| Connection | Funnel |
| Enclosure | Fork shape |
| Finish | Tin-Plated |
| Insulation | Vinyl |
| Material | Copper |
| Standard | UL Listed 587H E52164; CSA Certified LR31212 |
| UPC | 074983686490 |
| GTIN | 00074983686490 |
| Item Type | Fork Terminal |
| Size | #10 |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #16 AWG |
| Cross Reference Products | 3M B-06-403|3M B-06-405|ABBInstall 18RA-10F|ABBInstall 18RA-10FX|ABBInstall 18RA-8F|ABBInstall 18RA-8FX|ABBInstall RA1147|ABBInstall RA1147-170|ABBInstall RA1157|ABBInstall RA1157-170 |
