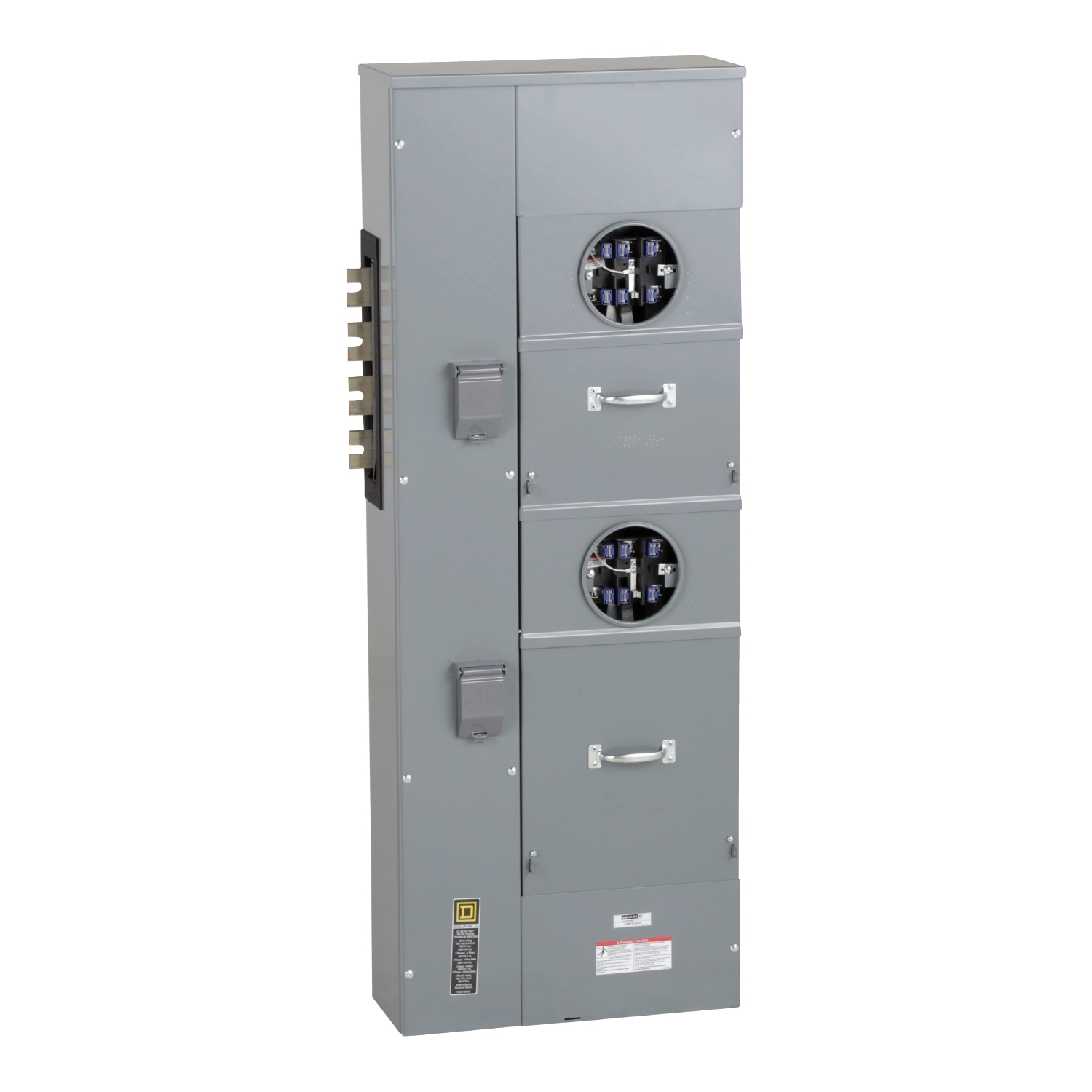

EZMT332225 Branch Unit, EZ Meter Pak, 225 Amp, 2 Socket, 208Y/120V, Test Block Bypass, Ringed
- MFR:
- Schneider Electric
- MFR #:
- EZMT332225
- UPC:
- 785901573999
- Item #:
- 123715
EZMT332225 Branch Unit, EZ Meter Pak, 225 Amp, 2 Socket, 208Y/120V, Test Block Bypass, Ringed
- MFR #:
- EZMT332225
- UPC:
- 785901573999
- Item #:
- 123715
Square D EZ Meter-Pak devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringed and rated 225A. It has 2 seven jaw sockets for use. The system voltage is 208Y/120 VAC and a test block bypass. It includes a 1200 A aluminium/copper busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.
Manuals & Documentation
| Catalog Number | EZMT332225 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| Bypass Type | Test Block |
| Enclosure | Steel |
| Mounting | Surface |
| Phase | 3 |
| Special Features | Aluminium/copper: busbar |
| Standard | UL Listed |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=358709&lang=en-us |
| UPC | 785901573999 |
| GTIN | 00785901573999 |
| Item Type | Meter Center Branch Unit;Ringed |
