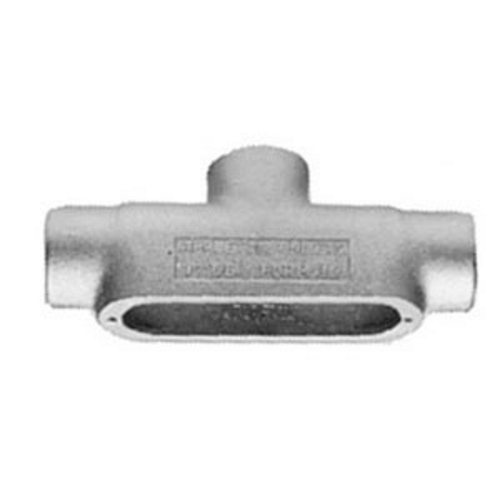

Form 35 UNILETS Type TB Conduit Outlet Body, Hub Size: 3/4 IN, Form: 35, Length: 6.06 IN, Width: 1.56 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat), Connection: Tapered Female Threade

Manuals & Documentation
Catalog Number TB75-M
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Rigid Steel, Rigid Aluminum Conduit And IMC
Connection Tapered Female Threaded
Finish Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat)
Form 35
Hub Size 3/4 IN
Material Malleable Iron
Special Features Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; High tensile strength and ductility, high corrosion resistance, high impact and shock resistance; Sizes with flat-back design ideal where fitting is mounted flat against surface; Wiring capacity: 7 CU-IN as per NEC 314.16(A)
Standard UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
UPC 781381689007
GTIN 00781381689007
Item Type Type TB Conduit Outlet Body
Length 6.06
Length UOM Inch
Width 1.56
Width UOM Inch
