Appleton

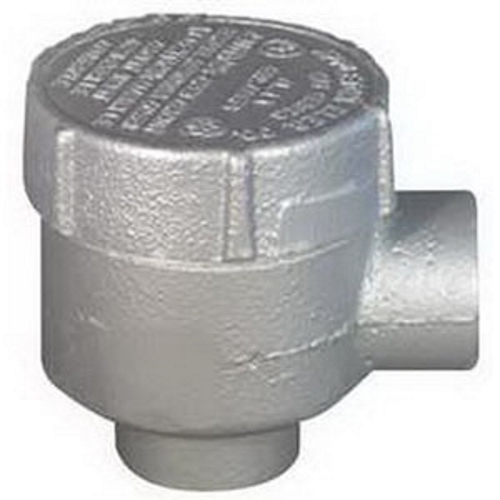

GRJEA75 Unilets Dust-Ignitionproof Explosionproof Raintight Conduit Outlet Box, 3/4 in, 2.13 in Cover Opening, 7.3 cu-in, Triple Coated

MFR:
Appleton Electric
MFR #:
GRJEA75
UPC:
781381440455
Item #:
123195

UNILETS Outlet Box, Number Of Outlet: 2, Material: Malleable Iron, Size: 3/4 IN, Cable Entry: (2) 3/4 IN GRJEA Hub, Cubic Capacity: 7.3 CU-IN, Knockouts: No, Cover Opening: 2.13 IN, Height: 2.88 IN, Width: 2.88 IN, Depth: 2.06 IN, Finish:

Manuals & Documentation

Features

  • Explosion proof, dust-ignition proof and raintight
  • Furnished with internal ground screw
  • Provides great resistance to corrosion
Catalog Number GRJEA75
Manufacturer Appleton Electric
Brand Appleton
Country of Origin Mexico
Made in USA No
Application For Use With Threaded Metal Conduit
Cable Entry (2) 3/4 IN GRJEA Hub
Cubic Capacity 7.3 CU IN
Knockouts No
Material Malleable Iron
Special Features Explosionproof, dust-ignitionproof, raintight; Furnished with internal ground screw; Malleable iron bodies have high tensile strength and ductility, provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with malleable iron cover; General purpose wiring; Externally threaded body with internally threaded cover; Small, round conduit outlet boxes; Smooth, rounded integral bushing in hub box protects conductor insulation; Complies with a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance
Standard UL 886, UL File Number E10444, CSA 025875 Certified, Class I, Division 1 And 2, Groups C, D; Class II, Division 1 And 2, Groups E, F, G; Class III
RoHS Indicator Yes
UPC 781381440455
GTIN 00781381440455
Item Type Outlet Box
Length 4.5000
Length UOM Inch
Width 3.5000
Width UOM Inch
Height 3.5000
Height UOM Inch
Weight 2.760
Weight UOM Pounds
Size 3/4
