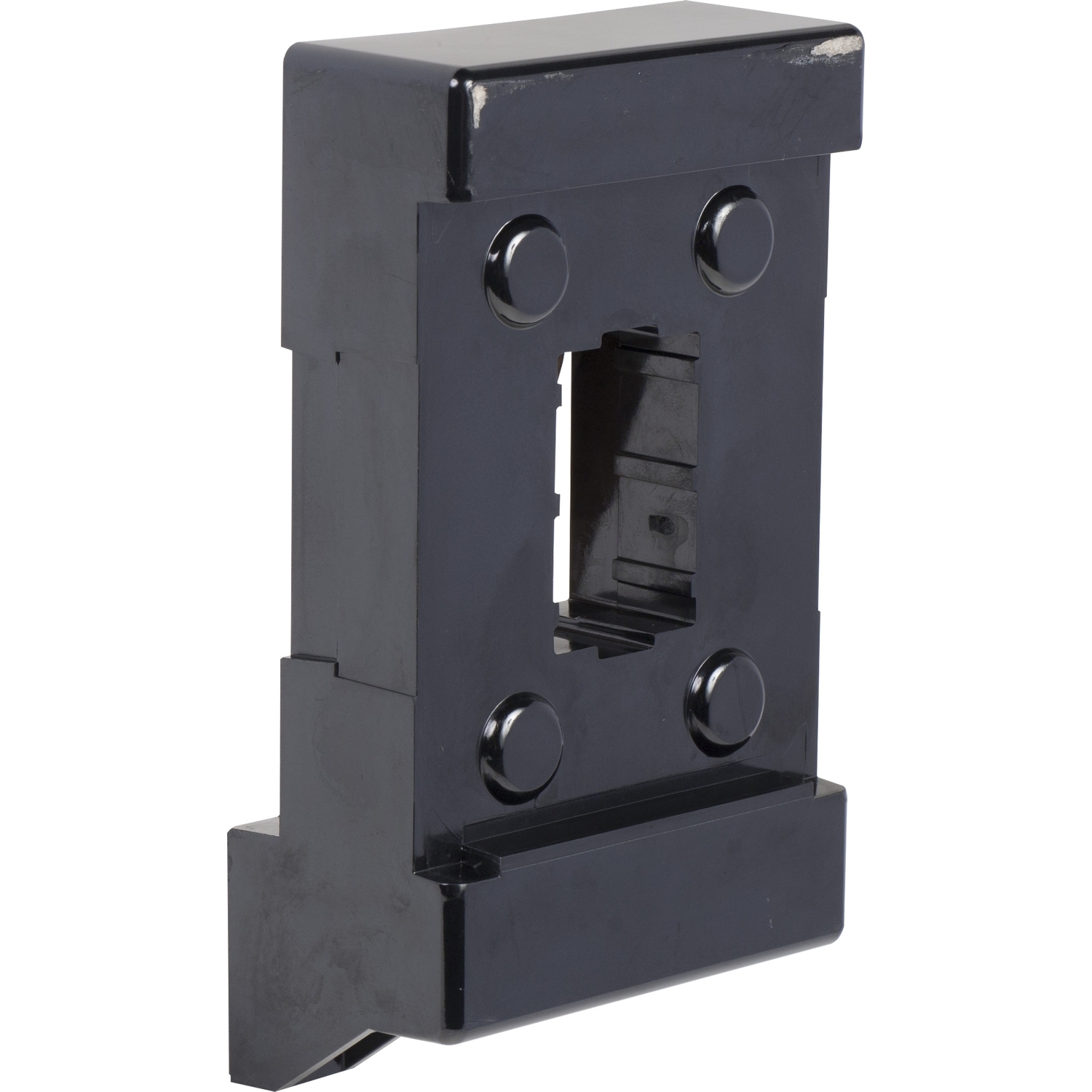

3109632050 Contactor/Starter Coil, 110/120 V AC, 50/60 Hz, For Use With Class 8502 Type SG Contactor
- MFR:
- Schneider Electric
- MFR #:
- 3109632050
- UPC:
- 785901376798
- Item #:
- 123085
3109632050 Contactor/Starter Coil, 110/120 V AC, 50/60 Hz, For Use With Class 8502 Type SG Contactor
- MFR #:
- 3109632050
- UPC:
- 785901376798
- Item #:
- 123085
The coil can be easily replaced in a Type S contactor or starter. By changing out the coil, the contactor or starter can be used in different control circuit voltage applications. This will also save the cost of a whole new contactor or starter if the coil were to fail. This coil is used in an 8502SG Series B contactor, an 8536SG Series B starter or an 8903SX Series B lighting contactor. This coil is rated for 110/120 VAC 50/60 Hz. The inrush power of this coil is 1300 VA. It has an average sealed consumption of 14 VA. Coil has screw clamp connections.
Manuals & Documentation
| Catalog Number | 3109632050 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Mexico |
| Made in USA | No |
| Application | Motor starter;contactor class 8502 type SG |
| UPC | 785901376798 |
| GTIN | 00785901376798 |
| Item Type | Coil |
