SQUARE D

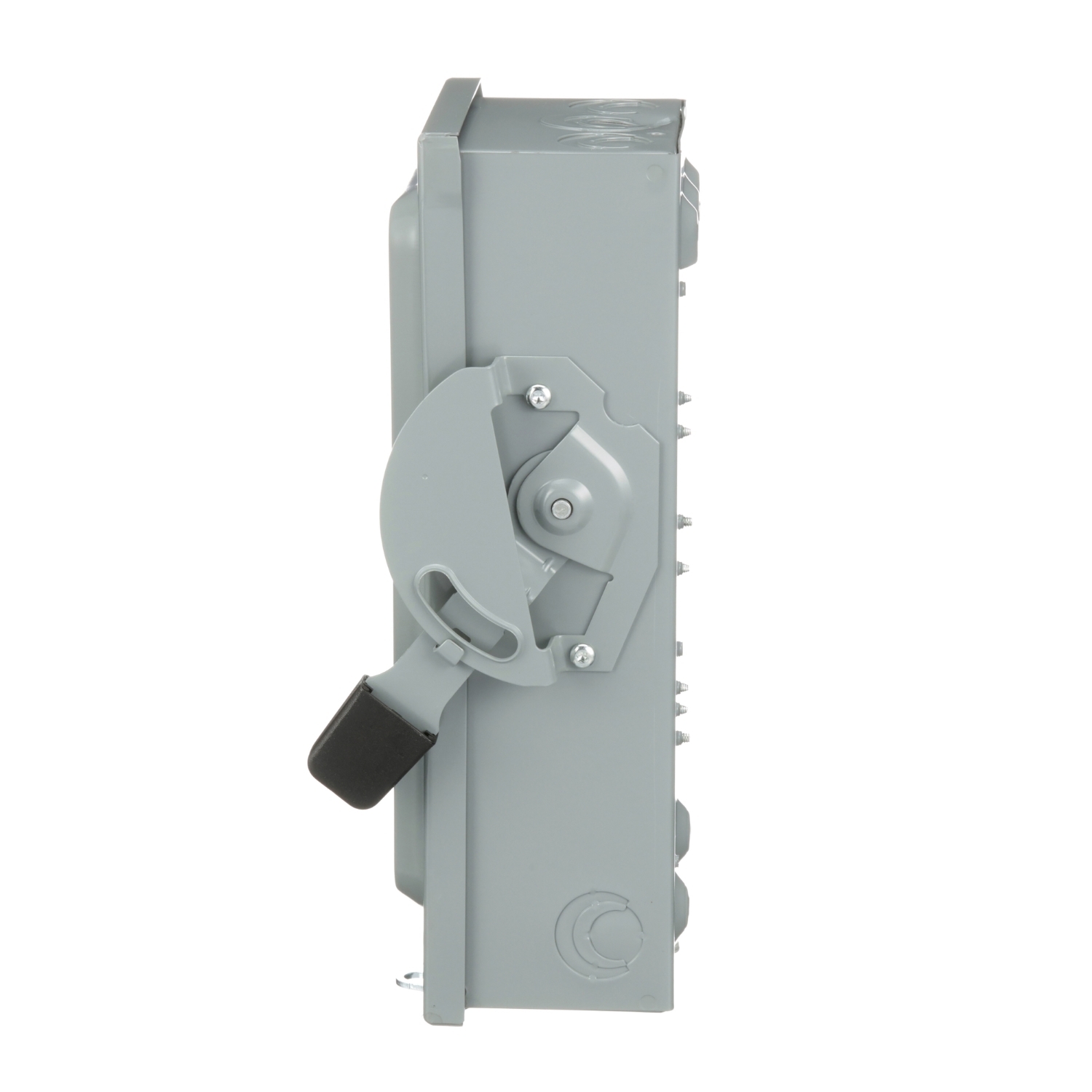

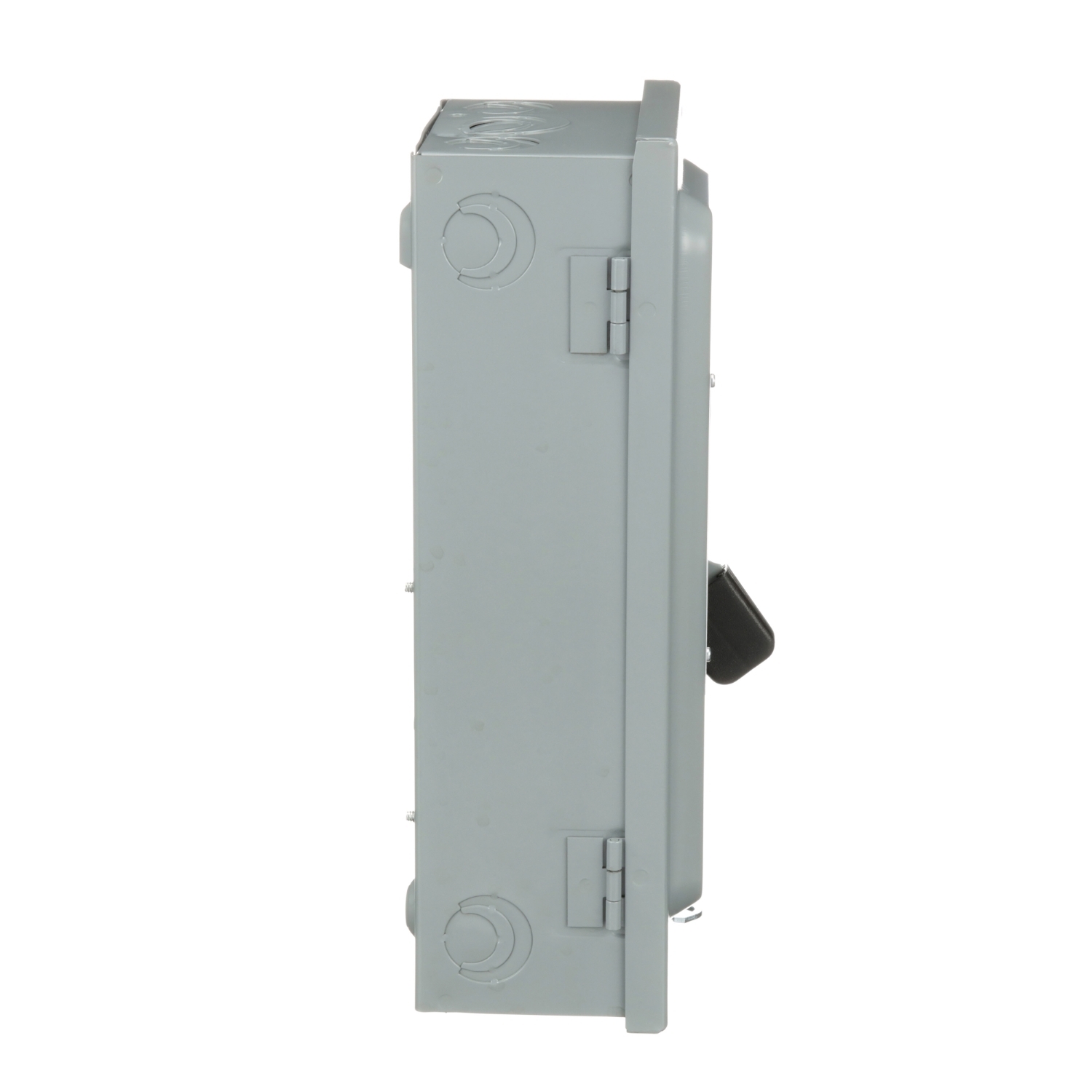

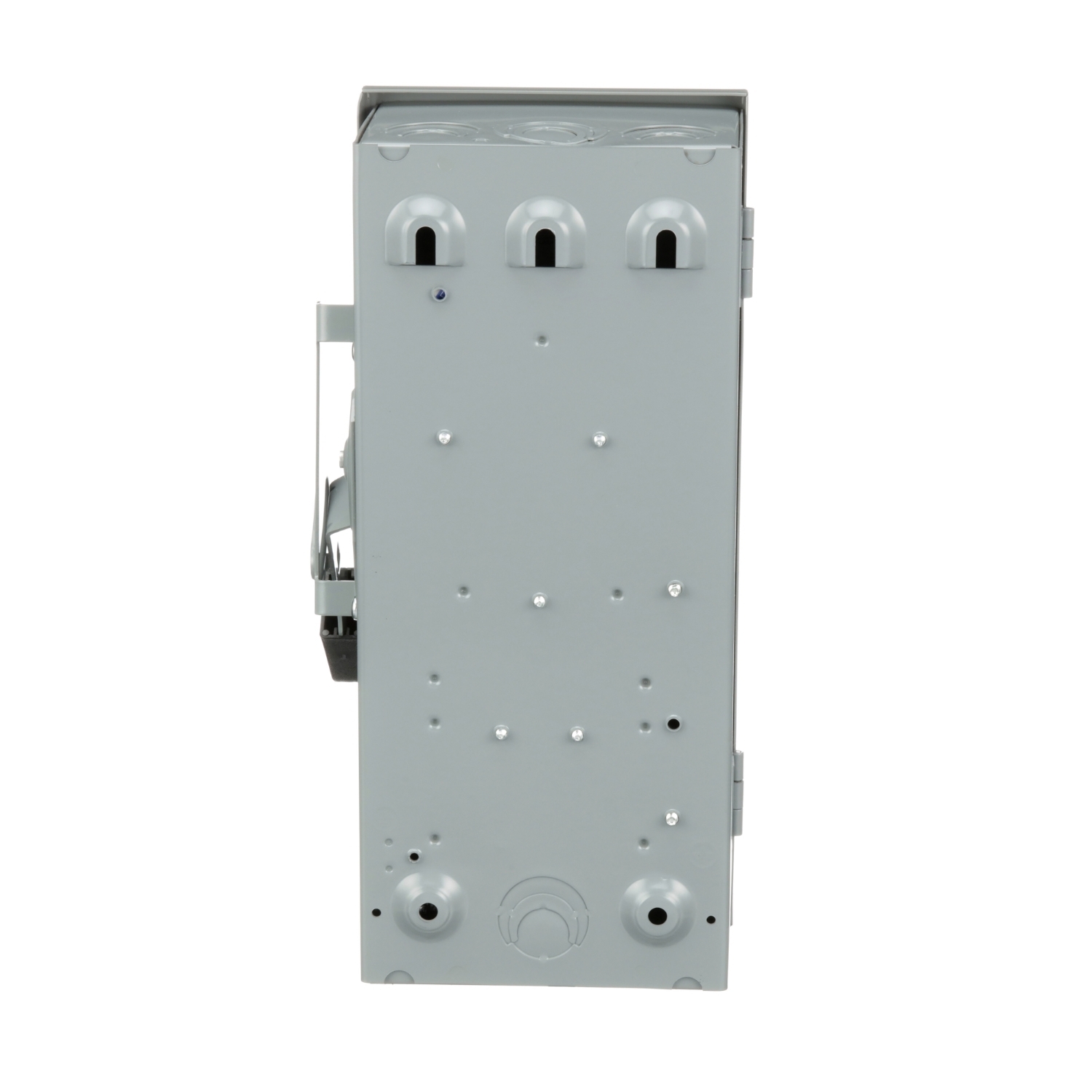

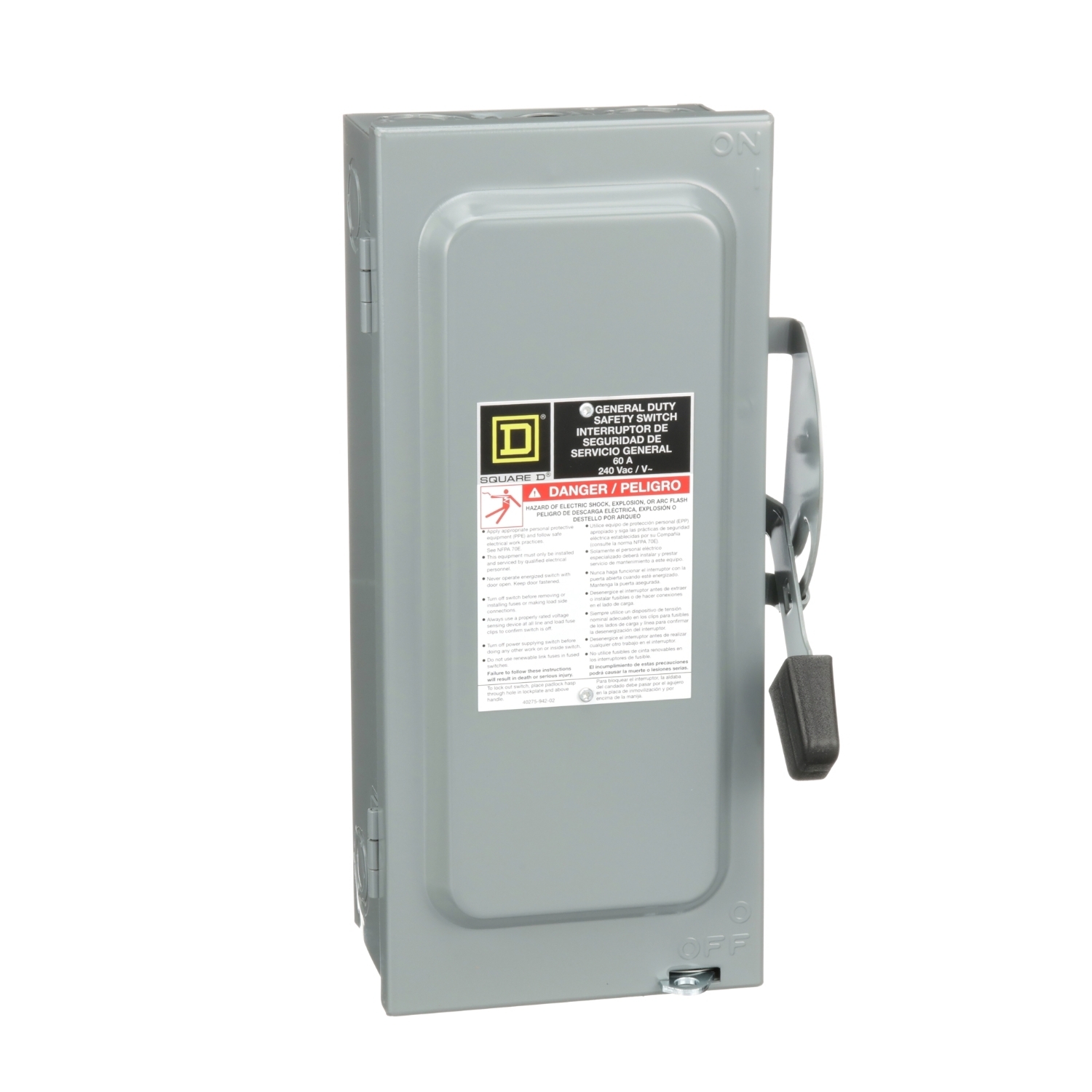

D322N F1 Series Fusible General Duty Safety Switch, 240 V AC, 60 A, 15 hp, 3PST Contact, 3 Poles

MFR:
Schneider Electric
MFR #:
D322N
UPC:
785901461234
Item #:
123061

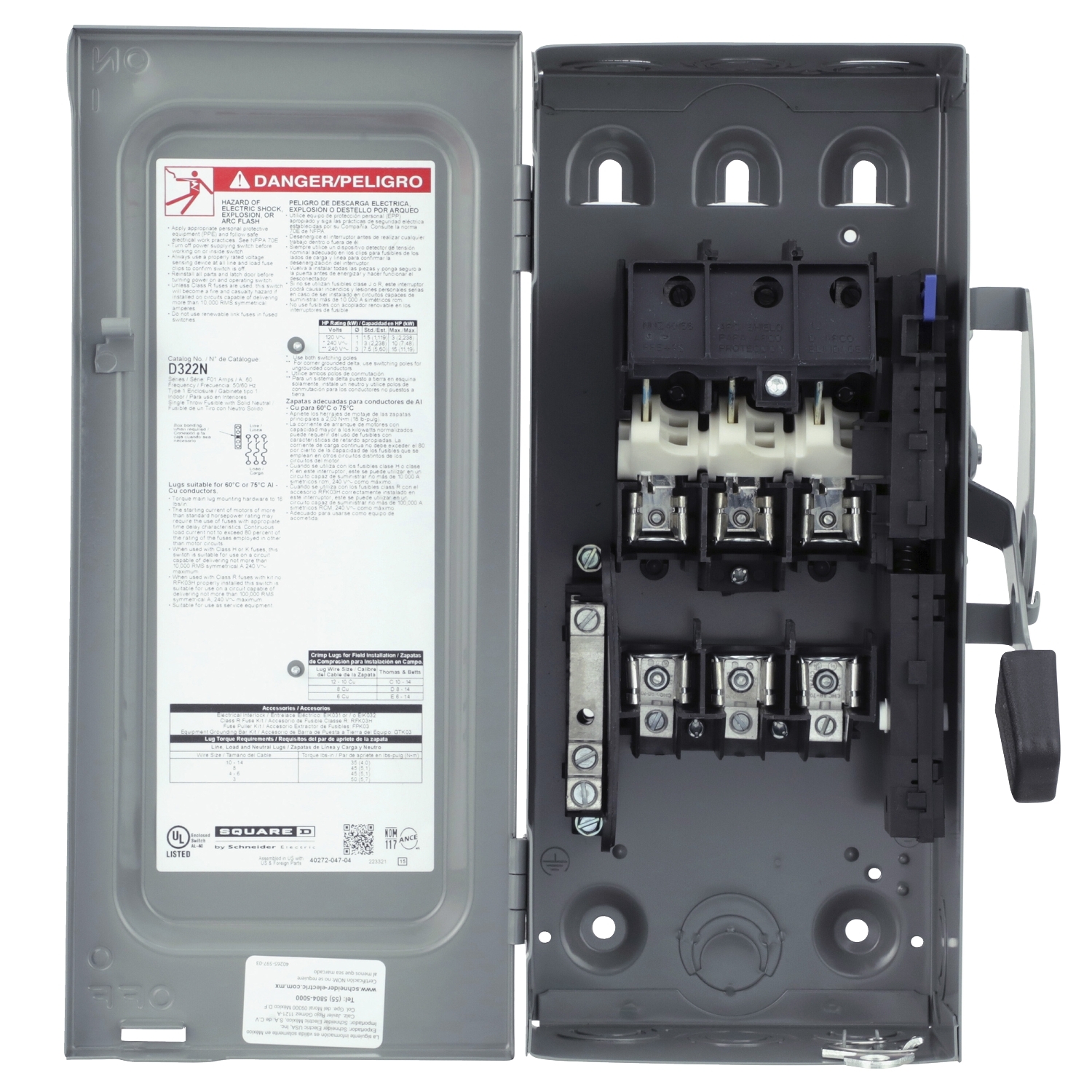

Schneider Electric's Square D general duty safety switches are designed for residential and light commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. General duty safety switches feature a quick make, quick break operating mechanism. This single throw safety switch is a fusible disconnect and has a rated current of 60A for 240VAC. This general duty switch has a 4 wire configuration with 3 poles and a factory installed neutral. The device accepts H, K or R fuse types. The enclosure is surface mounted and is a Type 1. General duty safety switches are UL Listed, and meet or exceed the NEMA Standard KS1.

Manuals & Documentation
Catalog Number D322N
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin United States
Made in USA Yes
Fuse Type H, K or R
Phase 3
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=458093&lang=en-us
UPC 785901461234
GTIN 00785901461234
Width 7.45
Width UOM Inch
Height 14.88
Height UOM Inch
Depth 4.87 IN
