SQUARE D

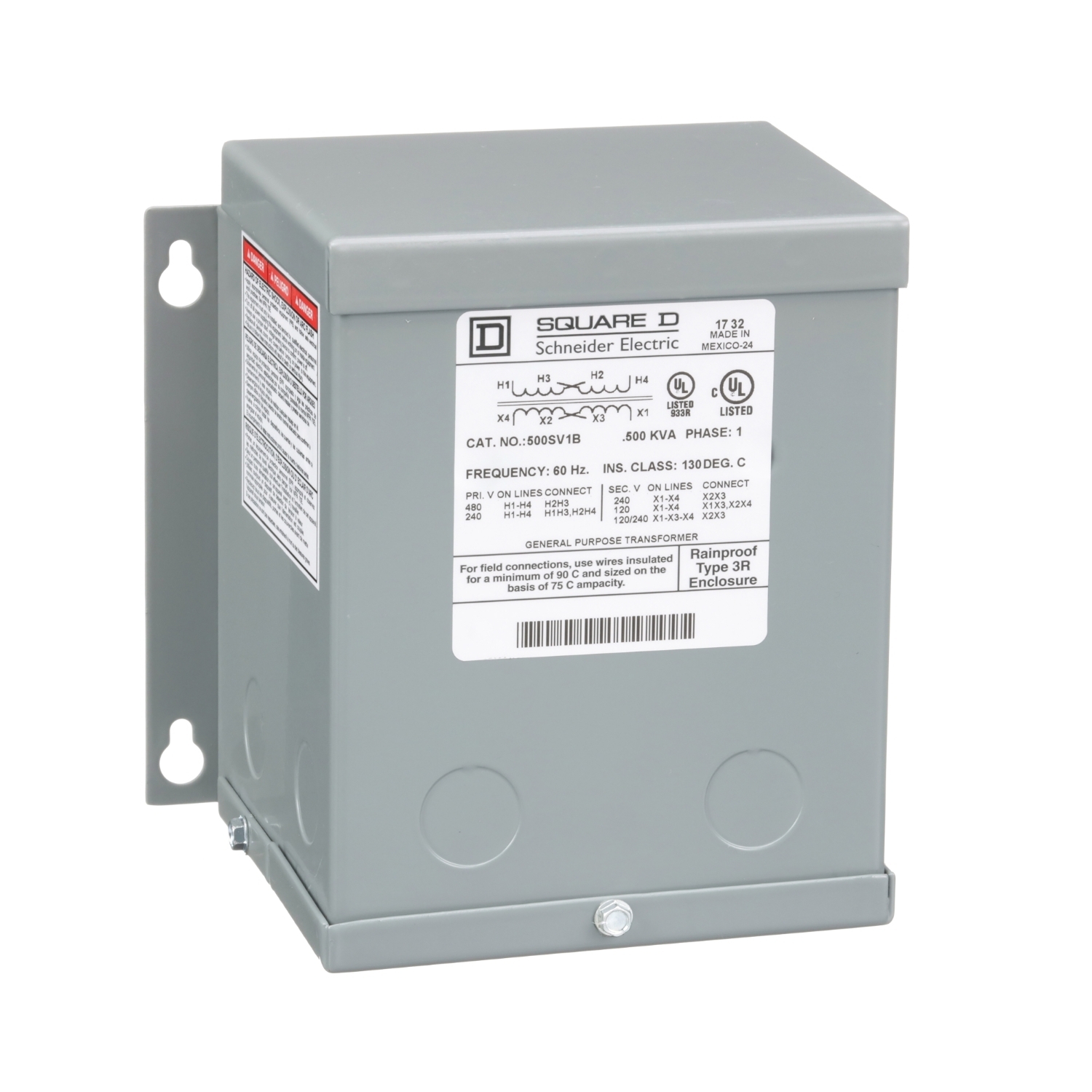

500SV1B XFMR Distribution Dry Sealed Encapsulated Resin Sealed Transformer, 240 x 480 V AC Primary, 120/240 VAC Secondary, 0.5 kVA Power Rating, 60 Hz, 1 Phase

MFR:
Schneider Electric
MFR #:
500SV1B
UPC:
785901019831
Item #:
120601

Resin Encapsulated Transformers, these general purpose transformers accommodate voltage systems world wide. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection. Type 3R enclosure are designed to allow energy efficient transformers to be installed in environments requiring more protection. This Dry Sealed Transformer that is 1 phase, and has a rated power of 0.5 KVA. This transformer has a primary voltage of 240 x 480 V, and a secondary voltage of 120/240 V. The enclosure for this transformer has a NEMA 3R rating, and is wall mounted, and made of painted sheet steel. Dimensions for this transformer are 5.5 in (H), 6.19 in (W), 4.69 in (D). This product complys to UL & CSA standards.

Manuals & Documentation
Catalog Number 500SV1B
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Enclosure Painted sheet steel;5
Mounting Wall
Number of Taps 0
Phase 1
Primary Voltage 240 x 480 V 120/240 V
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=455981&lang=en-us
UPC 785901019831
GTIN 00785901019831
Item Type Dry Sealed Transformer
Width 6.19
Width UOM Inch
Height 5.5
Height UOM Inch
Depth 4.69 IN
