Broan-NuTone

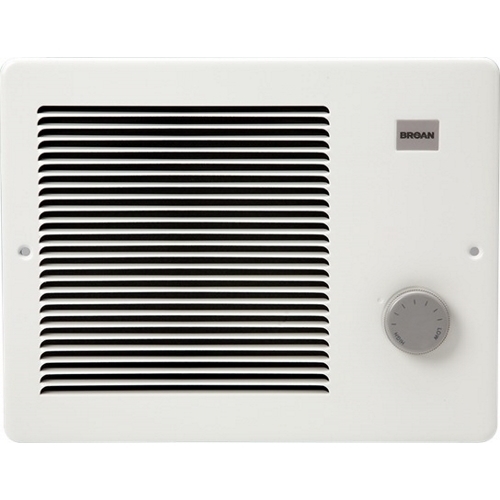

Wall Heater, White, 500/1000W 120VAC, 750W 208VAC, 1000W 240 VAC.

MFR:
Broan-NuTone
MFR #:
170
UPC:
026715004430
Item #:
120388
Manuals & Documentation
Catalog Number 170
Manufacturer Broan-NuTone
Brand Broan-NuTone
Country of Origin United States
Made in USA Yes
Application For Bathrooms Or Other Areas Where You Want Added Warmth On Demand
Mounting Surface
Special Features Features: Factory Wired For 1000 W At 120 VAC Easily Converts To 500 W At 120 VAC Or 1000 W At 240 VAC; Clean, White Enamel Finish; Heavy 20-Gauge Steel Louvered To Direct Air Downward For Even Room Heating; Front-Mounted, Built-In Adjustable Thermostat Automatically Maintains Desired Temperature And Features A Color-Coordinated Knob; 100 PCT Efficient Heating Element Alloy Heating Element Provides Comfortable Heat In Seconds; Complete Assembly Removes From Housing For Easy Cleaning; Permanently Lubricated Motor; Zig-Zag Element Configuration Insulated With Mica; Manual-Reset Thermal Overload Protection; Grille - Designer-Styled, One-Piece Construction With Rounded Corners; Housing - 24-Gauge Steel Finished With Black Expoxy Paint; Removable Wiring Cover - Connect Wiring Away From Tight Corners; Mounts Directly To Wall Studs; Can Be Recess Or Surface-Mounted; Includes Housing Mask - To Prevent Construction Damage To Roughed-In Heater; Heater Assembly - Nickel-Chrome Resistance Alloy Heating Element; Snap-Action, Bi-Metallic Thermostat; High-Efficiency Blower Wheel; Finish: Black Expoxy Paint Housing, White, Baked Enamel Grille; Amperage Rating: 8.3/4.1, 4.16 AMP; Packaging: Single; Btu/hr: 3413/1707, 3413 BTU/HR; Grille Material: 20-Gauge Steel
Standard UL
UPC 026715004430
GTIN 00026715004430
Item Type Heater
Dimensions Housing: 10-1/4 IN Length X 3-3/4 IN Width X 7-3/4 IN Height, Grille: 12 IN Length X 1/2 IN Width X 9-1/4 IN Height
Length 1.25
Length UOM Inch
Width 0.91666
Width UOM Inch
Height 0.50833
Height UOM Inch
Weight 7.2
Weight UOM Pounds
Voltage Rating 120/208/240
Wattage 1000/500 WTT At 120 VAC, 1000 WTT At 240 VAC
