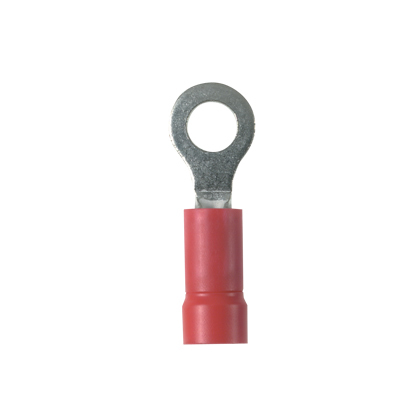

PV18-14R-CY Pan-Term Type PV-R Loose Piece Ring Terminal, 18 AWG Conductor, 1.11 in L, Brazed Seam/Funnel Entry/Insulation Support Barrel, Copper, Red
- MFR:
- Panduit
- MFR #:
- PV18-14R-CY
- UPC:
- 074983688562
- Item #:
- 120134
PV18-14R-CY Pan-Term Type PV-R Loose Piece Ring Terminal, 18 AWG Conductor, 1.11 in L, Brazed Seam/Funnel Entry/Insulation Support Barrel, Copper, Red
- MFR #:
- PV18-14R-CY
- UPC:
- 074983688562
- Item #:
- 120134
Ring Terminal, 22 18 AWG, 1/4 stud size, vinyl insulated, funnel entry, standard package.
Manuals & Documentation
| Catalog Number | PV18-14R-CY |
| Manufacturer | Panduit |
| Brand | Panduit |
| Country of Origin | Mexico |
| Made in USA | No |
| Color | Red |
| Connection | Funnel Entry |
| Enclosure | Ring shape |
| Finish | Tin-Plated |
| Insulation | Vinyl |
| Material | Copper |
| Standard | UL Listed 587H E52164, CSA Certified LR31212 |
| UPC | 074983688562 |
| GTIN | 00074983688562 |
| Item Type | Ring Terminal |
| Size | 1/4" |
| Temperature Rating | 221 Degrees Fahrenheit (105 Degrees Celsius) |
| Voltage Rating | 600 |
| Wire Size | #18 AWG |
