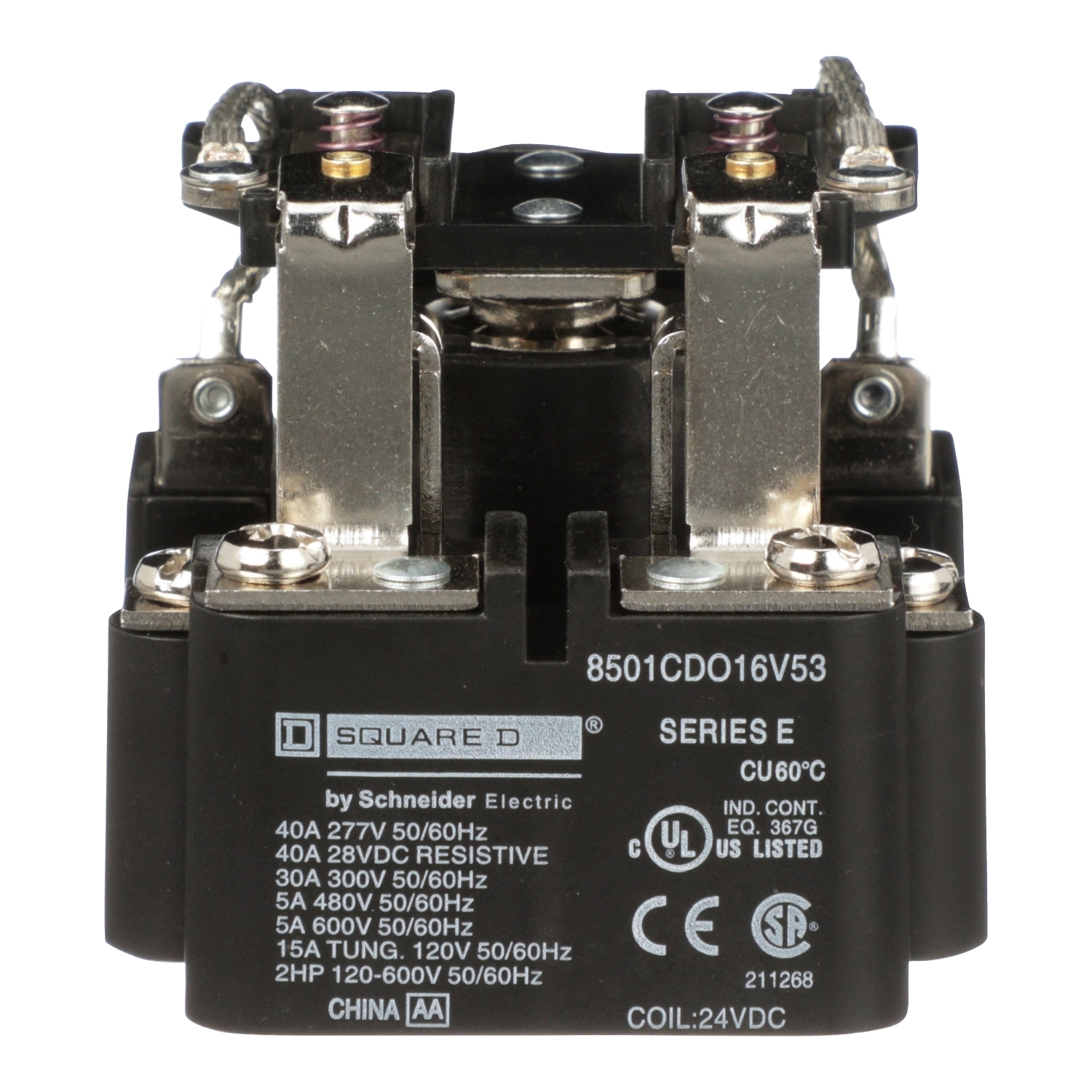

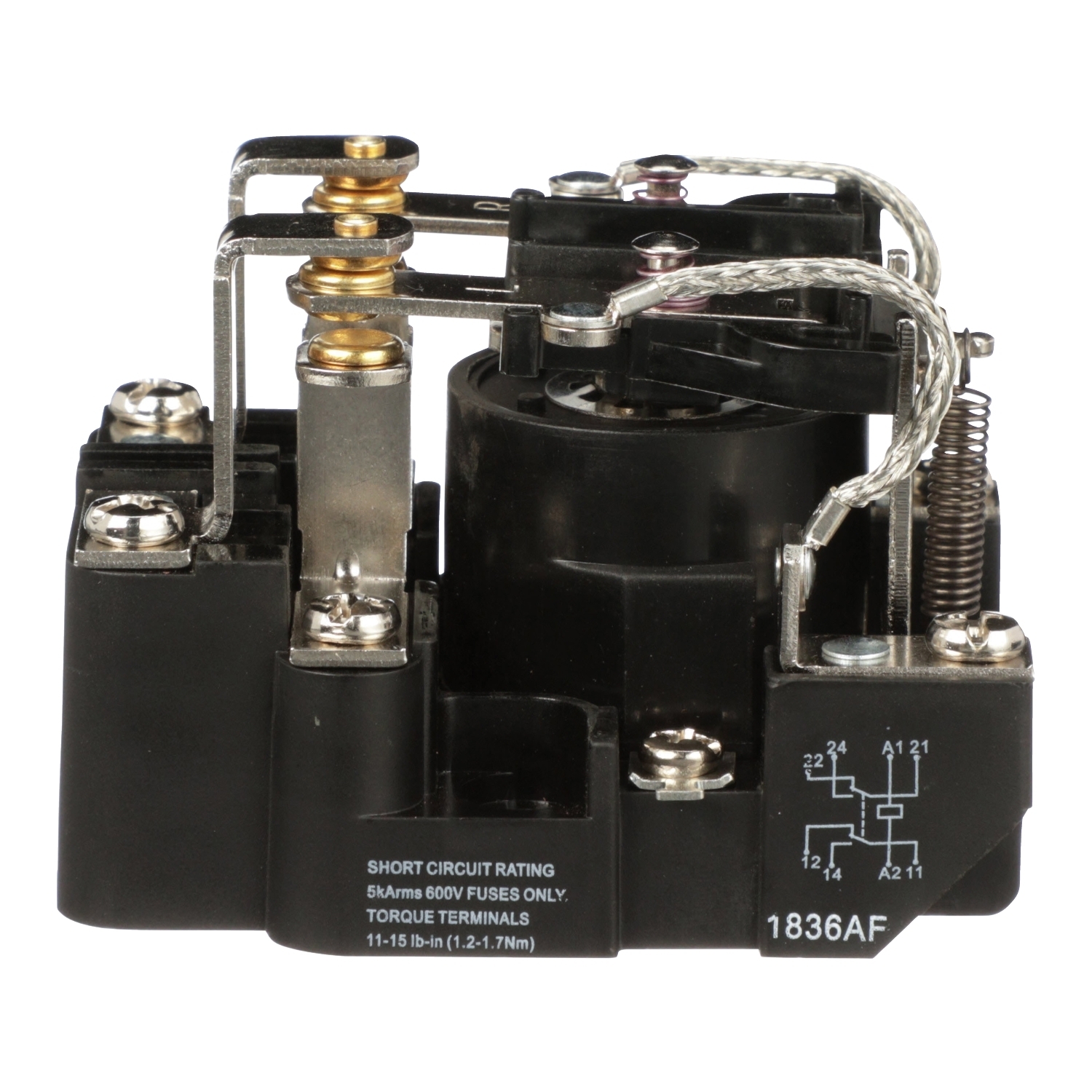

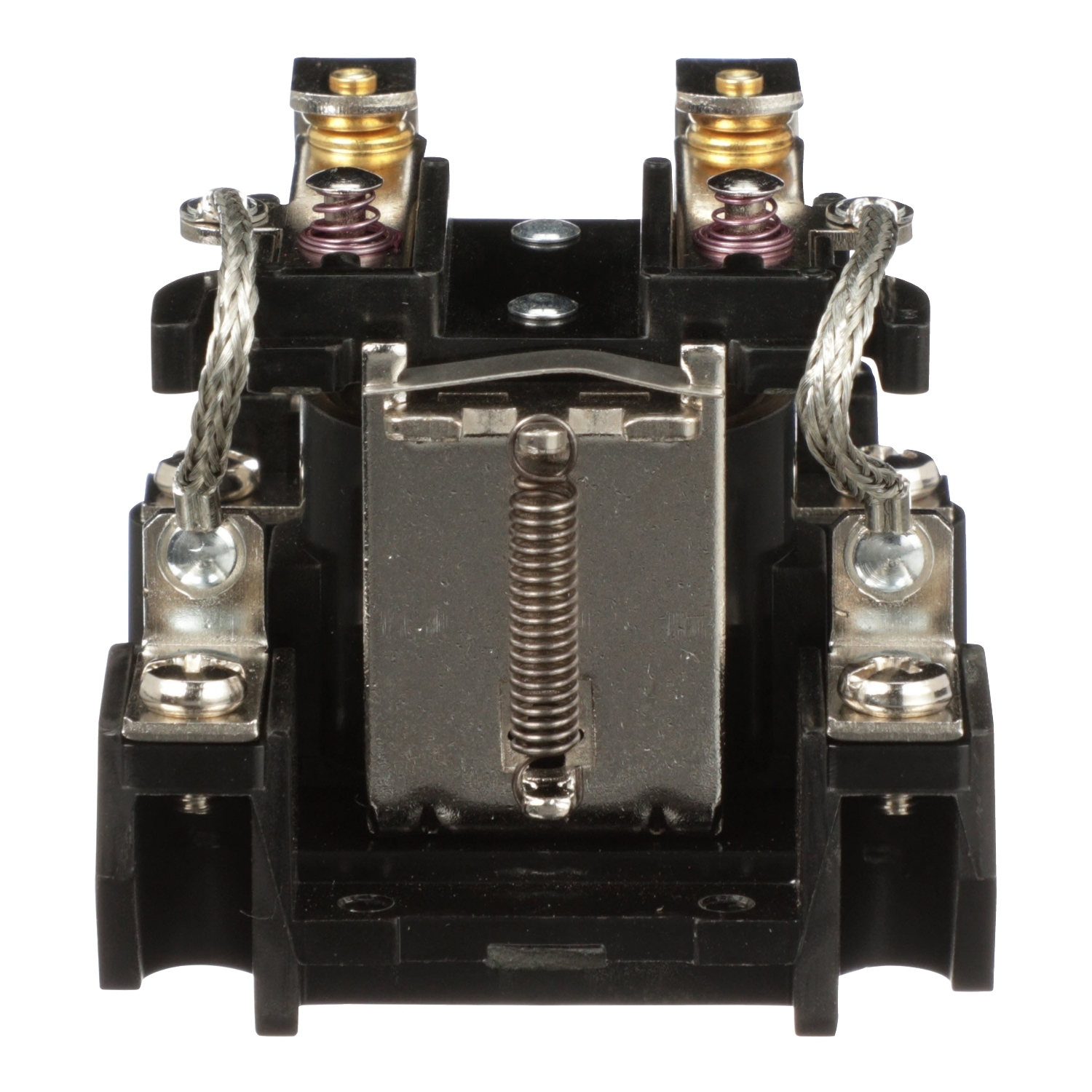

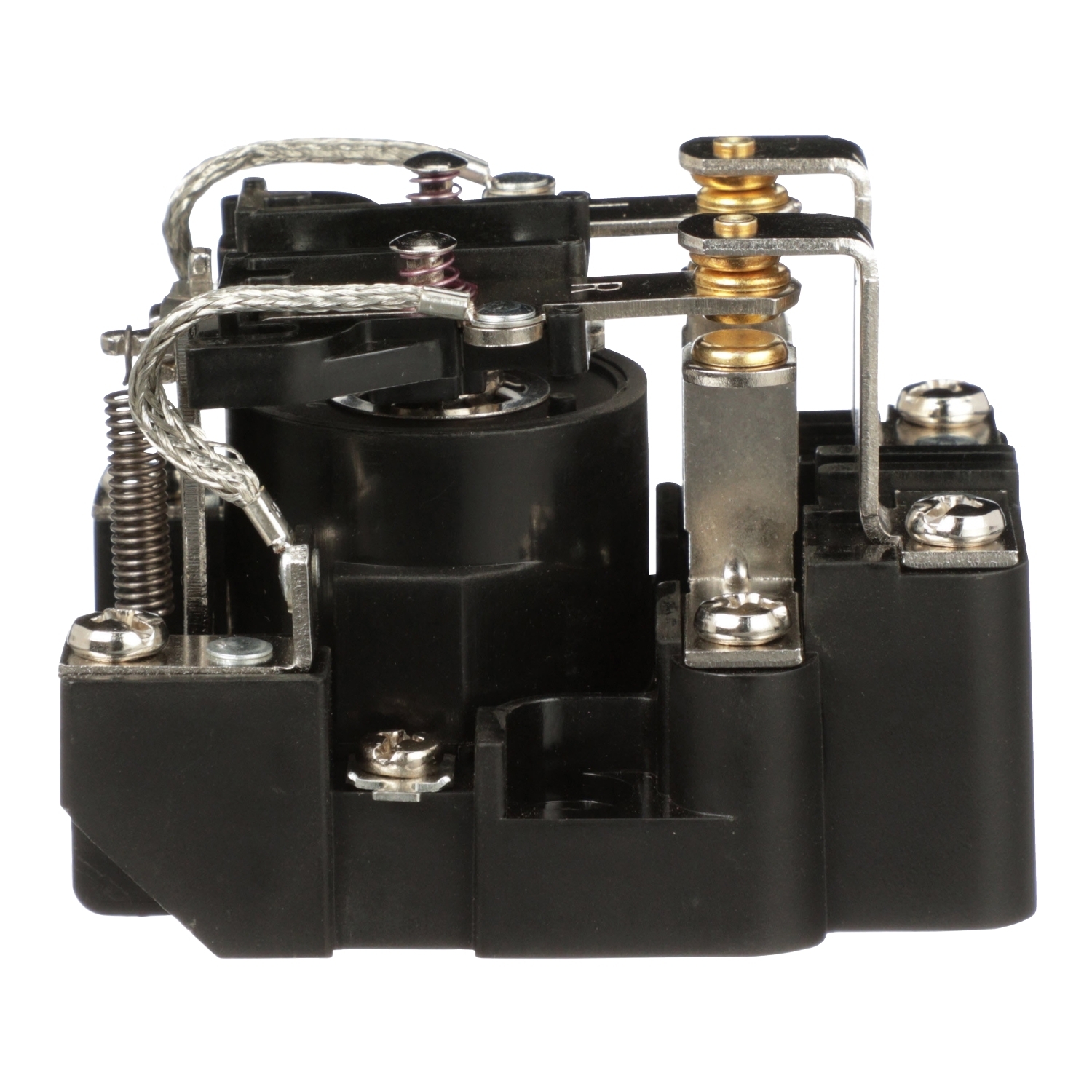

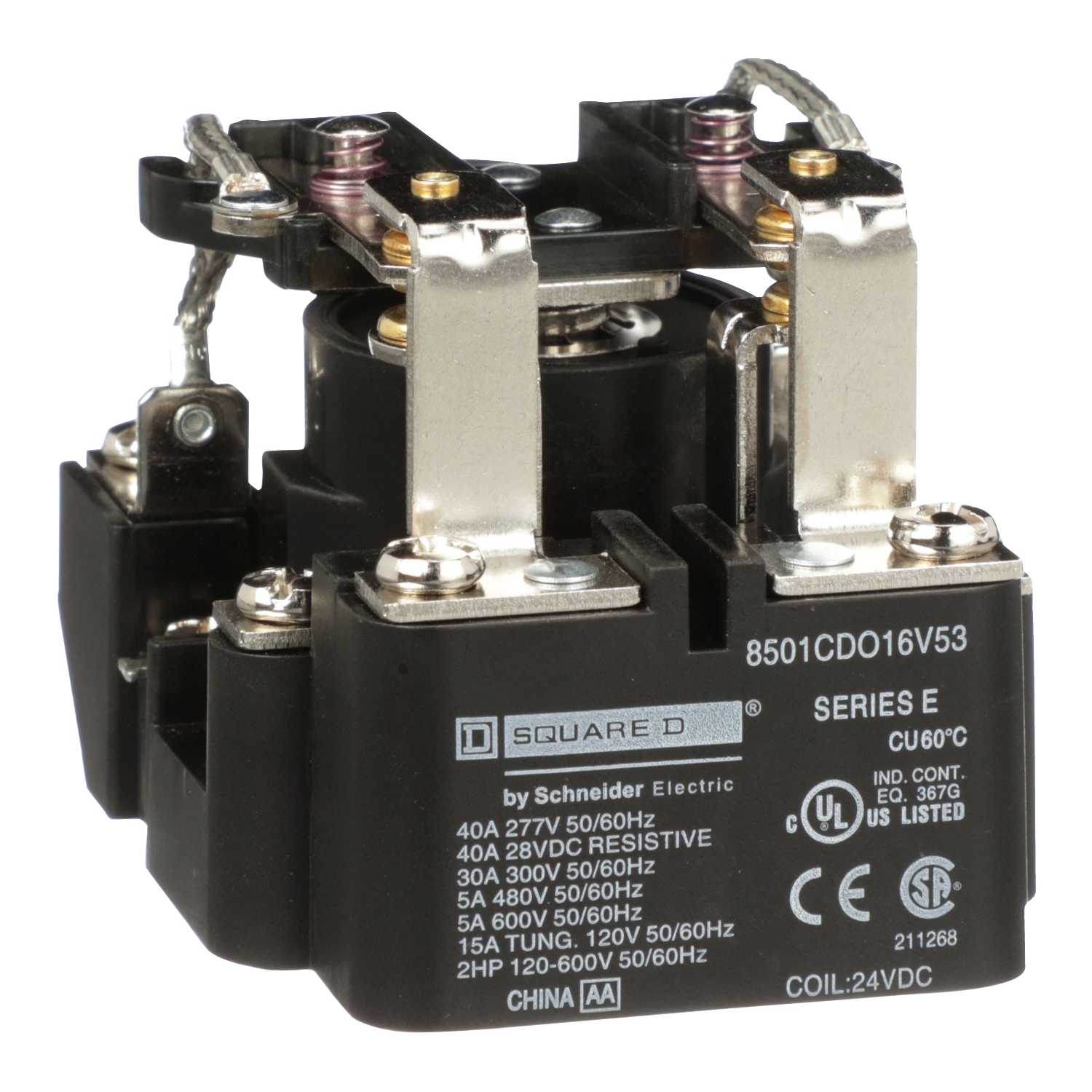

8501CDO16V53 General Purpose Type C Power Relay, 30 A, 2NO-2NC 2 Form C DPDT Contact, 24 V DC V Coil
- MFR:
- Schneider Electric
- MFR #:
- 8501CDO16V53
- UPC:
- 785901052197
- Item #:
- 118812
8501CDO16V53 General Purpose Type C Power Relay, 30 A, 2NO-2NC 2 Form C DPDT Contact, 24 V DC V Coil
- MFR #:
- 8501CDO16V53
- UPC:
- 785901052197
- Item #:
- 118812
8501C power relays are used to control small single phase motors and other light loads. These power relays are available with a variety of contact configurations. This relay has a DPDT contact configuration with two normally open and two normally closed contact. A variety of coil voltages are available. This relay has a 24 VDC nonreplaceable coil. Designed with heavy duty contacts that are rated for single phase 1.5 HP motors at 120 VAC, 230 VAC or 600 VAC. It also has a 30 A resistive rating at 300 VAC or 5 A resistive rating at 600 VAC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications.
Manuals & Documentation
| Catalog Number | 8501CDO16V53 |
| Manufacturer | Schneider Electric |
| Brand | Square D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=366671&lang=en-us |
| UPC | 785901052197 |
| GTIN | 00785901052197 |
