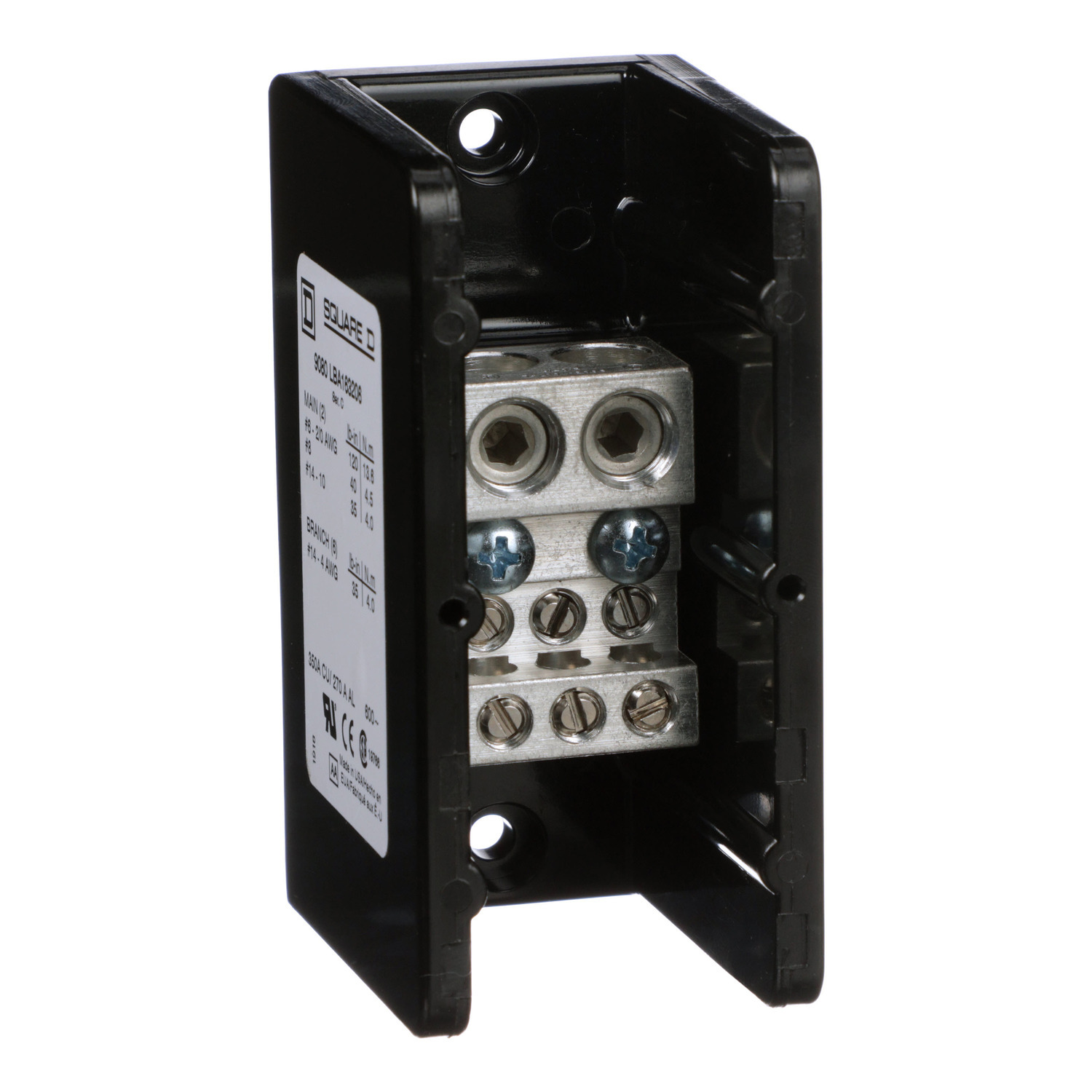

9080LBA163206 Linergy General Purpose Standard Power Distribution Block, 600 V AC/DC, 270/350 A, 1 Poles, (2) 14 to 2/0 AWG, (6) 14 to 4 AWG Wire, Phenolic
- MFR:
- Schneider Electric
- MFR #:
- 9080LBA163206
- UPC:
- 785901097334
- Item #:
- 118806
9080LBA163206 Linergy General Purpose Standard Power Distribution Block, 600 V AC/DC, 270/350 A, 1 Poles, (2) 14 to 2/0 AWG, (6) 14 to 4 AWG Wire, Phenolic
- MFR #:
- 9080LBA163206
- UPC:
- 785901097334
- Item #:
- 118806

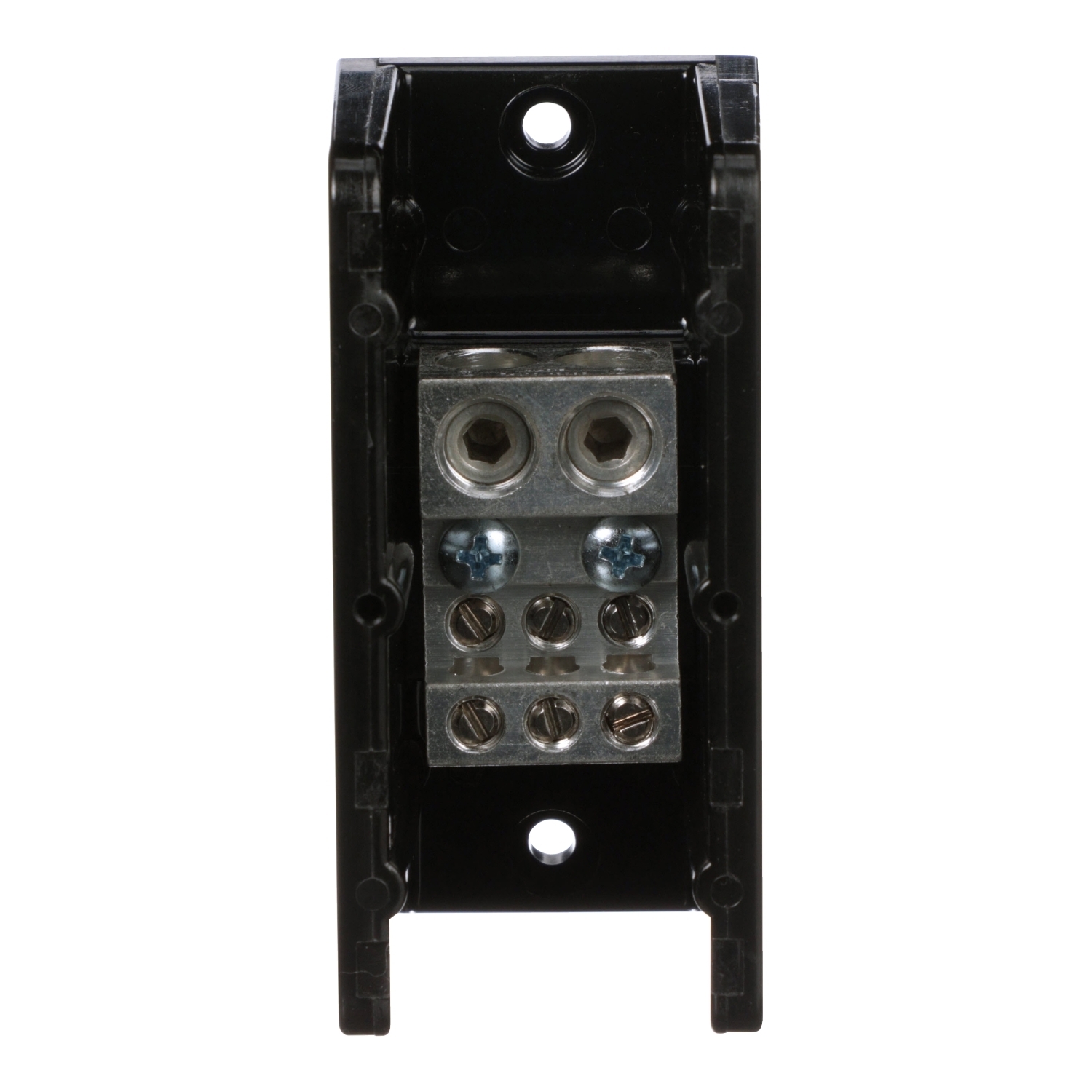

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This one pole block has two lug openings on the line (main) side and six lug openings on the load (branch) side. The line side lugs are rated to accept one #14 to 2/0 copper or aluminum wire. Each load side lug is rated to accept one #14 to #4 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 350 amperes with copper wire and 270 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.
Manuals & Documentation
| Catalog Number | 9080LBA163206 |
| Manufacturer | Schneider Electric |
| Brand | SQUARE D |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | United States |
| Made in USA | Yes |

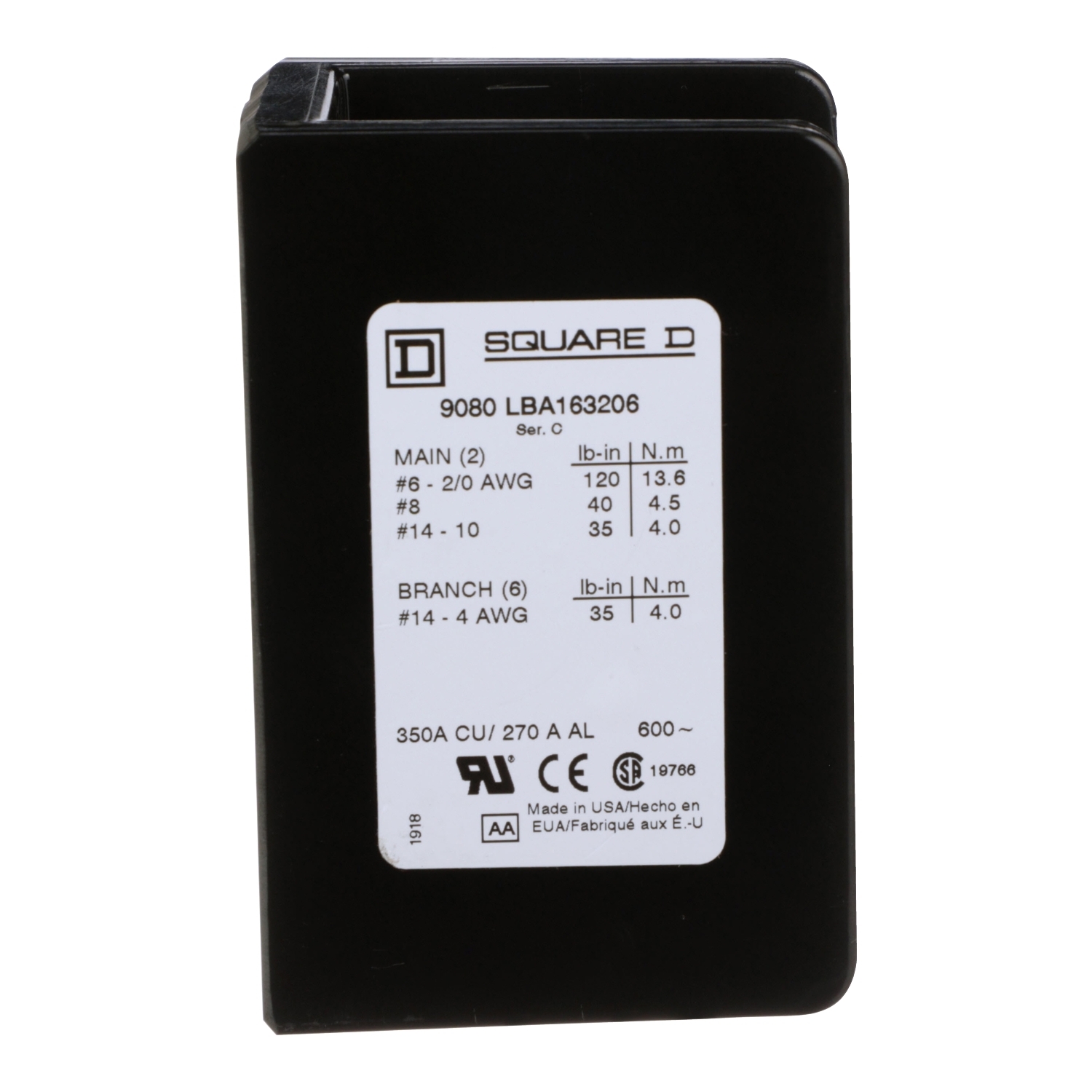

| Connection | Tin plated aluminium lugs;Line lug 40 lbf.in AWG 8 copper or aluminium;line lug 120 lbf.in AWG 6...AWG 2/0 copper or aluminium;line lug 35 lbf.in AWG 14...AWG 10 copper or aluminium;load lug 35 lbf.in AWG 14...AWG 4 copper or aluminium |
| Material | Phenolic: block |
| Mounting | Surface |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=372933&lang=en-us |
| UPC | 785901097334 |
| GTIN | 00785901097334 |
| Item Type | Power Distribution Block;9080LB31 |
| Width | 1.94 |
| Width UOM | Inch |
| Height | 4.0 |
| Height UOM | Inch |
| Depth | 2.61 IN |
