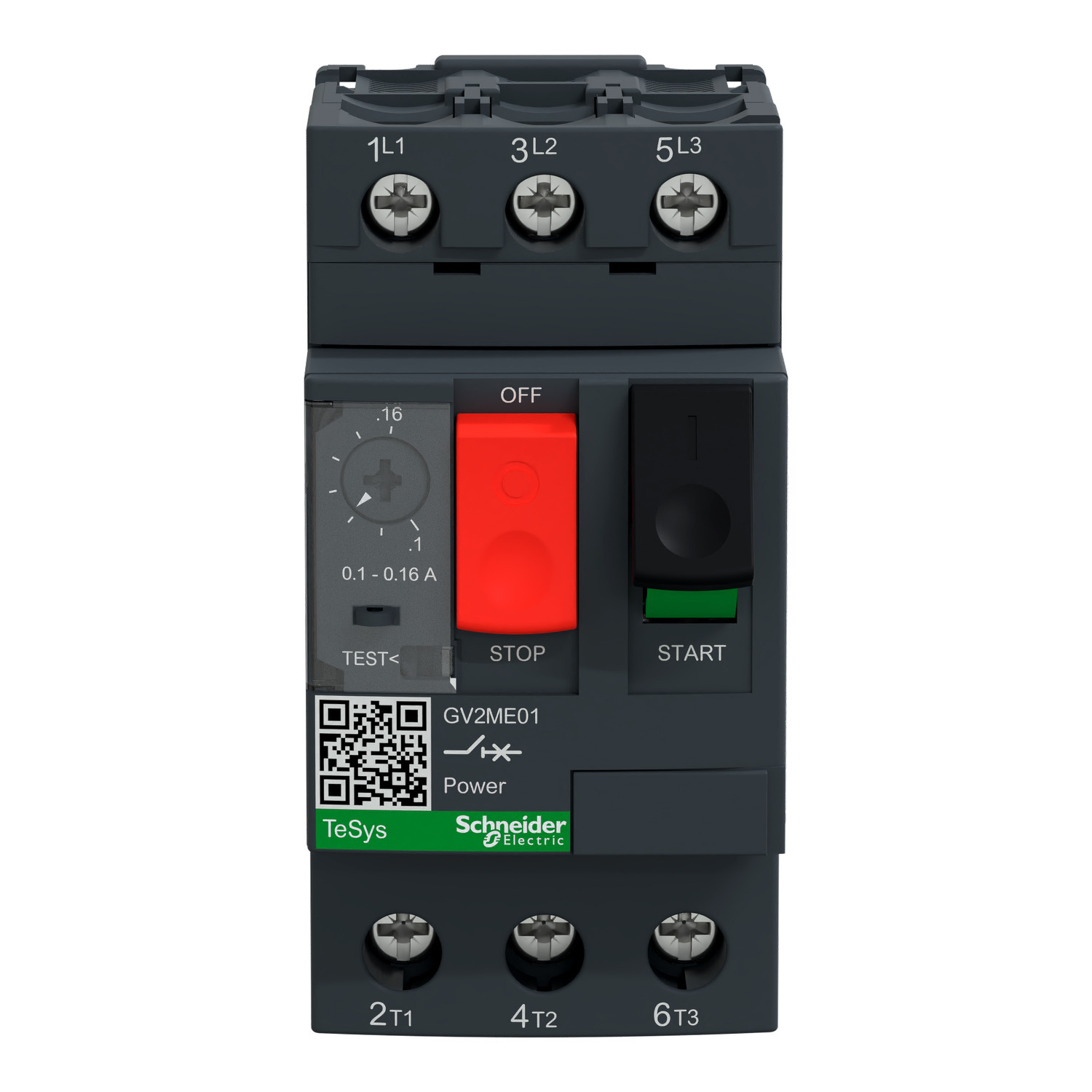

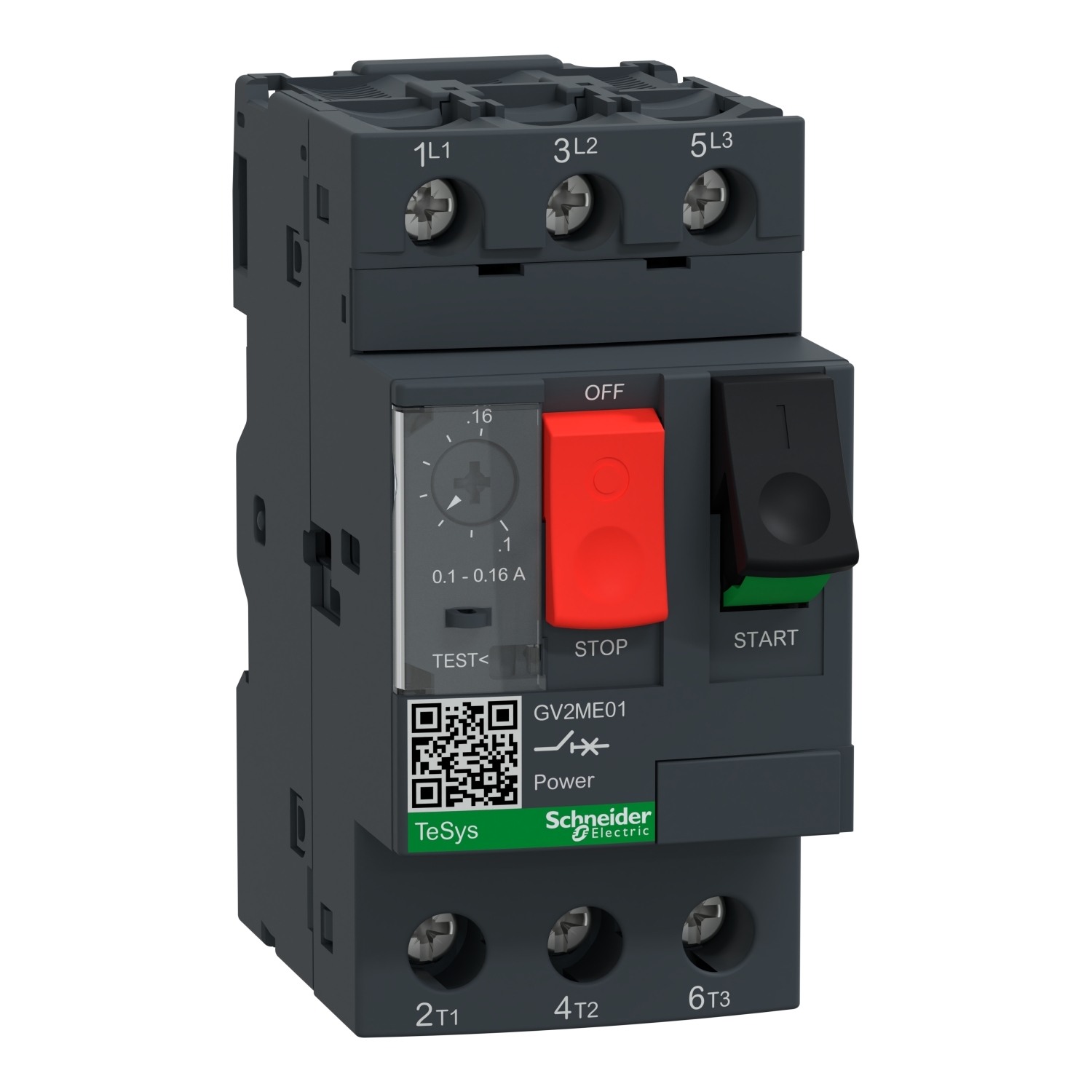

GV2ME01 TeSys Circuit Breaker Thermal Magnetic Manual Motor Starter With Thermal Magnetic Circuit Protector, 3 Poles, IP20 Enclosure
- MFR:
- Schneider Electric
- MFR #:
- GV2ME01
- Item #:
- 118705
GV2ME01 TeSys Circuit Breaker Thermal Magnetic Manual Motor Starter With Thermal Magnetic Circuit Protector, 3 Poles, IP20 Enclosure
- MFR #:
- GV2ME01
- Item #:
- 118705
TeSys GV motor circuit breaker, 3 poles (3P), 0.16A/690V, for 3-phase motor applications less than 0.06kW@400V. It provides a thermal-magnetic protection with a thermal setting range 0.1-0.16A, magnetic tripping at 9xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
Manuals & Documentation
| Catalog Number | GV2ME01 |
| Manufacturer | Schneider Electric |
| Brand | SCHNEIDER ELECTRIC |
| Warranty Description | Contractual Warranty:18 months |
| Country of Origin | Thailand |
| Made in USA | No |
| Color | Dark Gray |
| RoHS URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=607270&lang=en-us |
| GTIN | 03389110342925 |
