Legrand-Pass & Seymour

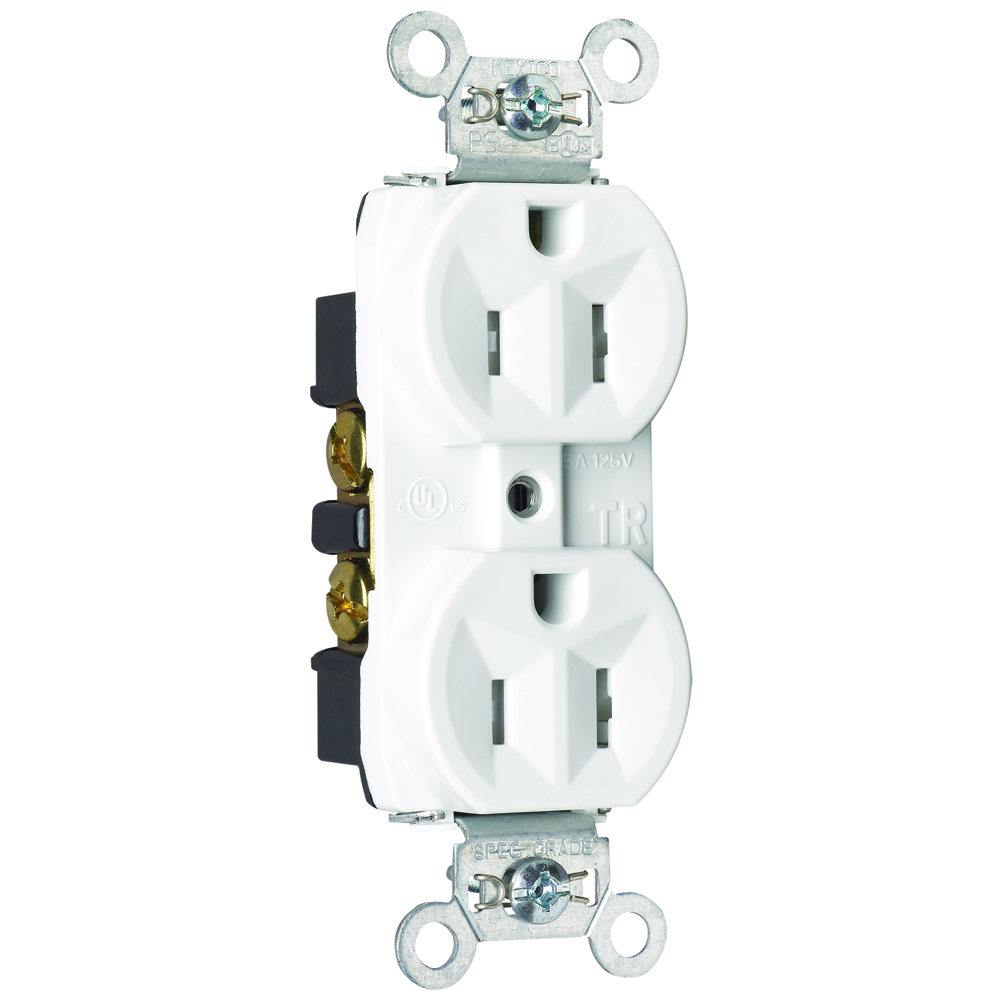

TR5262W 15 Amp 125V Construction Spec-Grade Duplex Receptacle, Back and Side Wire, White

MFR:
Legrand-Pass & Seymour
MFR #:
TR5262W
UPC:
785007243703
Item #:
117942

Tamper-Resistant Hard Use Spec Grade Receptacle, Back and Side Wire, 15A, 125V

Catalog Number TR5262W
Manufacturer Legrand-Pass & Seymour
Brand Legrand-Pass & Seymour
Warranty Description 1-Year Limited Warranty
Country of Origin Mexico
Made in USA No
Amperage Rating 15
Application Commercial
Color White
Connection Back and side wire
Material Nylon
Mounting Wall
NEMA Rating 5
Number of Poles 2
Number of Wires 3
Special Features Dual mechanical shutter system to help prevent insertion of foreign objects. Auto-ground clip assures positive ground. Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring. Backed-out tri-drive brass terminal screws for faster installation. Internal screw-pressure-plate back and side wire capability. Two back wire holes for additional wiring flexibility. Corrosion-resistant plated steel strap is locked in to face and back body to resist pulling away from the face/body assembly. .032 inch thick brass triple-wipe power contacts. Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest.
Standard UL498, CSA C22.2 No. 42
UPC 785007243703
GTIN 00785007243703
Item Type Tamper-Resistant Spec Grade Receptacle, Hard Use
Size 1.322 L x 1.130 W x 3.281 H
Temperature Rating -40° - 60° C
Voltage Rating 125
Wire Size 14 - 10 AWG
