SQUARE D

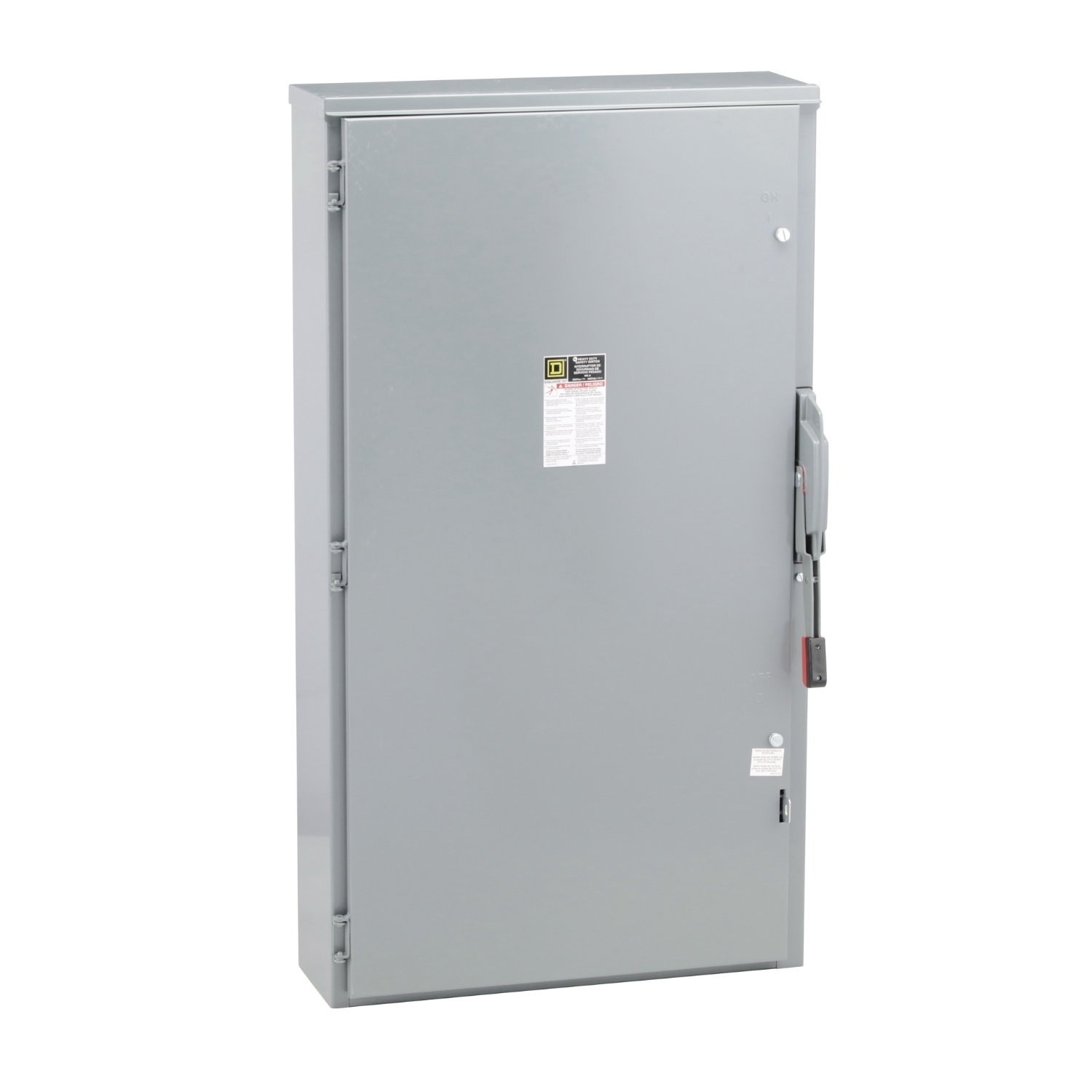

HU365R Heavy Duty Iceproof Non-Fusible Rainproof Sleetproof Safety Switch, 600 V AC/DC, 400 A, 350 hp, 3 Poles

MFR:
Schneider Electric
MFR #:
HU365R
UPC:
785901450481
Item #:
117822

The Square D by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 400A and is UL listed with a NEMA 1 rating of protection. This 3-pole switch has operational voltage ratings of 600VAC/DC. The enclosure is made of steel and has no neutral installed. This non-fusible disconnect has a short circuit current rating of 200kA. This safety switch is surface mounted. This switch comes with an 18 months warranty.

Manuals & Documentation
Catalog Number HU365R
Manufacturer Schneider Electric
Brand SQUARE D
Warranty Description Contractual Warranty:18 months
Country of Origin Mexico
Made in USA No
Phase 3
RoHS URL https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=365583&lang=en-us
UPC 785901450481
GTIN 00785901450481
Width 27.88
Width UOM Inch
Height 50.31
Height UOM Inch
Depth 10.13 IN
